LMI Gocator 3000

Snapshot sensor designed for 3D inspection of indexed or stationary parts

Single "Snapshot" scan sensors that use structured light for full-field inspection of stationary objects. The smart 3D sensors feature a compact, industrial housing ideal for industrial applications. The structured blue light and stereo scanning technology provide reliable and repeatable data thanks to high ambient light immunity even in challenging lighting conditions. By capturing 3D clouds of points the system is capable of high resolution measurement in many non-contact online inspection applications using built-in measurement tools.

Introducing the LMI Gocator 3110 3D smart snapshot sensor

Measuring parts & recognizing braille with the 3D stereo snapshot sensor LMI Gocator 3100

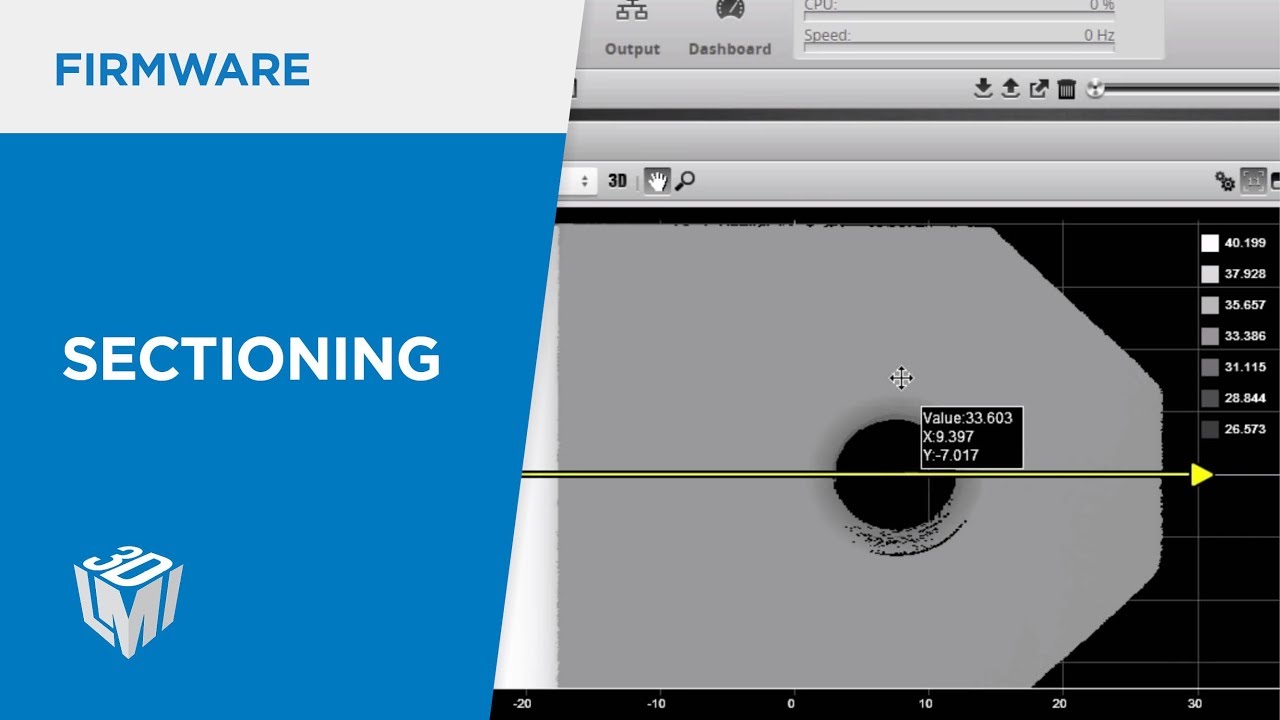

LMI: Introducing Sectioning in Gocator Firmware 4.4

New HD 3D Data Visualizer in Gocator Firmware 5.0

Multi-Sensor Ring-Layout in Gocator 5.0 Firmware

6 Degrees of Freedom Alignment Options in Gocator Firmware 5.0

Reasons to choose the LMI Gocator 3000 series

Open all | Close all

High accuracy

The sensor’s 2/5-megapixel stereo camera provides accurate, full-area measurements suited for analyzing many features at once with a single exposure. With snapshot sensors, the target is stationary during acquisition effectively minimising the cost of expensive motion system components (such as encoders) and the associated errors due to vibration.

Industrial projector for long lifetime

The sensor’s LED light source makes it easier to work with than lasers. The bright LED and industrial design provide shorter exposures so you get measurements faster with an expected lifetime of up to 10 years of continuous operation.

Specifications

Scan rate: up to 5 Hz
Interface: Gigabit Ethernet
Built-in web server supports any computer and operating system
Built-in 3D measurement tools: 3D feature tools: openings (holes, slots), cylinders, studs (threaded and non-threaded), plane / 3D volumetric tools: volumes, areas, bounding boxes, positions (min, max, centroid), ellipses, orientations
Inputs: differential encoder, light / laser safety enable, trigger
Outputs: 2 x digital output, RS485 serial (115 kbaud), 1 x analogue output (4 - 20 mA)
Input voltage (power): +24 to +48 VDC (25 watts), ripple +/- 10 %
Housing: gasketed aluminium enclosure with IP67 rating
Weight: > 1.5 kg
Operating temperature: 0 to 50° C
Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours per direction
Shock resistance: 15 g, half sine wave, 11 ms, positive and negative for X, Y and Z directions

COMPLETE INLINE 3D INSPECTION

FOR INDEXED PARTS

Single "Snapshot" scan sensors that use structured light for full-field inspection of stationary objects

The smart 3D sensors feature a compact, industrial housing ideal for industrial applications. The structured blue light and stereo scanning technology provides reliable and repeatable data thanks to high ambient light immunity even in challenging lighting conditions. By capturing 3D clouds of points the system is capable of high resolution measurement in many non-contact online inspection applications using built-in measurement tools.

Setup is intuitive with easy integration via GigE interface. The built-in web server provides direct setup of all profile parameter and measurement tools on the sensor. Once you've set it up, the system operates as a standalone single sensor application without additional controller or PC.

The emulator software can be stored on your PC, which provides an exact duplicate of the Gocator interface.

Measurements can be performed on pre-recorded data, offline, in a web browser-based "virtual sensor" environment - so the sensor doesn't need to be connected. The data from the gocator can be downloaded for manipulation without disrupting the online inspection. Once complete, the information can then be saved and uploaded to the sensor.

The Gocators do not require a PC to operate, but if required, their processing power can be used as an extra resource. The GoX Sensor Accelerator can help decrease cycle times by offloading data processing to a PC for added processing speed and memory capacity. The gocator interface still remains the same with set-up via the web browser interface.

Markets & applications

Dimensional measurement of features such as holes, slots, studs, gap and flush

Specifications

Scan rate: up to 5 Hz
Interface: Gigabit Ethernet
Built-in 3D measurement tools:
- 3D feature tools: openings (holes, slots), cylinders, studs (threaded and non-threaded), plane
- 3D volumetric tools: volumes, areas, bounding boxes, positions (min, max, centroid), ellipses, orientations
Inputs: differential encoder, light / laser safety enable, trigger
Outputs: 2 x digital output, RS485 Serial (115 kbaud), 1 x analogue output (4 - 20 mA)
Input voltage (power): +24 to +48 VDC (25 Watts), RIPPLE +/- 10 %
Housing: Gasketed aluminium enclosure with IP67 rating
Built-in web server supports any computer and operating system
Weight: > 1.5 kg
Operating temperature: 0 to 50° C
Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours per direction
Shock resistance: 15 g, half sine wave, 11 ms, positive and negative for X, Y and Z directions

Show products

Models

LMI GOCATOR 3210

All-In-One 3D Smart Snapshot Sensor

Capture 3D Point Clouds in a single snapshot without part movement
Stereo camera sensor (2 ...

LMI GOCATOR 3504 New model

All-In-One 3D Smart Snapshot Sensor

Capture 3D Point Clouds in a single snapshot without part movement
Stereo camera sensor (2 ...

LMI GOCATOR 3506

All-In-One 3D Smart Snapshot Sensor

Capture 3D Point Clouds in a single snapshot without part movement
Stereo camera sensor (2 ...

Cabling accessories

LMI GOCATOR ETHERN CORDSET 10M ANG

Power and Ethernet cordset for all families

M16 connector to 1x open ends, 1x standard RJ45
Length: 10 m
Exit ...

LMI GOCATOR ETHERN CORDSET 20M ANG

Power and Ethernet cordset for all families

M16 connector to 1x open ends, 1x standard RJ45
Length: 20 m
Exit ...

LMI GOCATOR ETHERN CORDSET 25M ANG

Power and Ethernet cordset for all families

M16 connector to 1x open ends, 1x standard RJ45
Length: 25 m
Exit ...

LMI GOCATOR ETHERN CORDSET 2M ANG

Power and Ethernet cordset for all families

M16 connector to 1x open ends, 1x standard RJ45
Length: 2 m
Exit ...

LMI GOCATOR I/O CORDSET 10M ANG

I/O Cordset for all families

M16 connector to open ends
10 m
Exit direction can be adapted in 90 ...

LMI GOCATOR I/O CORDSET 20M ANG

I/O Cordset for all families

M16 connector to open ends
20 m
Exit direction can be adapted in 90 ...

LMI GOCATOR I/O CORDSET 25M ANG

I/O Cordset for all families

M16 connector to open ends
25 m
Exit direction can be adapted in 90 ...

LMI GOCATOR I/O CORDSET 2M ANG

I/O Cordset for all families

M16 connector to open ends
2 m
Exit direction can be adapted in 90 ...

LMI GOCATOR MASTER CORDSET 10M ANG
