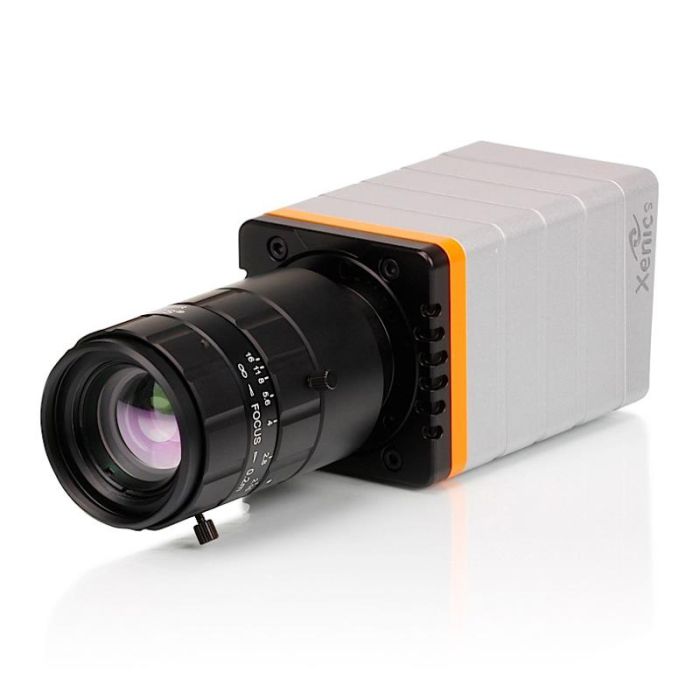

Xenics - Lynx
Compact uncooled shortwave infrared (SWIR) line scan camera
Key Features
- Spectral band 0.9–1.7 µm
- Resolution: up to 2048 pixels
- Line rate: 10 kHz or 40 kHz
- Pixel size: 12.5 µm or 25 µm
- Features: integration from 1µs to several minutes, integrate while read / integrate then read, snapshot acquisition
- I/O: trigger in and out, LVCMOS, free running or user selectable frame size
- Interface: GigE Vision, CameraLink
- Camera configuration: fully GenICam compliant; using Xenics Xeneth software or any SDK
- Operating temperature: -40°C to 55°C or -40°C to 70°C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Bit depth | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Interface configuration | Lens mount | Manufacturer | Max. line freq. (kHz) | Pixel size (µm) | Scan type | Sensor configuration | Wavelength range | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 49 | 49 | 62 | 512 | Gigabit Ethernet | 1 GigE | C-Mount | Xenics | 40 | 25 | line | Single line | Monochrome; SWIR | N/A | |
| 14 | 49 | 49 | 62 | 1024 | Gigabit Ethernet | 1 GigE | C-Mount | Xenics | 40 | 12.5 | line | Single line | Monochrome; SWIR | N/A | |
| 14 | 49 | 49 | 62 | 2048 | Gigabit Ethernet | 1 GigE | C-Mount | Xenics | 10 | 12.5 | line | Single line | Monochrome; SWIR | N/A | |
| 14 | 49 | 49 | 62 | 512 | CameraLink | CameraLink Base | C-Mount | Xenics | 40 | 25 | line | Single line | Monochrome; SWIR | N/A | |
| 14 | 49 | 49 | 62 | 1024 | CameraLink | CameraLink Base | C-Mount | Xenics | 40 | 12.5 | line | Single line | Monochrome; SWIR | N/A | |
| 14 | 49 | 49 | 62 | 2048 | CameraLink | CameraLink Base | C-Mount | Xenics | 10 | 12.5 | line | Single line | Monochrome; SWIR | N/A |
