CCS HLDR3-100IR-DF-W
SKU#:
53171

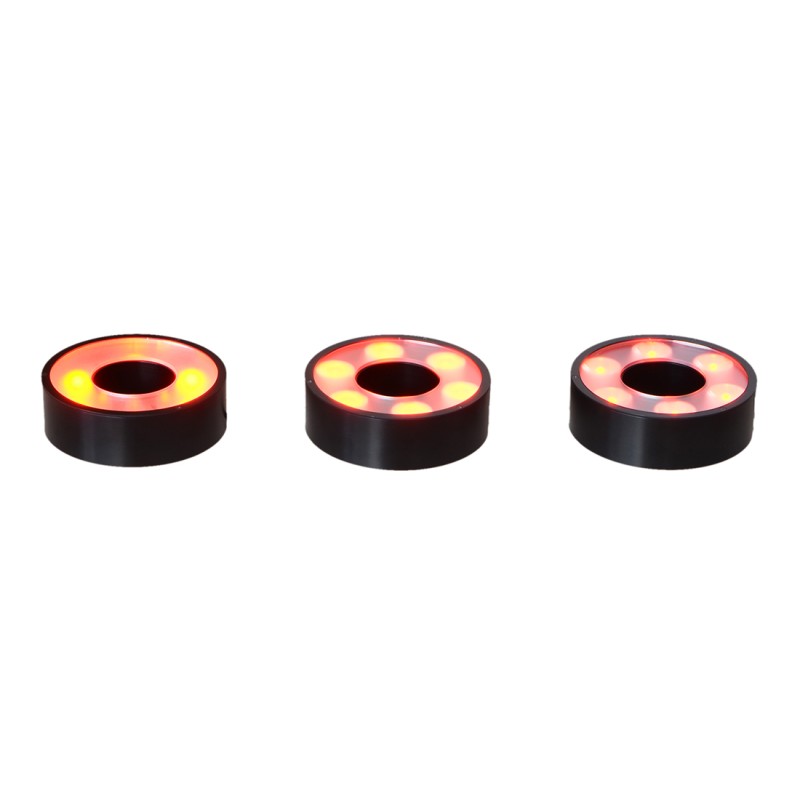

High power LED ring lights for long-distance and wide-area irradiation
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
CCS - HLDR3
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Beam angle | wide |
| Certificates | CE, WEEE |
| Dominant wavelength (nm) | 860 |
| Emitting surface inner diameter (mm) | 44 |
| Emitting surface outer diameter (mm) | 90 |
| Emitting surface width (mm) | N/A |
| Input current (mA) | 650 |
| LED risk group | 0 (exempt) |
| Light colour | IR |
| Light distribution | direct |
| Lighting geometry | ring light |
| Lighting technique | frontlight |
| Mechanical depth (mm) | 31 |
| Mechanical inner diameter (mm) | 44 |
| Mechanical outer diameter (mm) | 100 |
| Power consumption (W) | 15 |
| Power supply voltage (VDC) | 24 |
| Smart | no |
| Supply mechanism | Voltage |
| Weight (kg) | 0.340 |
- Light colour: Red, White, Blue, IR (860 nm)
- Beam angles: narrow (+/- 8°), medium (+/-20°), wide (+/40°)
- Dimensions: outer diameter 100 mm, inner diameter 44 mm, height 31 mm
- Input voltage: 24 V
- Power consumption: 15 W
- Recommended working distance: up to 2 m (depending on beam angle)
- Can be connected to a lighting controller via standard FCB cable but also via FRCB robot cable
- Suitable for continuous and strobe operation
