CCS LFXV-150SW-M12
Flat, coaxial dome lights with a clear field of view
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
CCS - LFXVErrors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Beam angle | not specified |
| Connectors | M12 4-pin A-coded |
| Correlated colour temperature (K) | 5500 |
| Dominant wavelength (nm) | N/A |
| Emitting surface height (mm) | 150 |
| Emitting surface inner diameter (mm) | N/A |
| Emitting surface outer diameter (mm) | N/A |
| Emitting surface width (mm) | 150 |
| Intensity control method | N/A |
| LED risk group | 0 (exempt) |
| Light colour | White |
| Light distribution | diffused |
| Lighting geometry | area light (panels), coaxial illumination, dome illumination |
| Lighting technique | frontlight |
| Mechanical depth (mm) | 16 |
| Mechanical height (mm) | 193 |
| Mechanical width (mm) | 193 |
| Power consumption (W) | 30 |
| Power supply voltage (VDC) | 24 |
| Smart | no |
| Supply mechanism | Voltage |
| Weight (kg) | 0.870 |

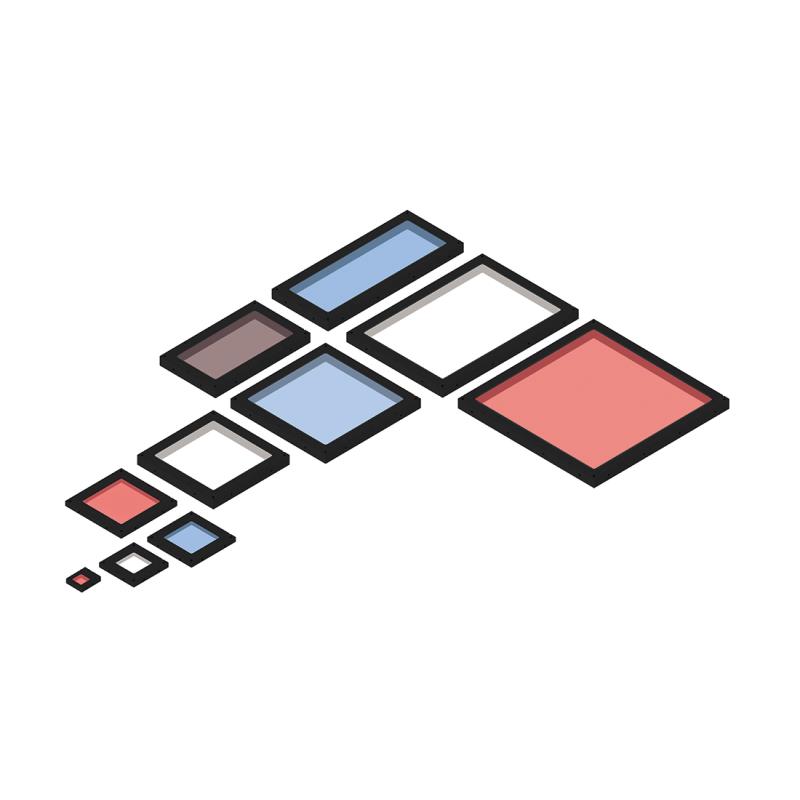

- Colour: red, white, blue and infrared (860 nm)
- Outer dimensions: ranging from 43 x 52 x 10 (W x D x H in mm) up to 343 x 343 x 16 (W x D x H in mm)
- Light emitting surface: ranging from 25 mm x 25 mm up to 300 mm x 300 mm
-
Can be used as coaxial or dome lighting depending on the working distance
-
This lighting solution is available as a custom-made design through our collaboration between STEMMER IMAGING and CCS Inc., combining advanced illumination technology with expert machine vision engineering.
- Custom-engineered in every aspect—wavelengths, beam patterns, form factors, and interfaces—while maintaining CCS's quality standards
-
Efficient design-to-manufacture process with short lead times, delivering high-performance solutions without compromise
-
Optional IP67 compliant custom light versions
