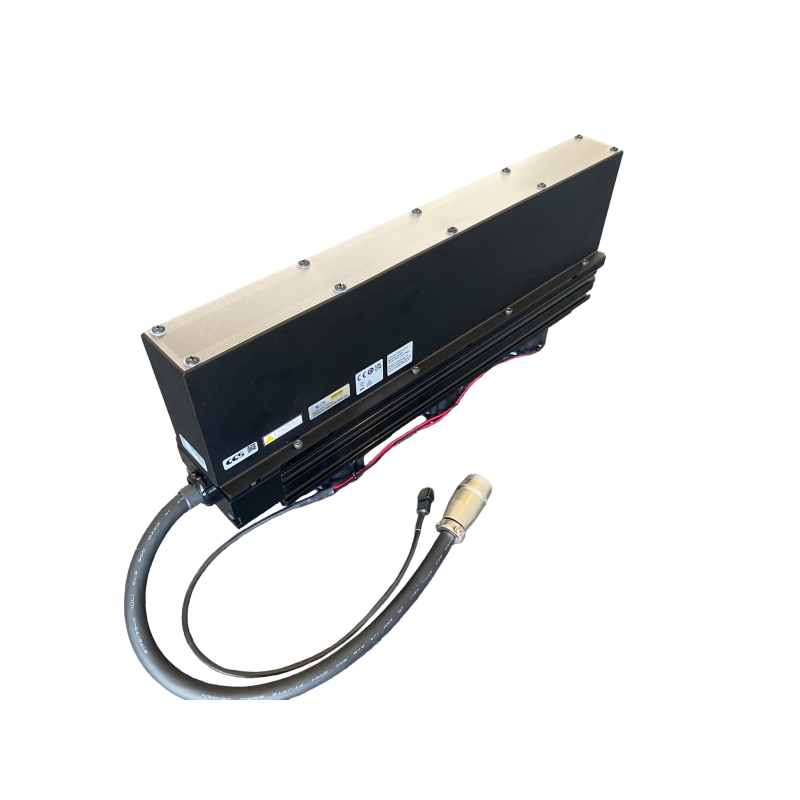

CCS LNSP-334IR165IR98DSFN
SKU#:
65016
Highly uniform SWIR illumination for hyperspectral inspection.
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
CCS - LNSP Hyperspectral
List Price
Your Discount
Your Price
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Lighting technique | frontlight |
| Lighting geometry | line light |
| Light colour | SWIR |
| Emitting surface width (mm) | 334 |
| Emitting surface outer diameter (mm) | N/A |
| Emitting surface inner diameter (mm) | N/A |
| Smart | no |
| Certificates | REACH, RoHS |
| Dominant wavelength (nm) | 900, 1700 |
| Emitting surface height (mm) | 23 |
| Manufacturer | CCS |
| Mechanical depth (mm) | 169 |
| Mechanical height (mm) | 380 |
| Mechanical width (mm) | 62 |
| Power consumption (W) | 233 |
| Power supply voltage (VDC) | 24 |
| Supply mechanism | Voltage |
| Weight (kg) | 2.800 |
- Wavelength Band: 900 to 1700 nm
- Application focus: SWIR and hyperspectral imaging
- LED: Longer life, lower radiant (vs. HalogenLamp)
- Input voltage: DC 24 V max.
- Power consumption: 233 W max.
- Current consumption: 9.6 A max.
- Weight: approx. 2.8 kg
- Built-to-order, customizable light
