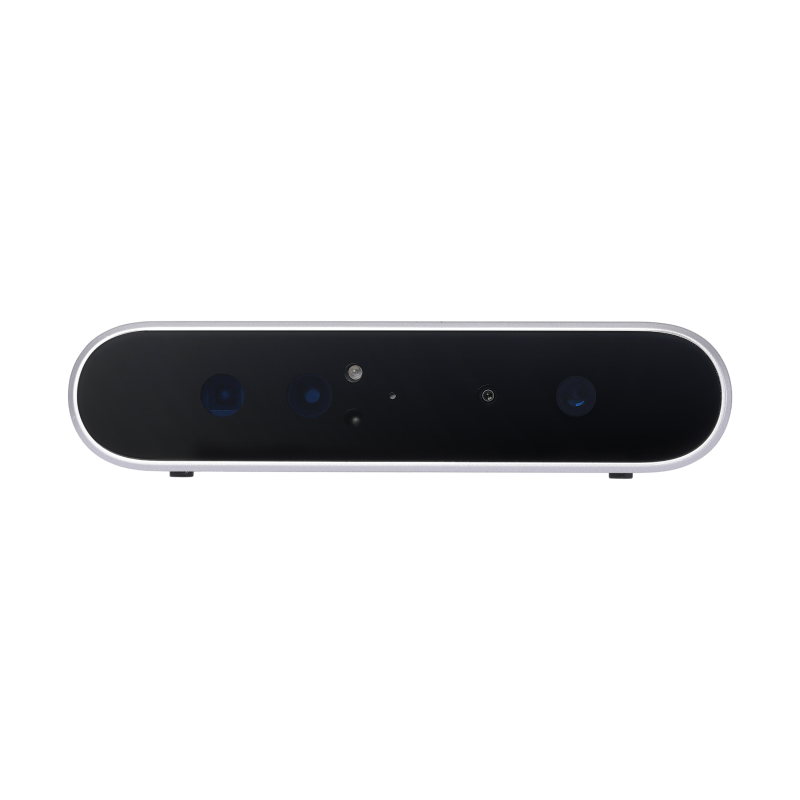

CVC ASTRA 2
SKU#:
62289
Precise 3D Imaging in Real Time
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Astra - Structured Light
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Connector a: video | USB - Type-C - (V) - Female |
| Dimension (depth, mm) | 35.79 |
| Dimension (height, mm) | 34.61 |
| Dimension (width, mm) | 144.54 |
| FoV (Field of View) | 58.2° x 45.2° |
| Resolution Horizontal (Px) | 1920 |
| Laser Class | 1 |
| LED risk group | 2 |
| Lens mount | Integrated Lens |
| Note 1 | FOV 58.2° x 45.2° |
| Power consumption (W) | 3 |
| Scan Rate (Hz) | 30 |
| Scan type | structured light |
| Resolution Vertical (Px) | 1080 |
| Weight (kg) | 0.195 |
| Working distance (mm) | 600.00 - 8000.00 |
| X resolution (mm) | N/A |
| Z resolution (mm) | N/A |
- High-precision depth data 0.25m to 8m
- Up to 30fps at 1600×1200 resolution
- Custom ASIC processing
- Active cooling options
- USB 2.0/3.0 connectivity
Key Applications: * Facial recognition * Gesture tracking * 3D measurement systems * AR/VR applications * Embedded vision solutions for consumer electronics
