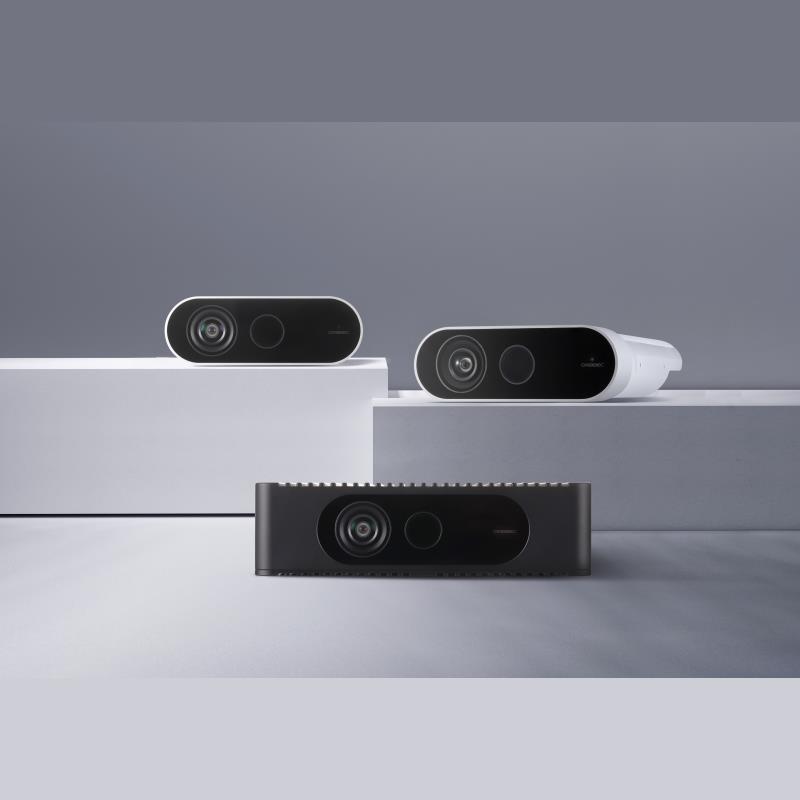

CVC FEMTO MEGA
SKU#:
62293
Advanced Depth Sensing with Time-of-Flight Technology
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Femto - Time-of-Flight
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Dimension (depth, mm) | 145 |
| Dimension (height, mm) | 40 |
| Dimension (width, mm) | 115 |
| FoV (Field of View) | 120° x 120° |
| Laser Class | 1 |
| LED risk group | 2 |
| Lens mount | Integrated Lens |
| Scan Rate (Hz) | 30 |
| Scan type | Time-of-Flight |
| Weight (kg) | 0.560 |
| Working distance (mm) | 250.00 - 2210.00 |
| X resolution (mm) | N/A |
| Z resolution (mm) | N/A |
- Up to 120° FOV horizontal and vertical
- 1 Megapixel ToF sensor
- 4K RGB with HDR capability
- IP65 protection (industrial models)
- PoE and USB connectivity
Key Applications: * Healthcare diagnostics * Manufacturing quality control * Logistics automation * AI-powered computer vision systems requiring precise 3D measurements
