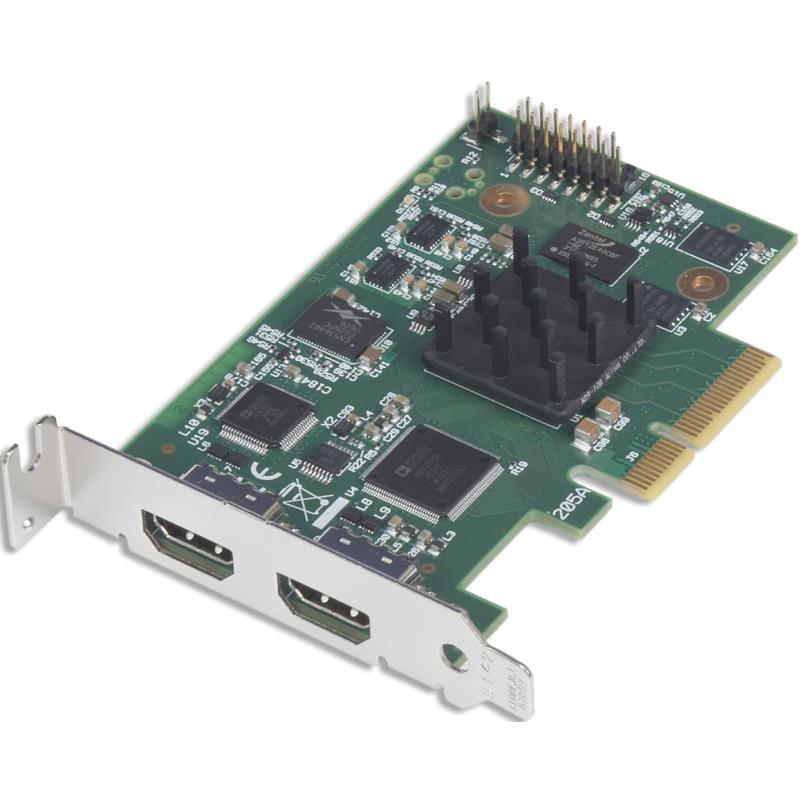

DATAPATH VISION-LC-HD2
SKU#:
34988
Cost-effective digital "live stream" capture cards
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Datapath - VisionLC
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Certificates | CE, RoHS |
| Connectors | 2* HDMI |
| Design (plug-in card/box) | Plug-in card |
| Dimensions (LxH, mm) | 103 x 64 |
| Inputs | Dual HDMI |
| Interface/Standard | HDMI |
| I/Os | no |
| Number of cameras (max) | 2 |
| Onboard processing | yes |
| Operating system | Linux, Windows |
| Operating temperature (°C) | 0 - 35 |
| PC: Internal Expansion Bus | PCIe x4 (Gen2) |
| Pixel clock (MHz) | 297 |
| Power over data interface | no |
| Programmable | no |
| Signal | digital |
- Channels: multi-channel HDMI and SDI video capture cards
- Bandwidth: up to 1.6 GB/s
- Resolution: up to 3840 x 2160 pixels @ 60 Hz
- Features: high performance up and down scaling, colour space conversion, low-latency, automatic signal detection, small form factor, cost-effective
- Audio: stereo pair PCM audio via each HDMI channel at 16 bits in depth
- PC interface: PCI Express x4
- Operating system: Windows XP up to Windows 10, Linux
- Software: Datapath unified Windows and Linux driver support
