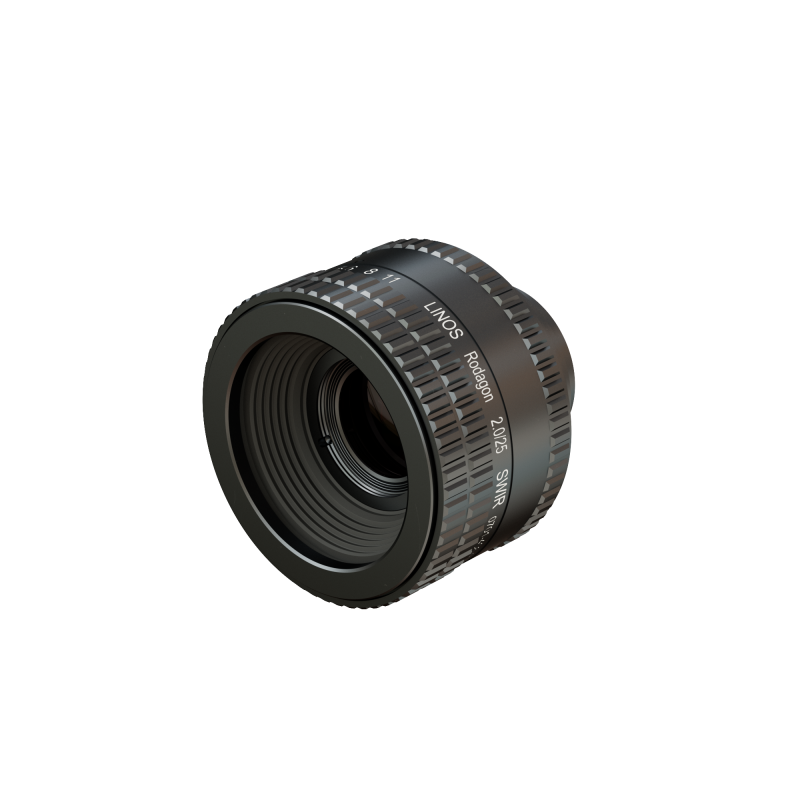

EXCELITAS RODAGON 2.0/25 SWIR
SKU#:
65195
High-contrast SWIR imaging with stable focus from 840-1900 nm.
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Excelitas - Rodagon SWIR
List Price
Your Discount
Your Price
€1,113.00
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Focal length (mm) | 25 |
| Sensor format | 1.1" |
| Sensor size diagonal (mm) | 18 |
| Camera mount (optics) | M32.5 x 0.5 |
| Min. pixel size | 5 µm |
| Aperture | F 2 |
| M.O.D. (mm) | 247 |
| Wavelength range | SWIR |
| Diameter (mm) | 40.5 |
| Filter thread | M30.5 x 0.5 |
| Length (mm) | 36.2 |
| Magnification (max) | 0.050 |
| Manufacturer | Excelitas |
| Resolution | N/A |
- Sensor size: up to 1.1"
- Image Circle: 18 mm
- Focal length: 25 mm @ 1400 nm
- Aperture: F2.0
- Aperture range: F2.0 to F11
- Aperture Control: Manual, lockable click-stop
- Wavelength Range: SWIR / NIR-SWIR, 840-1900 nm
- Focus Shift: No focus shift from 840-1900 nm
- Recommended Working Distance: 247 mm to Infinity
- Magnification optimized: 0.05x
- Recommended Magnification Range: 0.1x to 0.00x
- Interface: M32.5x0.5
- Filter size: M30.5x0.5
- Mechanical: Robust full-metal housing
- Length: 36.2 mm
- Diameter: 40.5 mm
- Weight: 70 g
- Working Temperature: 0°C to +50°C
- Storage Temperature: -25°C to +70°C
- Compatible with LINOS Modular Focus system
