GARDASOFT RT420-20
SKU#:
13398

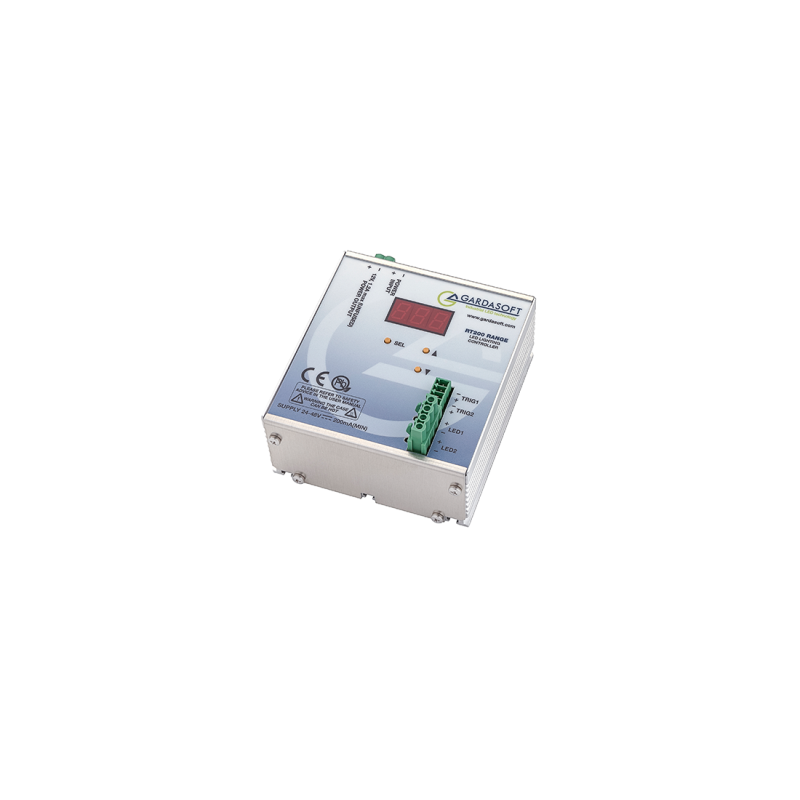

Programmable LED lighting controllers
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Gardasoft - RT
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Intensity control method | N/A |
| LED controller interface | Ethernet, GigE Vision |
| Max. output current - cont. mode (A) | 20 |
| Max. output current - pulsed mode (A) | 20 |
| Max. output power per channel (W) | 30 |
| Max. output power total (W) | 40 |
| Max. output voltage - cont. mode (VDC) | 46 |
| Max. output voltage - pulsed mode (VDC) | 46 |
| Max. trigger frequency (Hz) | 1000 |
| Min. pulse width (µs) | 20 |
| Number channels | 4 |
| Operating mode | continous mode, pulsed mode |
| Power supply voltage (VDC) | 48 |
| Protection mechanism | SafeSense |
| Triniti | no |
- Channels: 2, 4 or 8 independent output channels
- Pulse width: down to 1 µs (for the fast version)
- Max. output current: up to 20 A, continuous current up to 3 A
- Output voltage: 0 - 47 V
- Power: 30 W average per channel
- Power supply: 24 - 48 VDC
- Configuration: push-button, RS232 or Ethernet interface
- Mechanical: pluggable screw terminal (DIN rail mount)
- Miscellaneous: includes 12 V camera power with 1.4; SafeSense technology for safe LED overdriving; SafePower technology with reduced power lost
