LMI GOCATOR 2130-3R-REVD
SKU#:
39249

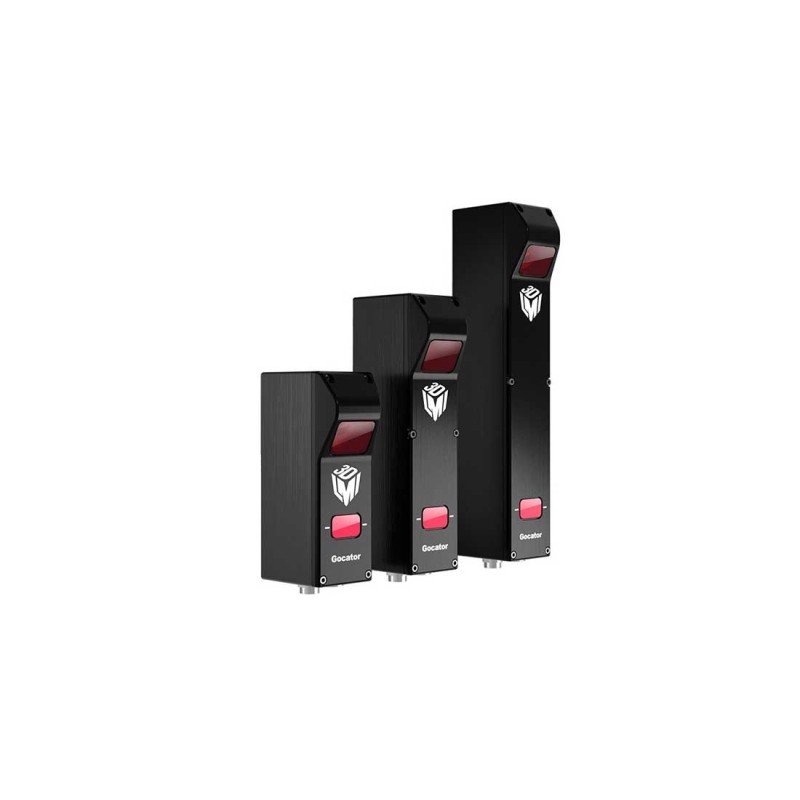

High-performance laser triangulation 3D smart profile sensors
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
LMI - Gocator 2100
List Price
Your Discount
Your Price
€5,980.00
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Working distance (mm) | 90.00 |
| FoV (Field of View) | 47 - 85 |
| Scan Rate (Hz) | 640 |
| X resolution (mm) | 0.088 - 0.150 |
| Z resolution (mm) | 0.006 - 0.014 |
| Scan type | laser triangulation |
| Laser Class | 3R - 660nm |
| Dimension (depth, mm) | 142 |
| Dimension (height, mm) | 75 |
| Dimension (width, mm) | 49 |
| Interface | Gigabit Ethernet |
| LED risk group | N/A |
| Weight (kg) | 0.740 |
- Interface: Gigabit Ethernet
- Inputs: differential encoder, laser safety enable, trigger
- Outputs: 2x digital output, RS-485 serial, selcom serial, 1x analogue output (4-20mA)
- Input voltage (power): +24 to +48 VDC (13 watts); ripple +/- 10%
- Housing: gasketed aluminium enclosure, IP67
- Operating temperature: 0 to 50 °C
- Software: browser-based GUI and open source SDK for configuration and real-time 3D visualisation.
