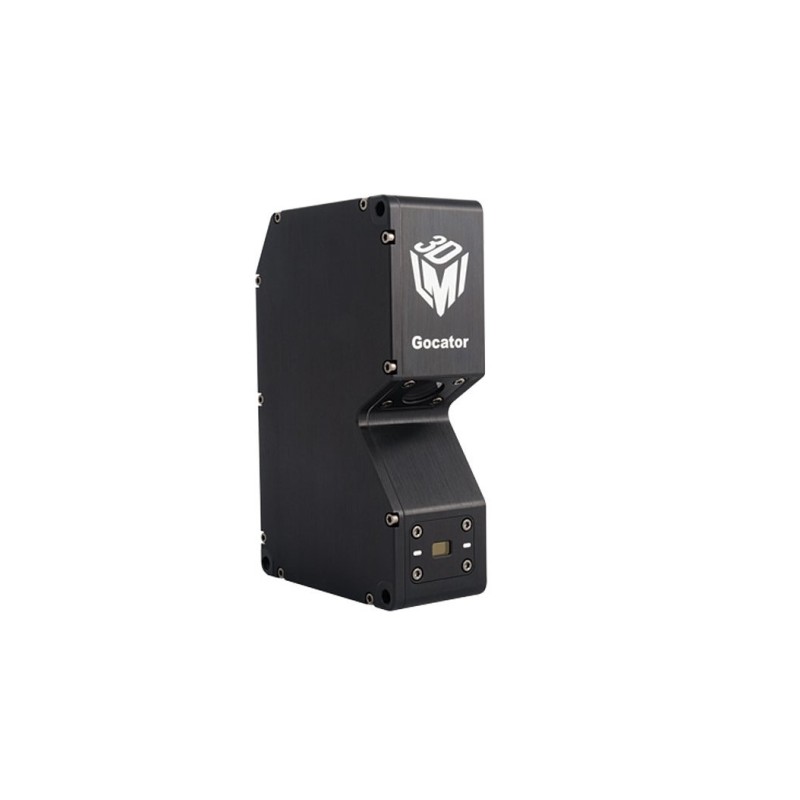

LMI GOCATOR 2410-3R
SKU#:
34033
Versatile laser triangulation 3D smart profile sensors
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
LMI - Gocator 2400
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Dimension (depth, mm) | 44 |
| Dimension (height, mm) | 145 |
| Dimension (width, mm) | 90 |
| FoV (Field of View) | 6 |
| Interface | Gigabit Ethernet |
| Interface configuration | 1 GigE |
| Laser Class | 3R - 405nm |
| LED risk group | N/A |
| Lens mount | None |
| Operating temperature (°C) | 0 - 50 |
| Scan Rate (Hz) | 1710 |
| Scan type | laser triangulation |
| Storage temperature (°C) | -30 - 70 |
| Weight (kg) | 0.880 |
| Working distance (mm) | 19.00 |
| X resolution (mm) | 0.0059 - 0.0062 |
| Z resolution (mm) | 0.0011 |
- Interface: Gigabit Ethernet
- Inputs: differential encoder, laser safety enable, trigger
- Outputs: 2x digital output, RS485 serial, selcom serial, 1x analogue output (4-20 mA)
- Input voltage (power): +24 to +48 VDC (13 watts); ripple +/- 10%
- Housing: gasketed aluminium enclosure, IP67
- Operating temperature: 0 to 50 °C
- Software: browser-based GUI and open source SDK for configuration and real-time 3D visualisation
