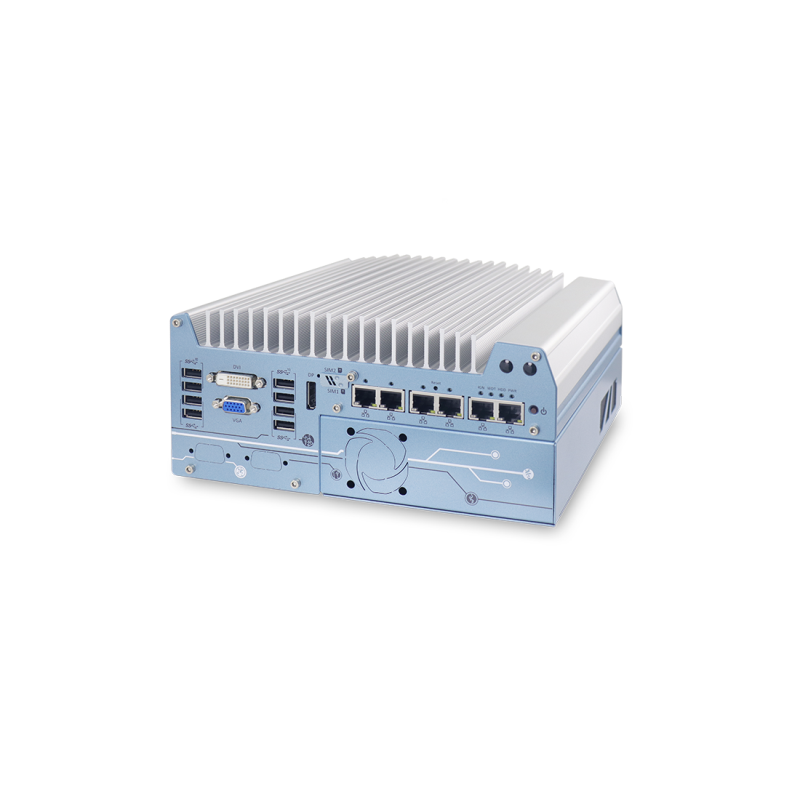

NEOUSYS NUVO-7006E-POE
SKU#:
46733
Fanless rugged embedded computer
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Neousys - Nuvo-7000E,P,DE
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Dimension (depth, mm) | 225 |
| Dimension (height, mm) | 90 |
| Dimension (width, mm) | 240 |
| Operating system | Windows |
| Operating temperature (°C) | -25 - 70 |
| PC: Graphics card type | integrated |
| PC: Internal Expansion Bus | PCIe x16 (Gen3) |
| PC: I/O Interface | 6x Gigabit Ethernet, Audio, DisplayPort, DVI-D, PoE+, RS-232, RS-422, RS-485, USB 3.1 Gen 1, USB 3.1 Gen 2, VGA |
| PC: Processor type | Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium |
| PC: Product type | compact |
| PC: Properties | Rugged |
| PC: RAM (GB) | 64 |
| PC: RAM max. (GB) | 64 |
| PC: RAM type | DDR4 |
| PC: Storage capacity (GB) | N/A |
| PC: Storage interface | M.2, mSATA full-size, SATA |
| Power supply voltage (VDC) | 8 - 35 |
| Weight (kg) | 3.580 |
- Processor: Intel 9th/ 8th Gen Core i 35W/ 65W LGA1151 CPU
- Memory: up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
- Interface - GigE: up to 6x GigE ports, supporting 9.5 KB jumbo frame and 3x PoE
- Interface - USB: 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Storage: M.2 2280 M key socket (Gen3x4) supporting NVMe SSD or Intel Optane memory
- Display: VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
- Miscellaneous: Patented cassette for PCI/PCIe add-on card accommodation
- Miscellaneous: MezIO interface for easy function expansion
- Operating temperature: Rugged, wide temperature range from -25°C to 70°C fanless operation
- Dimension: 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-7000E/ P series); 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-7000DE series)
- Weight: 3.58 kg (Nuvo-7000E/P series); 3.7 kg (Nuvo-7000DE series)
