NEOUSYS SEMIL-13XX GC
SKU#:
57723

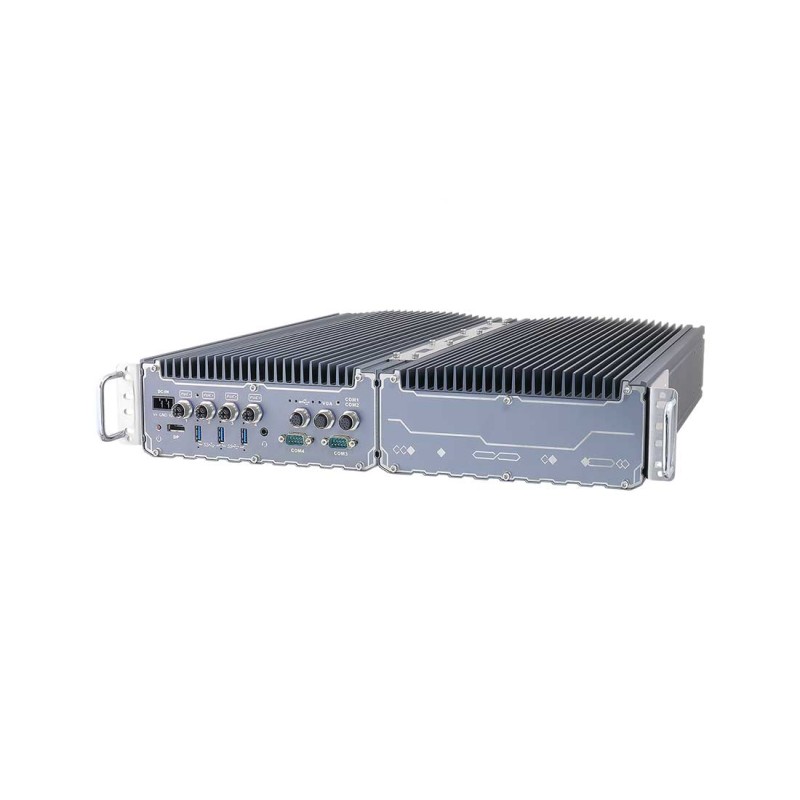

Wide-temperature fanless rugged GPU computer with M12 connectors
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Neousys - SEMIL-1300GC
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Certificates | CE, FCC |
| Dimension (depth, mm) | 310 |
| Dimension (height, mm) | 86.5 |
| Dimension (width, mm) | 440 |
| Operating system | Several Systems |
| Operating temperature (°C) | -25 - 70 |
| PC: Graphics card | NVIDIA Quadro P2200 |
| PC: Graphics card type | dedicated, integrated |
| PC: Graphics memory (GB) | 5 |
| PC: Internal Expansion Bus | mini PCIe |
| PC: I/O Interface | Audio, DisplayPort, Gigabit Ethernet, PoE+, RS-232, RS-422, RS-485, USB 2.0, USB 3.1 Gen 1, VGA |
| PC: Processor type | Intel Core i3, Intel Core i5, Intel Core i7, Intel Xeon |
| PC: Product type | compact |
| PC: Properties | Extreme-rugged |
| PC: RAM (GB) | 64 |
| PC: RAM max. (GB) | 64 |
| PC: RAM type | DDR4 |
| PC: Storage capacity (GB) | N/A |
| PC: Storage interface | M.2, mSATA full-size, SATA |
| Power supply voltage (VDC) | 8 - 48 |
| Weight (kg) | 12.000 |
- Processor: Intel Xeon E or 9th/ 8th-Gen Core i7/ i5/ i3 CPU
- GPU: NVIDIA Tesla T4/ Quadro P2200; guaranteed non-throttling GPU performance up to 62°C ambient
- Memory: up to 64 GB
- Interface GigE: 4x Gigabit PoE+ (Power over Ethernet) via M12 X-coded connectors
- Interface USB: 3x USB 3.1 Gen1; 2x USB 2.0 (M12 A-coded); 1x USB 2.0 (internal)
- Storage: 2x Internal SATA port; 2x full-size mSATA port; 1x M.2 2280 M key socket (PCIe Gen3 x4)
- Display: 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution; 1x DisplayPort connector, supporting 4096 x 2304 resolution
- Chassis: patented 2U 19" chassis for rack or wall-mount
- Operating temperature: -25°C to 70 °C operation
- IO: 2x COM via M12 connectors (M12 A-coded)
- Miscellaneous: CE, FCC and EN 50155 certified
- Power: 8V to 48V wide-range DC input with built-in ignition power control
- Dimension: 440 mm (W) x 310 mm (D) x 86. 5mm (H) (excl. rack-mount bracket)
- Weight: 12 kg
