SCHNEIDER AMBER 4.0/60 V38
SKU#:
64185
Large format V38 mount lenses for line scan and area scan inspection with 40, 60, 80, and 100 mm focal lengths, up to 82 mm image circle, low distortion, and visible wavelength range from 400 to 700 nm.

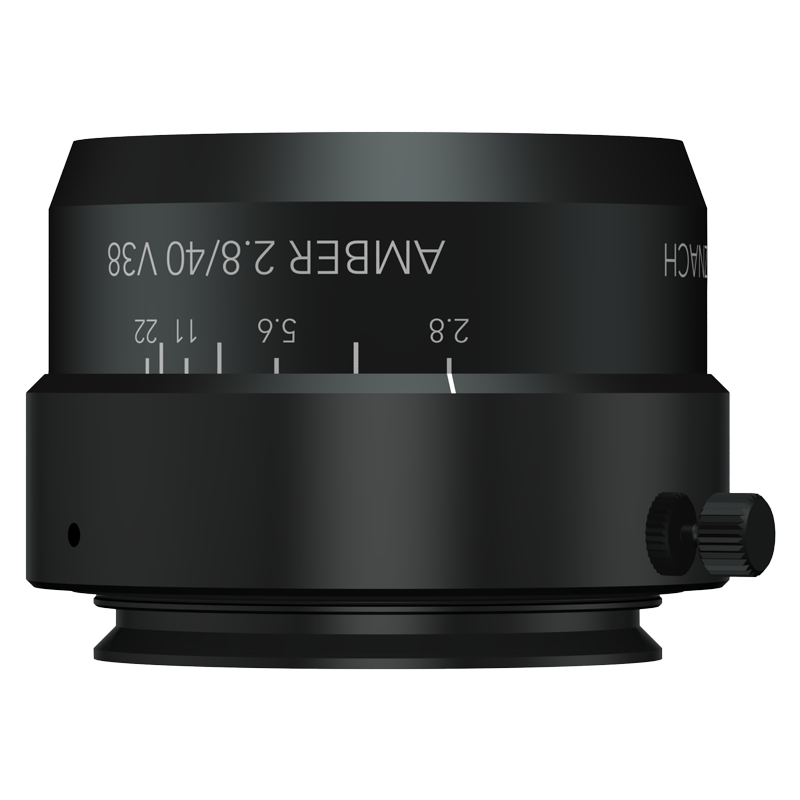

Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Schneider Kreuznach - AMBER
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Aperture | F 4 - F 32 |
| Camera mount (optics) | V38 |
| Diameter (mm) | 47 |
| Filter thread | M37 x 0.75 |
| Focal length (mm) | 60 |
| Length (mm) | 38 |
| Magnification (max) | 0.250 |
| Min. pixel size | 5 µm |
| Resolution | 16k |
| Sensor size diagonal (mm) | 62.5 |
| Working distance (mm) | 274.00 |
- Image Circle: 43.2 - 82 mm (varies by model)
- Resolution: supports 5μm pixel size
- Focal length: 40, 60, 80, 100mm
- Camera mount: V38
- Distortion: < 1% (varies by model)
- Aperture: F2.8 - F22 / F4.0 - F32 / F5.6 - F22 (varies by model)
- Aperture Control: Manual
- Working Distance:0.2 to Infinity (varies by model)
- Focus Control: Manual
- Wavelength Range: Visible (400 - 700 nm)
- Filter size: M37 x 0.75
- Length: < 45 mm
- Diameter: < 47 mm
- Weight: < 150 g
