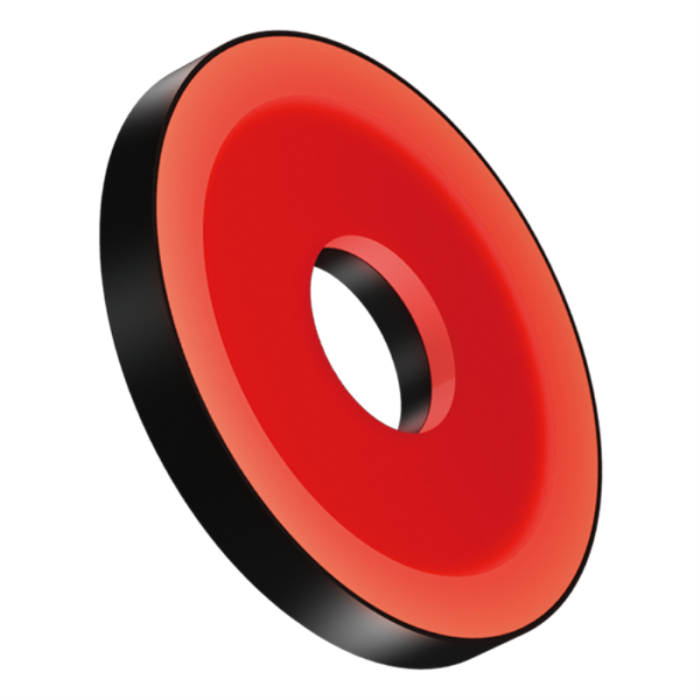

CCS - LFR

Compact disc shaped LED front lights

Key Features

  • Colour: red (630nm), white (5500 K), blue (470 nm) and green (525 nm)
  • Connector: standard connector, M12 and flying leads
  • Power supply: 24 V
  • Dimensions:
    • Outer diameters of 102 mm up to 356 mm
    • Inner diameters of 33 mm up to 220 mm
    • Emitting surface 80 mm up to 330 mm

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
Product Name Lighting technique Lighting geometry Light distribution Light colour Emitting surface width (mm) Emitting surface outer diameter (mm) Emitting surface inner diameter (mm) Smart Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Intensity control method IP rating LED risk group Manufacturer Weight (kg)
CCS LFR-100SW2
 frontlight ring light diffused White N/A 80 33 no not specified N/A N/A N/A N/A N/A N/A CCS 0.170
CCS LFR-100KSW2
 frontlight ring light diffused White N/A 80 33 no not specified N/A N/A N/A N/A N/A N/A CCS 0.140
CCS LFR-130SW2
 frontlight ring light diffused White N/A 103 44 no not specified N/A N/A N/A N/A N/A N/A CCS 0.250
CCS LFR-130KSW2
 frontlight ring light diffused White N/A 101 44 no not specified N/A N/A N/A N/A N/A N/A CCS 0.200
CCS LFR-200SW2
 frontlight ring light diffused White N/A 194 70 no not specified N/A N/A N/A N/A N/A N/A CCS 0.490
CCS LFR-250SW2
 frontlight ring light diffused White N/A 250 120 no not specified N/A N/A N/A N/A N/A N/A CCS 1.090
CCS LFR-100RD2
 frontlight ring light diffused Red N/A 80 33 no not specified N/A 630 N/A N/A N/A N/A CCS 0.120
CCS LFR-130RD2
 frontlight ring light diffused Red N/A 103 44 no not specified N/A 630 N/A N/A N/A N/A CCS 0.250
CCS LFR-200RD2
 frontlight ring light diffused Red N/A 194 70 no not specified N/A 630 N/A N/A N/A N/A CCS 0.490
CCS LFR-100RD2-K
 frontlight ring light diffused Red N/A 80 33 no not specified N/A 630 N/A N/A N/A N/A CCS 0.140
CCS LFR-250RD2
 frontlight ring light diffused Red N/A 250 120 no not specified N/A 630 N/A N/A N/A N/A CCS 1.080
CCS LFR-100BL2
 frontlight ring light diffused Blue N/A 80 33 no not specified N/A 470 N/A N/A N/A N/A CCS 0.170
CCS LFR-100GR2
 frontlight ring light diffused Green N/A 80 33 no not specified N/A 525 N/A N/A N/A N/A CCS 0.170
CCS LFR-100GR2-K
 frontlight ring light diffused Green N/A 80 33 no not specified N/A 525 N/A N/A N/A N/A CCS 0.190
CCS LFR-100BL2-K
 frontlight ring light diffused Blue N/A 80 33 no not specified N/A 470 N/A N/A N/A N/A CCS 0.190
CCS LFR-130BL2
 frontlight ring light diffused Blue N/A 103 44 no not specified N/A 470 N/A N/A N/A N/A CCS 0.250
CCS LFR-130GR2
 frontlight ring light diffused Green N/A 103 44 no not specified N/A 525 N/A N/A N/A N/A CCS 0.250
CCS LFR-130BL2-K
 frontlight ring light diffused Blue N/A 101 44 no not specified N/A 470 N/A N/A N/A N/A CCS 0.190
CCS LFR-130GR2-K
 frontlight ring light diffused Green N/A 101 44 no not specified N/A 525 N/A N/A N/A N/A CCS 0.190
CCS LFR-200BL2
 frontlight ring light diffused Blue N/A 194 70 no not specified N/A 470 N/A N/A N/A N/A CCS 0.490
CCS LFR-130RD2-K
 frontlight ring light diffused Red N/A 101 44 no not specified N/A 630 N/A N/A N/A N/A CCS 0.190
CCS LFR-330RD2
 frontlight ring light diffused Red N/A 330 220 no not specified N/A 630 N/A N/A N/A N/A CCS 1.500
CCS LFR-250BL2
 frontlight ring light diffused Blue N/A 250 120 no not specified N/A 470 N/A N/A N/A N/A CCS 1.080

Why choose CCS - LFR?

No individual LED reflections

The disc-shaped LFR series floods the target with extremely diffuse light. This means that no individual LED reflections are imaged onto the component. The LEDs are embedded around a light-guiding diffusion plate.

Possible at limited space

The extremely compact design provides a height of only 12 to 17 mm and enables integration where space is limited. Operating distances of 50 to 150 mm are most effective.
