CCS - UV3,VL3

Wide selection of high-output ultraviolet and violet LED illumination for demanding applications

Key Features

  • Wavelength: 365 nm, 385 nm, 395 nm, 405 nm
  • Power supply: 24 V lights and a current controlled spot (HLV2)

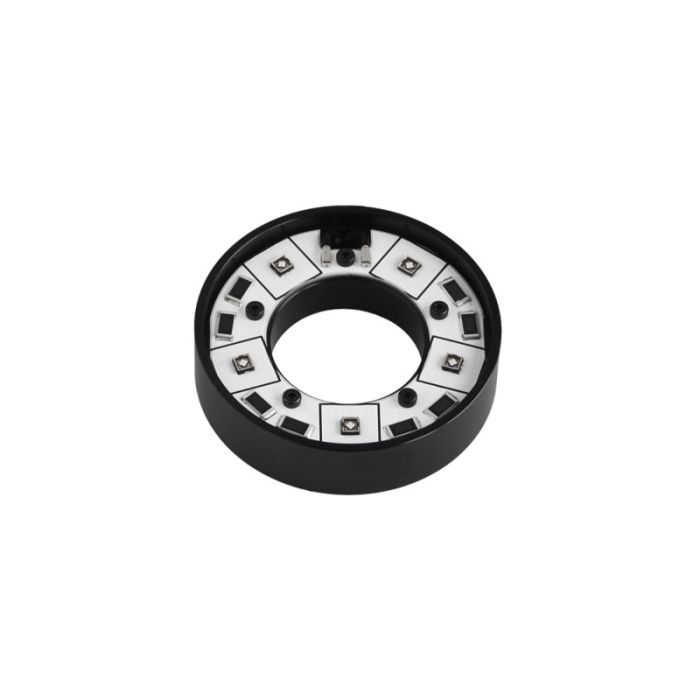

  • Ring light dimensions:
    • LDR2: Outer diameter 60 mm, inner diameter 30 mm, height 15 mm/19 mm;
    • HLDR: Outer diameter 100 mm, inner diameter 43 mm, height 35.5 mm

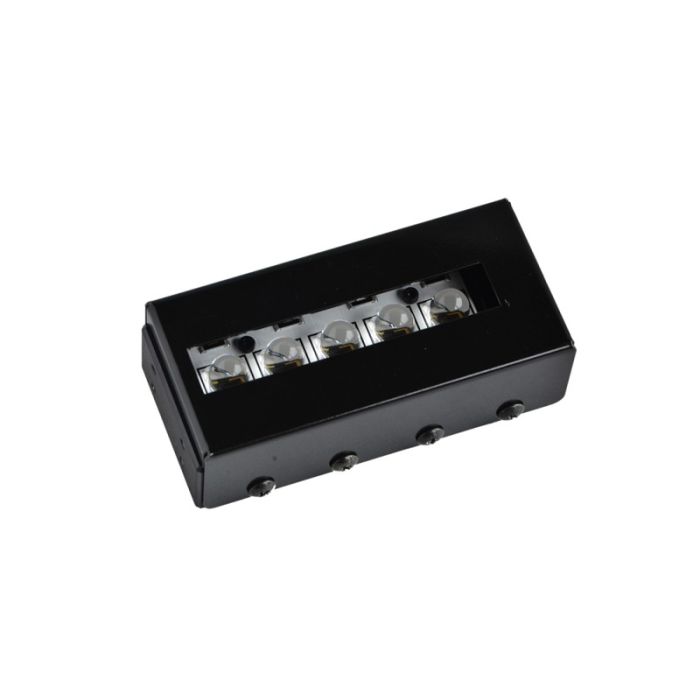

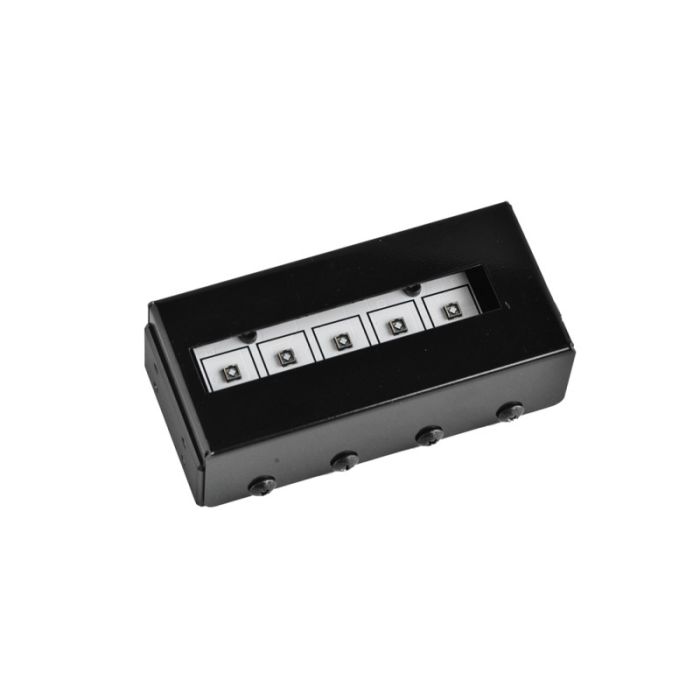

  • Bar light dimensions (LDL): 91 mm x 45.6 mm x 28 mm (length x width x height) to 225 mm x 45.6 mm x 28 mm (length x width x height)

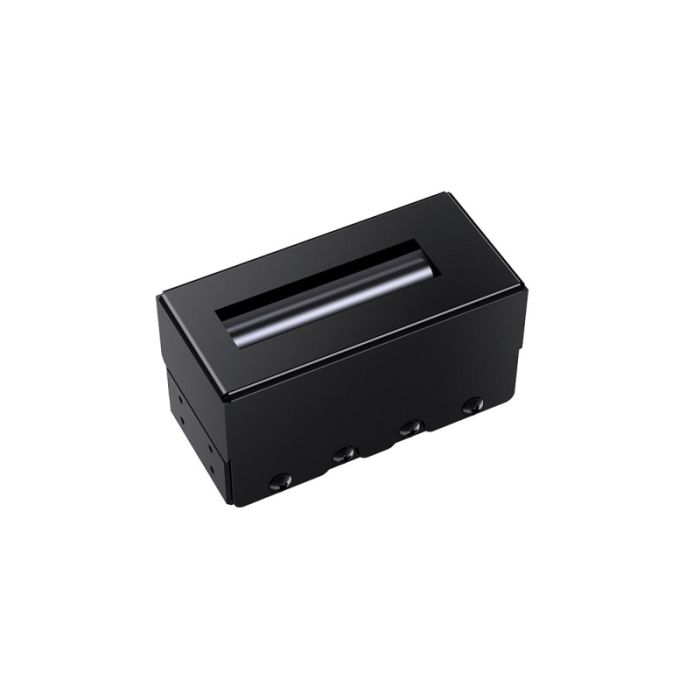

  • Short line light dimensions:
    • LN: 91 mm x 47.6 mm x 47.5 mm (length x width x height) to 225 mm x 47.6 mm x 47.5 mm (length x width x height)
    • LN-SP: 136.3 mm x 62 mm x 74.6 mm resp. 79.8 mm (length x width x height) to 339 mm x 62 mm x 74.6 mm resp. 79.8 mm (length x width x height)
  • Spot light dimensions (HLV2): Length 54 mm, outer diameter 24 mm, tip diameter 28 mm

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
Product Name Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
CCS LDL-71X12UV3-365-N
 narrow N/A 365 12 N/A N/A 71 N/A N/A 2 UV direct bar light frontlight CCS no 0.270
CCS LDL-71X12UV3-365-W
 wide N/A 365 12 N/A N/A 71 N/A N/A 2 UV direct bar light frontlight CCS no 0.270
CCS LN-61UV3-365
 focused N/A 365 16 N/A N/A 61 N/A N/A 2 UV direct line light dark field; frontlight CCS no 0.430
CCS LDR2-60UV3-365-W
 wide N/A 365 N/A 30 50 3010 N/A N/A 2 UV direct ring light frontlight CCS no 0.085
CCS HLV2-24UV3-365
 not specified N/A 365 N/A N/A 18 3010 N/A N/A 3 UV not specified spotlight frontlight CCS no 0.050
CCS HLV2-24VL3-405
 not specified N/A 405 N/A N/A 18 3010 N/A N/A 2 Violet not specified spotlight frontlight CCS no 0.050
CCS HLV2-24VL3-385
 not specified N/A 385 N/A N/A 18 3010 N/A N/A 2 Violet not specified spotlight frontlight CCS no 0.050
CCS HLV2-24VL3-395
 not specified N/A 395 N/A N/A 18 3010 N/A N/A 2 Violet not specified spotlight frontlight CCS no 0.050
CCS LDR2-60VL3-385-W
 wide N/A 385 N/A 30 50 3010 N/A N/A 3 Violet direct ring light frontlight CCS no 0.085
CCS LDR2-60VL3-385-N
 narrow N/A 385 N/A 30 50 3010 N/A N/A 3 Violet direct ring light frontlight CCS no 0.085
CCS LDR2-60UV3-365-N
 narrow N/A 365 N/A 30 50 30002 N/A N/A 2 UV direct ring light frontlight CCS no 0.085
CCS LDL-71X12VL3-385-W
 wide N/A 385 12 N/A N/A 71 N/A N/A 1 Violet direct bar light frontlight CCS no 0.270
CCS LDL-71X12VL3-395-W
 wide N/A 395 12 N/A N/A 71 N/A N/A 1 Violet direct bar light frontlight CCS no 0.270
CCS LDL-71X12VL3-405-W
 wide N/A 405 12 N/A N/A 71 N/A N/A 2 Violet direct bar light frontlight CCS no 0.270
CCS LDL-71X12VL3-385-N
 narrow N/A 385 12 N/A N/A 71 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.270
CCS LDL-71X12VL3-395-N
 narrow N/A 395 12 N/A N/A 71 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.270
CCS LDL-71X12VL3-405-N
 narrow N/A 405 12 N/A N/A 71 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.270
CCS LN-61VL3-385
 focused N/A 385 16 N/A N/A 61 N/A N/A 2 Violet direct line light dark field; frontlight CCS no 0.430
CCS LN-61VL3-395
 focused N/A 395 16 N/A N/A 61 N/A N/A 2 Violet direct line light dark field; frontlight CCS no 0.430
CCS LN-61VL3-405
 focused N/A 405 16 N/A N/A 61 N/A N/A 2 Violet direct line light dark field; frontlight CCS no 0.430
CCS LDL-138X12UV3-365-W
 wide JST SMR-03V-B 365 12 N/A N/A 138 N/A N/A 2 UV direct bar light frontlight CCS no 0.450
CCS LDL-138X12VL3-385-W
 wide N/A 385 12 N/A N/A 138 N/A N/A 2 Violet direct bar light frontlight CCS no 0.450
CCS LDL-138X12UV3-365-N
 narrow N/A 365 12 N/A N/A 138 N/A N/A 3 UV direct bar light dark field; frontlight CCS no 0.450
CCS LDL-138X12VL3-385-N
 narrow N/A 385 12 N/A N/A 138 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.450
CCS LDL-205X12VL3-385-N
 narrow N/A 385 12 N/A N/A 205 N/A N/A 3 Violet direct bar light frontlight CCS no 0.600
CCS LDL-205X12UV3-365-N
 narrow JST SMR-03V-B 365 12 N/A N/A 205 N/A N/A 3 UV direct bar light dark field; frontlight CCS no 0.600
CCS LDL-205X12VL3-385-W
 wide N/A 385 12 N/A N/A 205 N/A N/A 2 Violet direct bar light frontlight CCS no 0.600
CCS LDL-339X12UV3-365-N
 narrow N/A 365 12 N/A N/A 339 N/A N/A 3 UV direct bar light frontlight CCS no N/A
CCS LDL-339X12VL3-385-N
 narrow N/A 385 12 N/A N/A 339 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.960
CCS LDL-339X12VL3-395-N
 narrow N/A 395 12 N/A N/A 339 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.960
CCS LDL-339X12VL3-405-N
 narrow N/A 405 12 N/A N/A 339 N/A N/A 3 Violet direct bar light dark field; frontlight CCS no 0.960
CCS LDL-339X12VL3-385-W
 wide N/A 385 12 N/A N/A 339 N/A N/A 2 Violet direct bar light frontlight CCS no 0.960
CCS LDL-339X12VL3-395-W
 wide N/A 395 12 N/A N/A 339 N/A N/A 2 Violet direct bar light frontlight CCS no 0.960
CCS LDL-339X12VL3-405-W
 wide N/A 405 12 N/A N/A 339 N/A N/A 2 Violet direct bar light frontlight CCS no 0.960
CCS LDL-339X12UV3-365-W
 wide N/A 365 12 N/A N/A 339 N/A N/A 2 UV direct bar light frontlight CCS no N/A
CCS LN-128UV3-365
 focused N/A 365 16 N/A N/A 128 N/A N/A 3 UV direct line light dark field; frontlight CCS no 0.750
CCS LDR2-100UV3-365-W
 wide N/A 365 N/A N/A 101 30002 N/A N/A 2 UV direct ring light dark field; frontlight CCS no 0.250
CCS HLDR-IP67-100UV3-365
 narrow N/A 365 N/A 43 58 N/A N/A IP67 3 UV direct ring light frontlight CCS no 0.420
CCS LDR2-100UV3-365-N
 narrow N/A 365 N/A N/A 101 30002 N/A N/A 3 UV direct ring light dark field; frontlight CCS no 0.250
