Computar - MP2
Compact, reliable Computar MP2 C‑mount lenses delivering 1.5 MP resolution, low distortion, and precision control with lockable iris and focus
Key Features
- Sensor size: up to 2/3" (1/2” for H0514-MP2)
- Image Circle: 11mm (8mm for H0514-MP2)
- Resolution: 1.5MP, support 6.22µm pixel pitch
- Focal length: 5, 8, 12, 16, 25, 35, 50, 75mm
- Camera Mount: C-Mount
- Distortion: <|-0.8|% (varies by model)
- Aperture Control: Manual (w/ lock screws)
- Working Distance: 0.1m to Infinity (varies by model)
- Focus Control: Manual (w/ lock screws)
- Wavelength Range: VIS (400 to 700nm)
- Length: 28.2 to 38.2mm
- Diameter: 33.5 to 44.5mm
- Weight: 60 to 113g
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

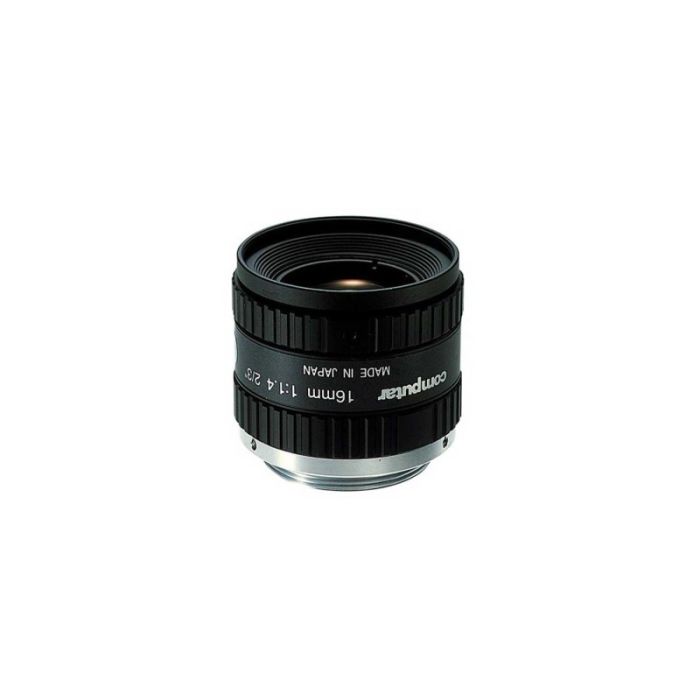

| F 1.4 | C-Mount | M30.5 x 0.5 | 16 | 28.2 | N/A | Computar | 6.2 µm | 300 | 1.5 | 11 | Visible | |

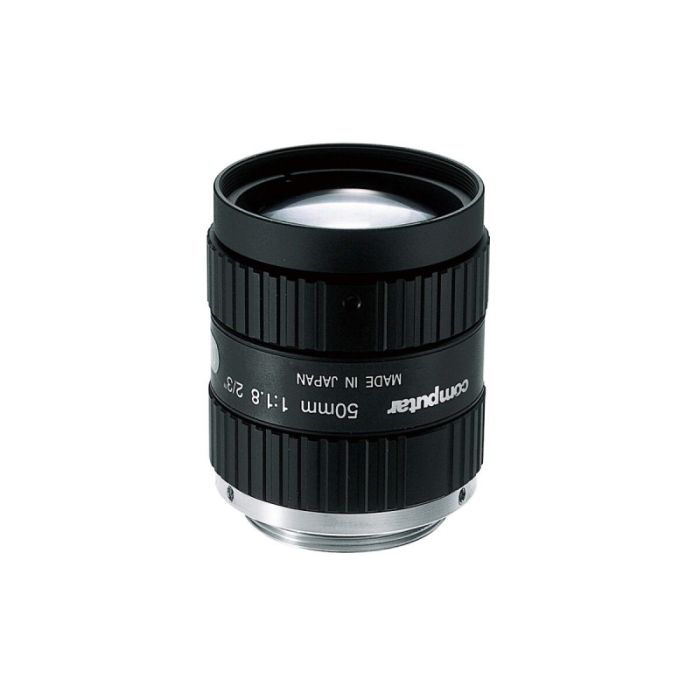

| F 1.8 | C-Mount | M30.5 x 0.5 | 50 | 38.2 | N/A | Computar | 6.2 µm | 500 | 1.5 | 11 | Visible | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 8 | 28.2 | N/A | Computar | 6.2 µm | 100 | 1.5 | 11 | Visible | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 12 | 28.2 | N/A | Computar | 6.2 µm | 150 | 1.5 | 11 | Visible | |

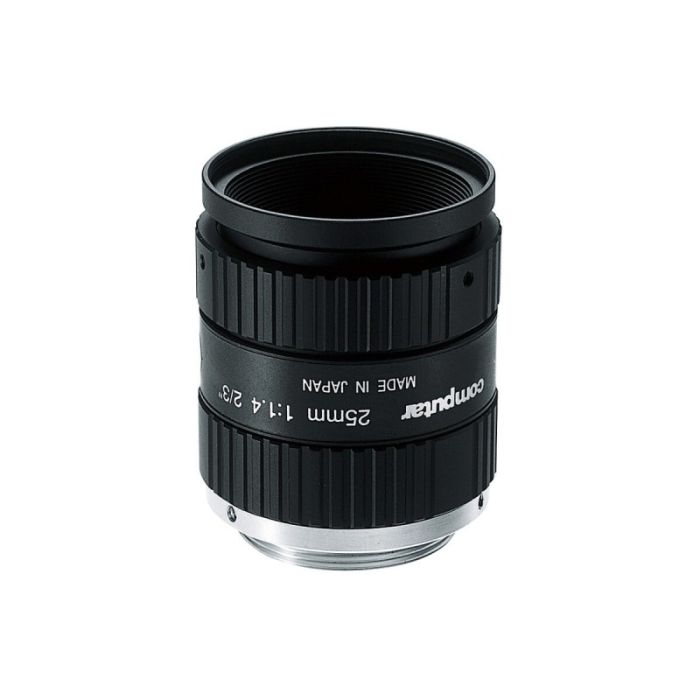

| F 1.4 | C-Mount | M30.5 x 0.5 | 25 | 36 | N/A | Computar | 6.2 µm | 300 | 1.5 | 11 | Visible | |
| F 1.4 | C-Mount | M43 x 0.75 | 5 | 45.5 | N/A | Computar | 6.2 µm | 300 | 1.5 | 8 | Visible | |

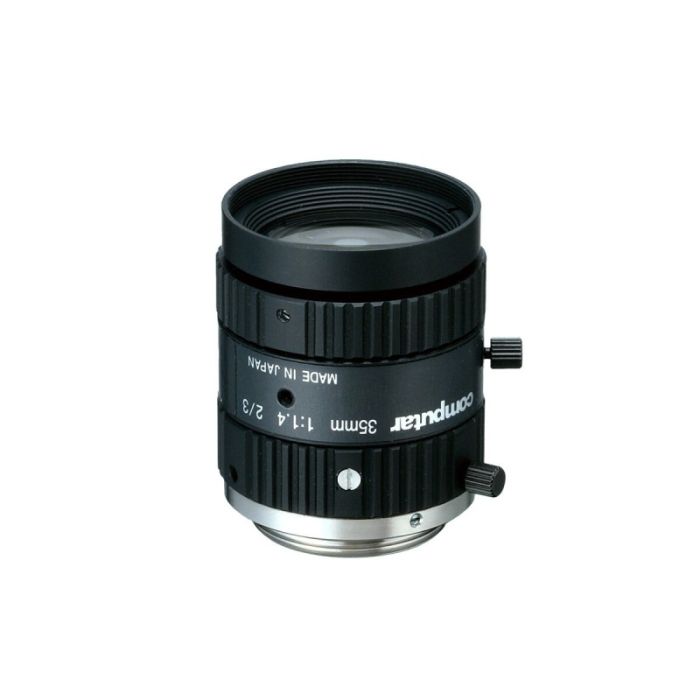

| F 1.4 | C-Mount | M30.5 x 0.5 | 35 | 38.2 | N/A | Computar | 6.2 µm | 300 | 1.5 | 11 | Visible | |
| F 2.8 | C-Mount | M30.5 x 0.5 | 75 | 57.8 | N/A | Computar | 4.4 µm | 300 | 1.5 | 11 | Visible |
