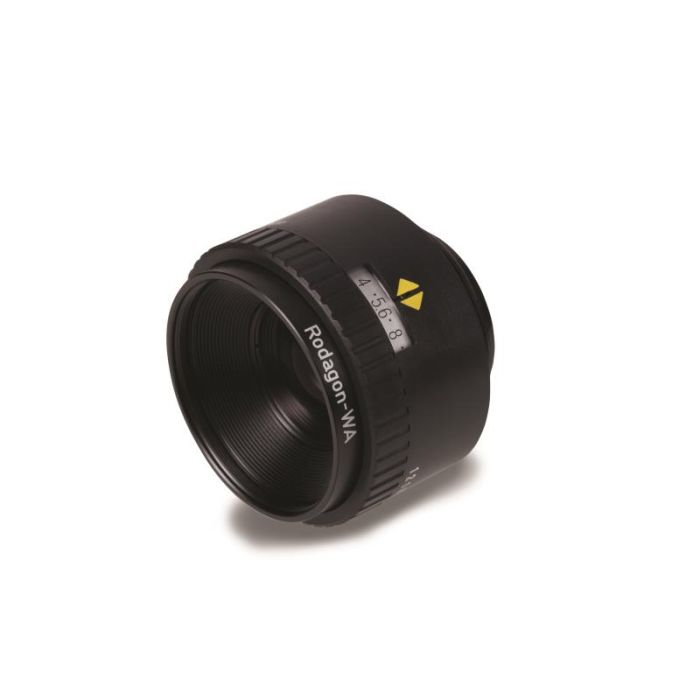

Excelitas - Rodagon-WA
High-performance Linos Rodagon-WA lenses with a wider angle of view, resulting in a larger image circle.
Key Features
- Focal lengths: 28 - 135 mm
- Magnification range: - 0.03 - -0.5
- Spectral range: 400 - 750 nm
- Iris diaphragm: manual, click-stop
- Mount: M39x1/26" (Leica)
- Filter thread: M40.5x0.5
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | N/A | 46 | Leica-Mount | N/A | F 4 | 175 | Visible | M40.5 x 0.5 | N/A | Excelitas | N/A | |
| 60 | N/A | 84 | Leica-Mount | N/A | F 4 | 280 | Visible | M40.5 x 0.5 | N/A | Excelitas | N/A |
