KOWA - LM-HC-VIS-SWIR
From visible to SWIR: corrected lens with transmission from 450 nm up to 2000 nm with reduced focus shift.
Key Features
- Sensor size: up to 1"
- Pixel size (µm): 3.1 and larger
- Focal length: 8, 12, 16, 25, 35 and 50 mm
- Aperture: F1.8 - F16
- Wavelength range: 450-2000 nm (VIS to SWIR)
- Reduced focus shift and very low distortion
- Floating mechanism design to eliminate optical aberrations
- minimal chromatic aberrations
- Camera mount: C-mount
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.8 - F 16 | C-Mount | M27 x 0.5 | 25 | N/A | Kowa | 3.1 µm | 200 | 160 | 1" | 15.8 | VIS-SWIR | |

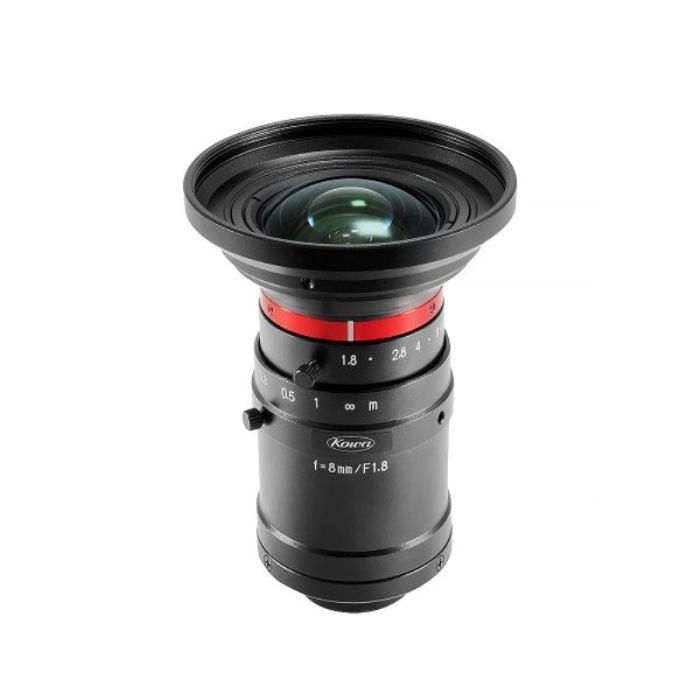

| F 1.8 - F 16 | C-Mount | M55 x 0.75 | 8 | N/A | Kowa | 3.1 µm | 200 | 160 | 1" | 15.8 | VIS-SWIR | |
| F 1.8 - F 16 | C-Mount | M34 x 0.5 | 12 | N/A | Kowa | 3.1 µm | 2000 | 160 | 1" | 15.8 | VIS-SWIR | |

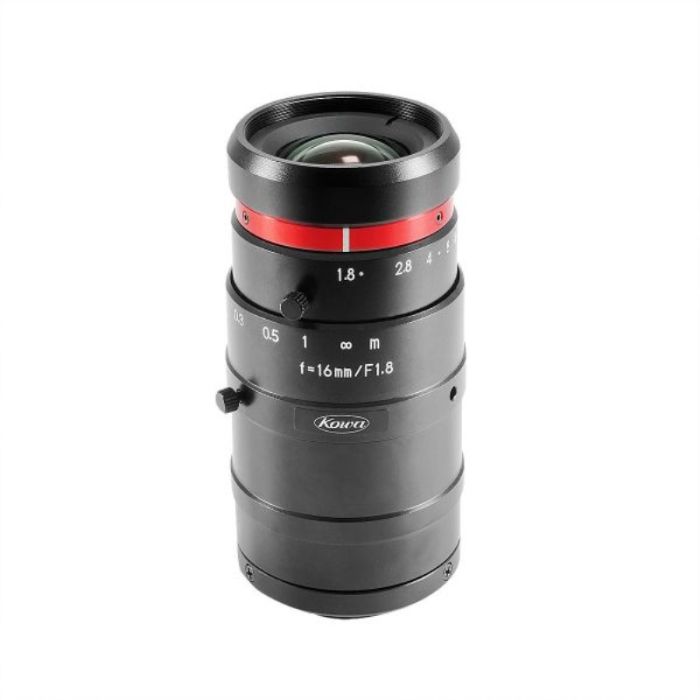

| F 1.8 - F 16 | C-Mount | M30.5 x 0.5 | 16 | N/A | Kowa | 3.1 µm | 200 | 160 | 1" | 15.8 | VIS-SWIR | |

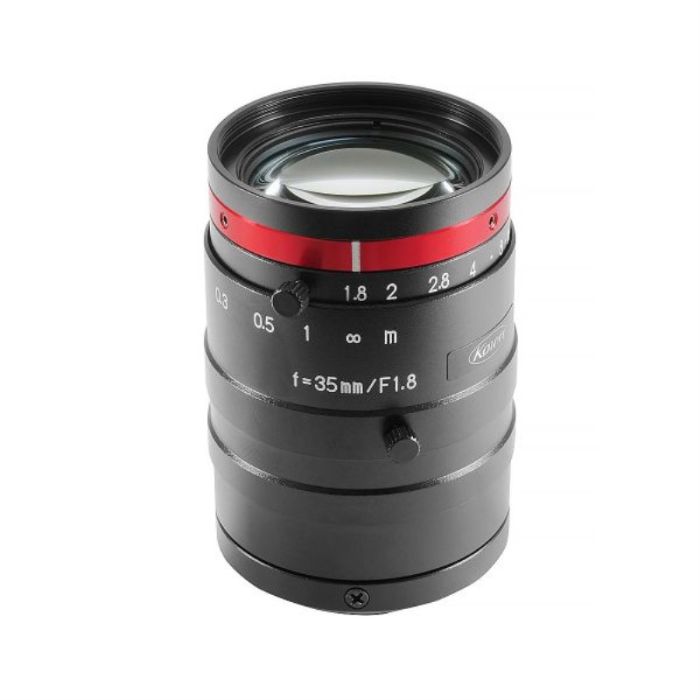

| F 1.8 - F 16 | C-Mount | M34 x 0.5 | 35 | N/A | Kowa | 3.1 µm | 200 | 160 | 1" | 15.8 | VIS-SWIR | |

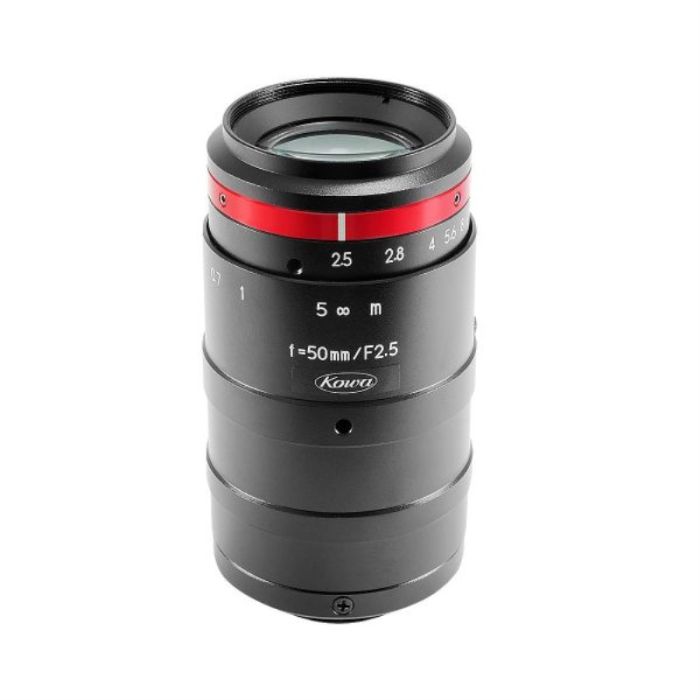

| F 1.8 - F 16 | C-Mount | M30.5 x 0.5 | 50 | N/A | Kowa | 3.1 µm | 500 | 160 | 1" | 15.8 | VIS-SWIR |
Why choose KOWA - LM-HC-VIS-SWIR?
Corrected lenses for perfect image quality
The primary benefit for VIS-SWIR correction is that it allows an image to remain in focus even when the wavelength changes from visible to infrared or vice versa. With a standard visible, NIR or SWIR lens, a focus shift will occur due to differences in the refractive index if the wavelength fluctuates. However, by incorporating extra low dispersion (XD) glass and carefully aligning all internal lens elements, such focus shift problems are eliminated.
Suitable for high-performance cameras
The lenses are ideal for applications with 1" sensors with a pixel size of down to 3.1µm and suitable for 12 megapixel resolution for use with top performance cameras.
