KOWA - LM-LF

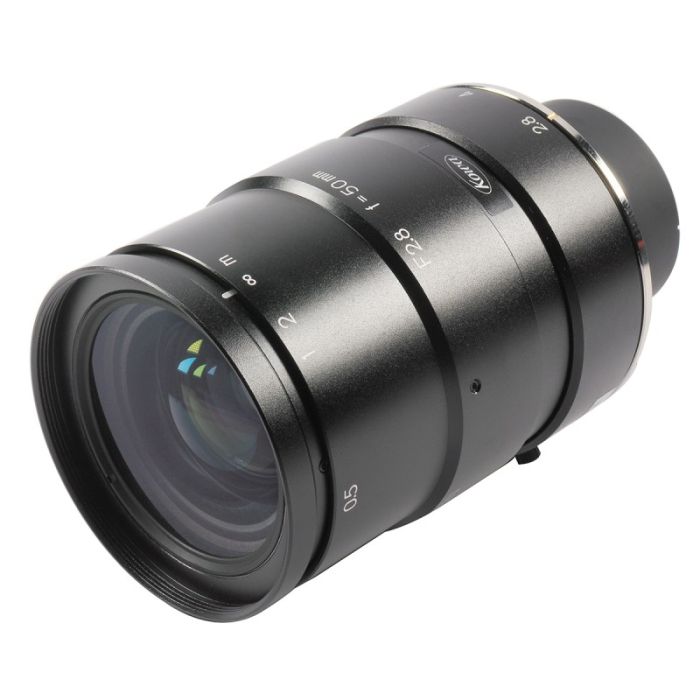

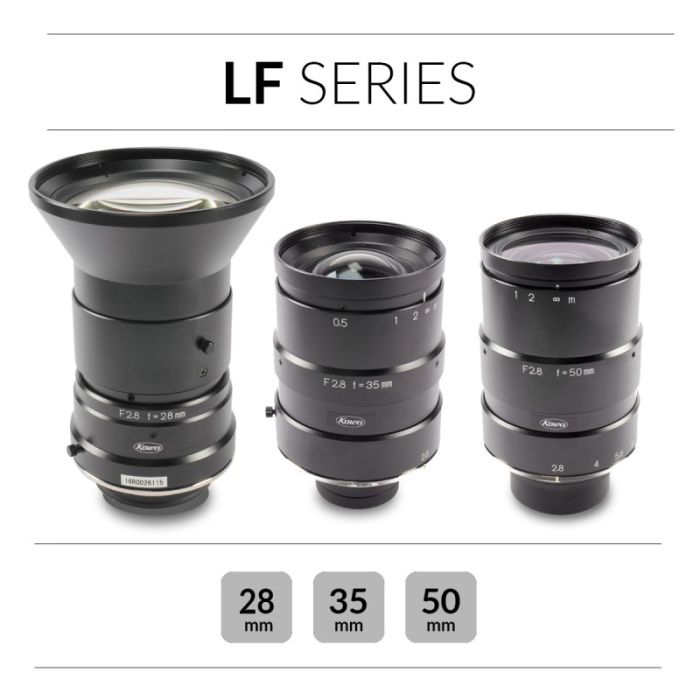

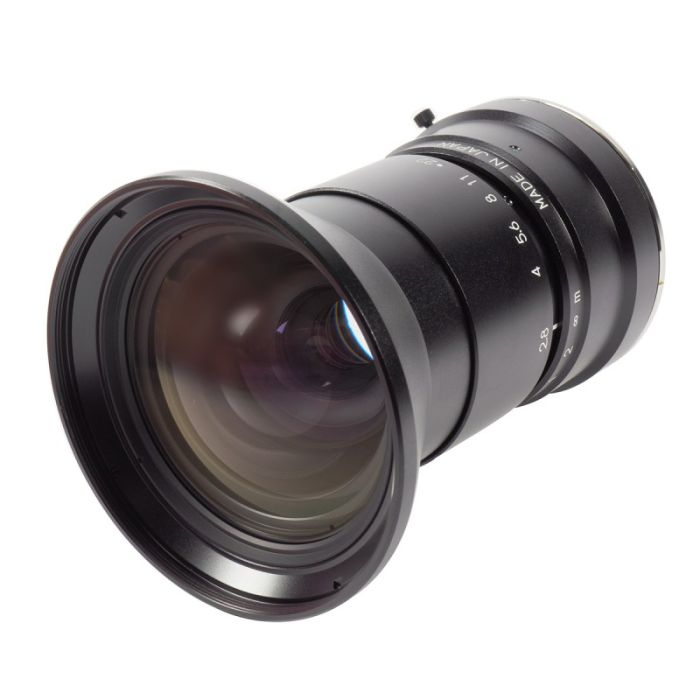

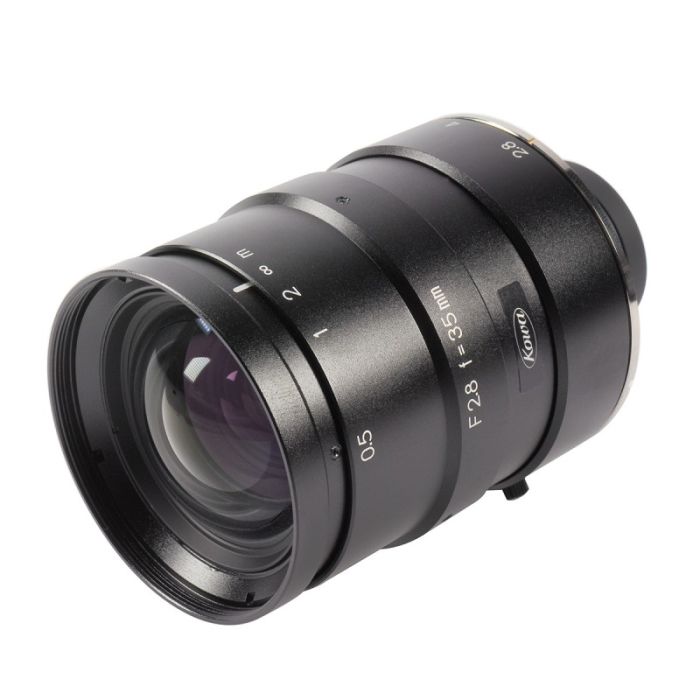

Kowa LM-LF large format F-mount line scan lenses: 28, 35 and 50 mm focal lengths, 46 mm image circle for 4K line scan, low distortion and close range surface inspection.
Key Features
- Image Circle: 46mm
- Resolution: supports 7.5μm pixel size
- Focal length: 28, 35, 50mm
- Camera mount: Nikon F-mount (LF); TFL-II (-48)
- Distortion: <1% TV (varies by model)
- Aperture: F2.8 - F22
- Aperture Control: Manual
- Working Distance: 0.4m to Infinity LM28LF: 0.5m)
- Focus Control: Manual
- Wavelength Range: Broad Band Coating (400nm – 1000nm)
- Filter size: M52 x 0.75 (LM28LF: M72 x 0.75)
- Length: <77mm (LM28LF: 98mm)
- Diameter: <57.5mm (LM28LF: 75mm)
- Weight: <500g (varies by model)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Focal length (mm) | Manufacturer | Wavelength range |
|---|---|---|---|---|
| F 2.8 - F 22 | 28 | Kowa | Visible | |
| F 2.8 - F 22 | 35 | Kowa | Visible | |
| F 2.8 - F 22 | 28 | Kowa | Visible | |
| F 2.8 - F 32 | 35 | Kowa | Visible | |
| F 2.8 - F 32 | 50 | Kowa | Visible | |
| F 2.8 - F 22 | 50 | Kowa | Visible |
