LMI - Gocator 2800

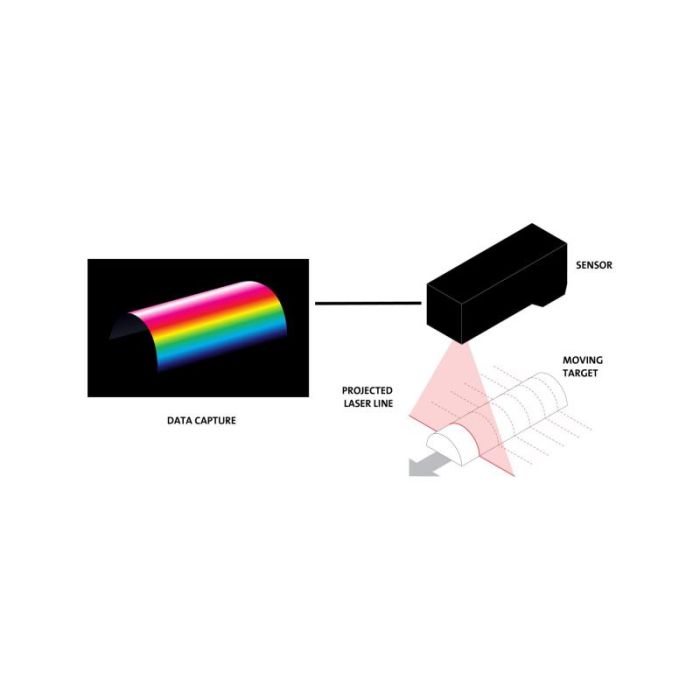

Dual triangulation laser line smart sensor
Key Features
- Interface: Gigabit Ethernet
- Inputs: differential encoder, laser safety enable, trigger
- Outputs: 2x digital output, RS-485 serial, selcom serial, 1x analogue output
- Input voltage (power): +24 to +48 VDC (13 watts)
- Housing: gasketed aluminium enclosure, IP67
- Operating temperature: 0 to 50 °C
- Software: browser-based GUI and open source SDK for configuration and real-time 3D visualisation
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Scan type | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | LED risk group | Lens mount | Pixel size (µm) | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| laser triangulation | LMI Technologies | 498 | 75 | 49 | N/A | Gigabit Ethernet | N/A | Integrated Lens | N/A | N/A | N/A | 2.560 |
Why choose LMI - Gocator 2800?
Complete scans
The Gocator 2880 is a smart 3D profile sensor designed to scan large objects with complicated shapes. Its dualcamera construction compensates for occlusions around protruding features. Plus, the sensor’s large field-of-view and measurement range are easily able to accommodate a wide range of targets.
Stand alone and scalable
Single Gocator 2880 sensors require no additional controllers, amplifiers or PCs to operate. What’s more, the Gocator 2880 can effortlessly scale up to a multiple sensor network using LMI Master hubs. Masters take care of distribution, laser safety interlock, encoder and digital input handling, and microsecond synchronisation.
Simple integration
Standardised cabling and a compact 500mm unit size simplify mounting and system integration.
