MidOpt - Broad Bandwidth Filters

The BP Series is designed with a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths. The glass is double side polished for exceptional parallelism and optical flatness.

BP Series are the most popular filters used in machine vision and factory automation systems and are a critical element in fluorescence imaging.

Key Features

  • High transmission ≥90%
  • Superior out-of-band blocking

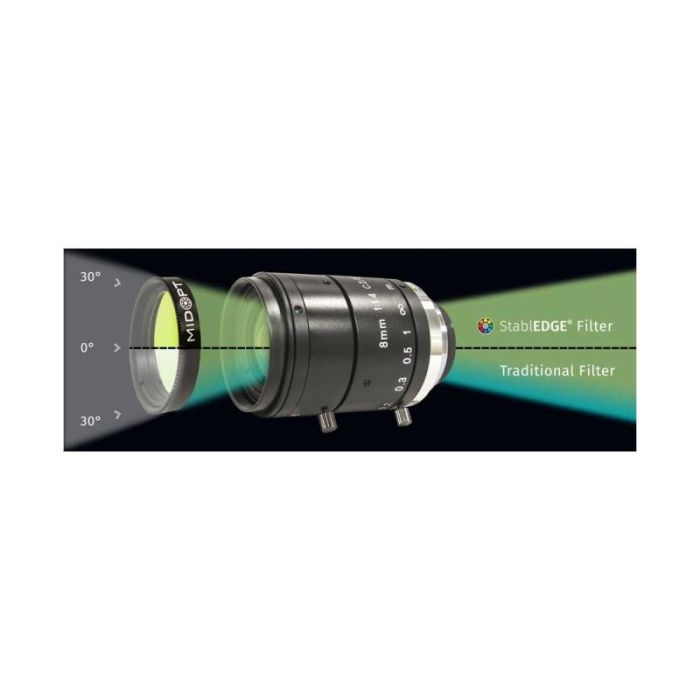

  • StablEDGE® design reduces angular dependency and minimizes short-shifting effects
  • Double-side polished glass for exceptional parallelism and optical flatness
  • Available in sizes up to 165mm sq.
  • available in Threaded Mounts, sizes M13.25 to M105; 25.4® C-Mount; Slip Mounts; or Unmounted.

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
To
To
Product Name Bandwidth (FWHM) Cut-off wavelength Cut-on wavelength Dimension (height, mm) Dimension (width, mm) Filter thread Filter type Manufacturer Useful Range (nm)
MIDOPT FIL BP660/C-MOUNT
 60 680 nm 640 nm N/A N/A C-Mount bandpass Midwest Optical 640 - 680
MIDOPT FIL BP845/25.5
 60 865 nm 830 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 830 - 865
MIDOPT FIL BP800/40.5
 315 950 nm 745 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP880/43
 130 930 nm 845 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 845 - 930

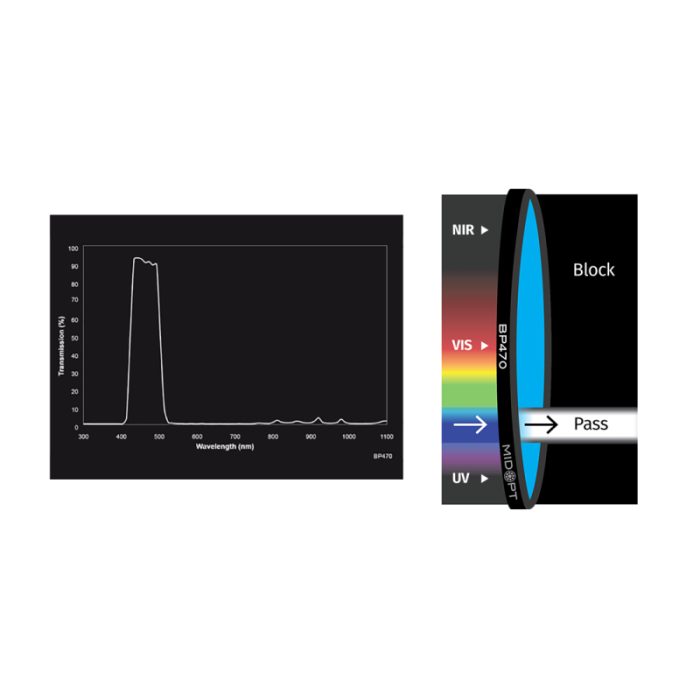

MIDOPT FIL BP470/25.5
 85 495 nm 425 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP470/27
 85 495 nm 425 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP660/25.5
 60 680 nm 640 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/27
 60 680 nm 640 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP525/25.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP525/27
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP365/67
 80 400 nm 335 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP470/49
 85 495 nm 425 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP500/25.5
 248 555 nm 440 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP850/58
 160 910 nm 820 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 820 - 910

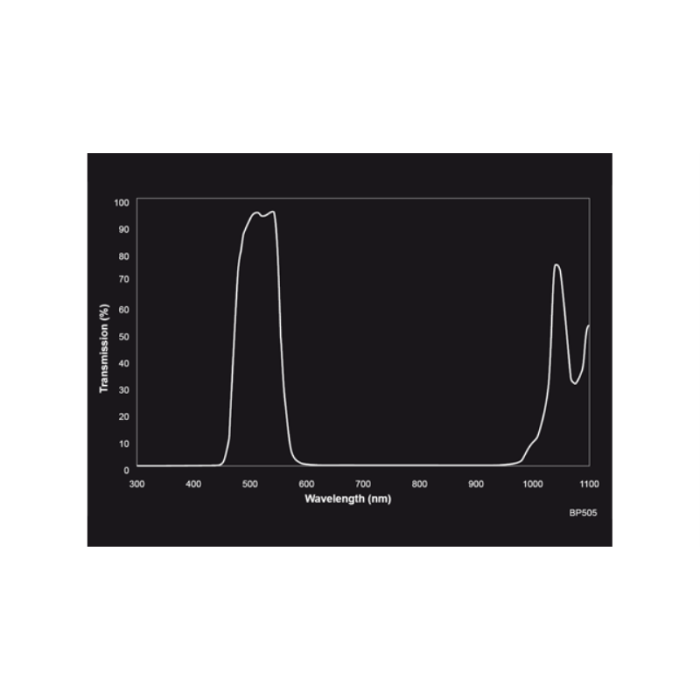

MIDOPT FIL BP505/C-MOUNT
 90 550 nm 485 nm N/A N/A C-Mount bandpass Midwest Optical 485 - 550
MIDOPT FIL BP525/C-MOUNT
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A C-Mount bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP365/25.5
 80 400 nm 335 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP800/C-MOUNT
 315 950 nm 745 nm N/A N/A C-Mount bandpass Midwest Optical 745 - 950
MIDOPT FIL BP505/52
 90 550 nm 485 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP635/40.5
 60 645 nm 615 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP324/27
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP660/35.5
 60 680 nm 640 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP550/77
300 690 nm 405 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP470/34
 85 495 nm 425 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP660/30.5
 60 680 nm 640 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/72
 60 680 nm 640 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP635/55
 60 645 nm 615 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP635/C-MOUNT
 60 645 nm 615 nm N/A N/A C-Mount bandpass Midwest Optical 615 - 645
MIDOPT FIL BP695/C-MOUNT
 65 720 nm 680 nm N/A N/A C-Mount bandpass Midwest Optical 680 - 720
MIDOPT FIL BP470/30.5
 85 495 nm 425 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP660/62
 60 680 nm 640 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP635/35.5
 60 645 nm 615 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP470/C-MOUNT
 85 495 nm 425 nm N/A N/A C-Mount bandpass Midwest Optical 425 - 495
MIDOPT FIL BP635/67
 60 645 nm 615 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP635/30.5
 60 645 nm 615 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP635/27
 60 645 nm 615 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP695/40.5
 65 720 nm 680 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP365/46
 80 400 nm 335 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP635/34
 60 645 nm 615 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP525/35.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP550/25.5
 300 690 nm 405 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP550/27
 300 690 nm 405 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP550/30.5
 300 690 nm 405 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP635/25.5
 60 645 nm 615 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP525/30.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP660/40.5
 60 680 nm 640 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/49
 60 680 nm 640 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/58
 60 680 nm 640 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/34
 60 680 nm 640 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP365/27
 80 400 nm 335 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP470/77
 85 495 nm 425 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP505/27
 90 550 nm 485 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP635/58
 60 645 nm 615 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP635/49
 60 645 nm 615 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP590/62
 75 600 nm 1100 nm; 560 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP635/46
 60 645 nm 615 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP470/35.5
 85 495 nm 425 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP500/27
 248 555 nm 440 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP505/25.5
 90 550 nm 485 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP525/40.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP324/49
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP365/49
 80 400 nm 335 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP505/49
 90 550 nm 485 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP550/49
 300 690 nm 405 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP850/27
 160 910 nm 820 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP590/40.5
 75 600 nm 1100 nm; 560 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP590/27
 75 600 nm 1100 nm; 560 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP850/55
 160 910 nm 820 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP324/52
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP850/C-MOUNT
 160 910 nm 820 nm N/A N/A C-Mount bandpass Midwest Optical 820 - 910
MIDOPT FIL BP800/25.5
 315 950 nm 745 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP550/34
 300 690 nm 405 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP550/37
 300 690 nm 405 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP695/25.5
 65 720 nm 680 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP850/35.5
 160 910 nm 820 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP880/25.5
 130 930 nm 845 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP850/25.5
 160 910 nm 820 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP500/49
 248 555 nm 440 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP850/49
 160 910 nm 820 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP550/C-MOUNT
 300 690 nm 405 nm N/A N/A C-Mount bandpass Midwest Optical 405 - 690
MIDOPT FIL BP500/40.5
 248 555 nm 440 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP470/40.5
 85 495 nm 425 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP550/62
 300 690 nm 405 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP850/77
 160 910 nm 820 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP660/46
 60 680 nm 640 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP470/55
 85 495 nm 425 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP470/58
 85 495 nm 425 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP635/37.5
 60 645 nm 615 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP850/62
 160 910 nm 820 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP550/58
 300 690 nm 405 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP800/30.5
 315 950 nm 745 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP550/35.5
 300 690 nm 405 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP850/30.5
 160 910 nm 820 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP525/46
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP850/43
 160 910 nm 820 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP635/37
 60 645 nm 615 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP525/49
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP660/67
 60 680 nm 640 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP635/43
 60 645 nm 615 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP590/37.5
 75 600 nm 1100 nm; 560 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP880/27
 130 930 nm 845 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP525/37.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP365/30.5
 80 400 nm 335 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP850/52
 160 910 nm 820 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP550/52
 300 690 nm 405 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP500/C-MOUNT
 248 555 nm 440 nm N/A N/A C-Mount bandpass Midwest Optical 440 - 555
MIDOPT FIL BP695/30.5
 65 720 nm 680 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP695/52
 65 720 nm 680 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP470/82
 85 495 nm 425 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP800/52
 315 950 nm 745 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP880/30.5
 130 930 nm 845 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP880/52
 130 930 nm 845 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP735/30.5
 90 780 nm 715 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP735/52
 90 780 nm 715 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP525/67
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP735/C-MOUNT
 90 780 nm 715 nm N/A N/A C-Mount bandpass Midwest Optical 715 - 780
MIDOPT FIL BP635/86
 60 645 nm 615 nm N/A N/A M86 x 1.0 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP470/43
 85 495 nm 425 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP550/40.5
 300 690 nm 405 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP470/37
 85 495 nm 425 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP590/C-MOUNT
 75 600 nm 1100 nm; 560 nm N/A N/A C-Mount bandpass Midwest Optical 560 - 600
MIDOPT FIL BP590/37
 75 600 nm 1100 nm; 560 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP635/22.5
 60 645 nm 615 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP470/62
 85 495 nm 425 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP365/C-MOUNT
 80 400 nm 335 nm N/A N/A C-Mount bandpass Midwest Optical 335 - 400
MIDOPT FIL BP660/43
 60 680 nm 640 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP635/82
 60 645 nm 615 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP365/58
 80 400 nm 335 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP880/40.5
 130 930 nm 845 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP880/C-MOUNT
 130 930 nm 845 nm N/A N/A C-Mount bandpass Midwest Optical 845 - 930
MIDOPT FIL BP735/40.5
 90 780 nm 715 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP800/27
 315 950 nm 745 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP800/46
 315 950 nm 745 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP800/43
 315 950 nm 745 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP800/22.5
 315 950 nm 745 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP470/22.5
 85 495 nm 425 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP525/22.5
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP660/22.5
 60 680 nm 640 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP850/22.5
 160 910 nm 820 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP505/30.5
 90 550 nm 485 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP590/35.5
 75 600 nm 1100 nm; 560 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP550/55
 300 690 nm 405 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP550/72
 300 690 nm 405 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP590/25.5
 75 600 nm 1100 nm; 560 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP500/82
 248 555 nm 440 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP590/30.5
75 600 nm 1100 nm; 560 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP525/62
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP635/62
 60 645 nm 615 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP880/49
 130 930 nm 845 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP324/55
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP365/52
 80 400 nm 335 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP550/37.5
 300 690 nm 405 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP550/46
 300 690 nm 405 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP635/72
 60 645 nm 615 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP850/34
 160 910 nm 820 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP850/37
160 910 nm 820 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP500/43
 248 555 nm 440 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP500/46
 248 555 nm 440 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP505/46
 90 550 nm 485 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP470/67
 85 495 nm 425 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP735/27
 90 780 nm 715 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP695/27
 65 720 nm 680 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP505/35.5
 90 550 nm 485 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP500/35.5
 248 555 nm 440 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP525/55
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP525/34
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP470/46
 85 495 nm 425 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP525/72
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP470/105
 85 495 nm 425 nm N/A N/A M105 x 1.0 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP735/35.5
 90 780 nm 715 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP590/46
 75 600 nm 1100 nm; 560 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP850/40.5
 160 910 nm 820 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP660/37.5
 60 680 nm 640 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP660/52
 60 680 nm 640 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP850/37.5
 160 910 nm 820 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP800/35.5
 315 950 nm 745 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP735/49
 90 780 nm 715 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP500/58
 248 555 nm 440 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP470/37.5
 85 495 nm 425 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP590/55
 75 600 nm 1100 nm; 560 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP660/55
 60 680 nm 640 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP695/55
 65 720 nm 680 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP470/52
 85 495 nm 425 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP800/49
 315 950 nm 745 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP500/30.5
 248 555 nm 440 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP850/72
 160 910 nm 820 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP470/72
 85 495 nm 425 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP590/43
 75 600 nm 1100 nm; 560 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP635/52
 60 645 nm 615 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP525/52
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP635/48
 60 645 nm 615 nm N/A N/A M48 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP365/40.5
 80 400 nm 335 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP800/55
 315 950 nm 745 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP590/49
 75 600 nm 1100 nm; 560 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP525/58
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP850/46
 160 910 nm 820 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP735/25.5
 90 780 nm 715 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP525/77
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP735/37.5
 90 780 nm 715 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP550/43
 300 690 nm 405 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP365/35.5
 80 400 nm 335 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP695/35.5
 65 720 nm 680 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP880/35.5
 130 930 nm 845 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP800/37.5
 315 950 nm 745 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP365/37
 80 400 nm 335 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP485/35.5
 285 585 nm 380 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP525/37
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP590/34
 75 600 nm 1100 nm; 560 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP695/67
 65 720 nm 680 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP880/37
 130 930 nm 845 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP485/30.5
 285 585 nm 380 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP880/62
 130 930 nm 845 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP505/86
 90 550 nm 485 nm N/A N/A M86 x 1.0 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP660/37
 60 680 nm 640 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP505/43
 90 550 nm 485 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP850/39
 160 910 nm 820 nm N/A N/A M39 x 0.5 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP365/22.5
 80 400 nm 335 nm N/A N/A M22.5 x 0.5 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP324/67
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP505/40.5
 90 550 nm 485 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP500/62
 248 555 nm 440 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP880/55
 130 930 nm 845 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP735/62
 90 780 nm 715 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP485/49
 285 585 nm 380 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP525/43
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP365/72
 80 400 nm 335 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP365/55
 80 400 nm 335 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP735/13.25
 90 780 nm 715 nm N/A N/A M13.25 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP505/34
 90 550 nm 485 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP590/52
 75 600 nm 1100 nm; 560 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP590/72
 75 600 nm 1100 nm; 560 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP635/77
 60 645 nm 615 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP1000/25.5
 150 1030 nm 930 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP550/67
 300 690 nm 405 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP485/25.5
 285 585 nm 380 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP485/52
 285 585 nm 380 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP324/40.5
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP635/105
 60 645 nm 615 nm N/A N/A M105 x 1.0 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP525/105
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M105 x 1.0 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP735/46
 90 780 nm 715 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP800/62
 315 950 nm 745 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP505/82
 90 550 nm 485 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP324/77
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP845/C-MOUNT
 60 865 nm 830 nm N/A N/A M25.4 bandpass Midwest Optical 830 - 865
MIDOPT FIL BP505/58
 90 550 nm 485 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP365/62
 80 400 nm 335 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP485/67
 285 585 nm 380 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP590/58
 75 600 nm 1100 nm; 560 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP365/77
 80 400 nm 335 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP635/95
 60 645 nm 615 nm N/A N/A M95 x 1.0 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP1000/48
 150 1030 nm 930 nm N/A N/A M48 x 0.75 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP660/77
 60 680 nm 640 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP365/82
 80 400 nm 335 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP880/46
 130 930 nm 845 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP735/77
 90 780 nm 715 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP470/13,25
 85 495 nm 425 nm N/A N/A M13.25 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP1550/40.5
 160 1645 nm 1485 nm N/A N/A M40.5 x 0.75 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP450/C-MOUNT
 60 470 nm 425 nm N/A N/A C-Mount bandpass Midwest Optical 425 - 470
MIDOPT FIL BP365/43
 80 400 nm 335 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP450/37.5
 60 470 nm 425 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP485/72
 285 585 nm 380 nm N/A N/A M72 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP485/C-MOUNT
 285 585 nm 380 nm N/A N/A C-Mount bandpass Midwest Optical 380 - 585
MIDOPT FIL BP735/34
 90 780 nm 715 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP450/25.5
 60 470 nm 425 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP1000/35.5
 150 1030 nm 930 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP450/27
 60 470 nm 425 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP500/52
 248 555 nm 440 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP500/37.5
 248 555 nm 440 nm N/A N/A M35.5 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP450/43
 60 470 nm 425 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP450/35.5
 60 470 nm 425 nm N/A N/A M35.5 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP1550/35.5
 160 1645 nm 1485 nm N/A N/A M35.5 x 0.75 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP324/34
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP800/34
 315 950 nm 745 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP324/30.5
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP450/52
 60 470 nm 425 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP450/30.5
 60 470 nm 425 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP1000/58
 150 1030 nm 930 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP850/R20 GLASS
 160 910 nm 820 nm N/A N/A No Filter Thread bandpass Midwest Optical 820 - 910
MIDOPT FIL BP1000/52
 150 1030 nm 930 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP695/37.5
 65 720 nm 680 nm N/A N/A M37.5 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP324/37
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP324/43
 105 365 nm; 375 nm; 750 nm 290 nm; 690 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 290 - 365; 690 - 750
MIDOPT FIL BP550/95
 300 690 nm 405 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 405 - 690
MIDOPT FIL BP450/77
 60 470 nm 425 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP500/67
 248 555 nm 440 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP450/40.5
 60 470 nm 425 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP340/67
 80 365 nm 315 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 315 - 365
MIDOPT FIL BP450/67
 60 470 nm 425 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP800/77
 315 950 nm 745 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 745 - 950
MIDOPT FIL BP695/37
 65 720 nm 680 nm N/A N/A M37 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP1000/27
 150 1030 nm 930 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP1550/27
 160 1645 nm 1485 nm N/A N/A M27 x 0.5 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP505/77
 90 550 nm 485 nm N/A N/A M77 x 0.75 bandpass Midwest Optical 485 - 550
MIDOPT FIL BP365/37.5
 80 400 nm 335 nm N/A N/A M37.5 x 0.75 bandpass Midwest Optical 335 - 400
MIDOPT FIL BP880/77
 130 930 nm 845 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP850/82
 160 910 nm 820 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP590/39
 75 600 nm 1100 nm; 560 nm N/A N/A M39 x 0.5 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP340/C-MOUNT
 80 365 nm 315 nm N/A N/A C-Mount bandpass Midwest Optical 315 - 365
MIDOPT FIL BP500/37
 248 555 nm 440 nm N/A N/A M37 x 0.75 bandpass Midwest Optical 440 - 555
MIDOPT FIL BP880/37.5
 130 930 nm 845 nm N/A N/A M37.5 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP1000/30,5
 150 1030 nm 930 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP450/46
 60 470 nm 425 nm N/A N/A M46 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP450/58
 60 470 nm 425 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP850/95
 160 910 nm 820 nm N/A N/A M95 x 1.0 bandpass Midwest Optical 820 - 910
MIDOPT FIL BP1550/30.5
 160 1645 nm 1485 nm N/A N/A M30.5 x 0.5 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP660/82
 60 680 nm 640 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 640 - 680
MIDOPT FIL BP880/82
 130 930 nm 845 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP695/34
 65 720 nm 680 nm N/A N/A M34 x 0.5 bandpass Midwest Optical 680 - 720
MIDOPT FIL BP845/55
 60 865 nm 830 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 830 - 865
MIDOPT FIL BP485/82
 285 585 nm 380 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP1550/25,5
 160 1645 nm 1485 nm N/A N/A M25.5 x 0.5 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP1000/43
 150 1030 nm 930 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP635/39
 60 645 nm 615 nm N/A N/A M39 x 0.75 bandpass Midwest Optical 615 - 645
MIDOPT FIL BP845/52
 60 865 nm 830 nm N/A N/A M52 x 0.75 bandpass Midwest Optical 830 - 865
MIDOPT FIL BP485/58
 285 585 nm 380 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP525/82
 80 1100 nm; 555 nm 1050 nm; 500 nm N/A N/A M82 x 0.75 bandpass Midwest Optical 1050 - 1100; 500 - 555
MIDOPT FIL BP450/55
 60 470 nm 425 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP590/67
 75 600 nm 1100 nm; 560 nm N/A N/A M67 x 0.75 bandpass Midwest Optical 560 - 600
MIDOPT FIL BP660/18
 60 680 nm 640 nm N/A N/A Slip bandpass Midwest Optical 640 - 680
MIDOPT FIL BP845/43
 60 865 nm 830 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 830 - 865
MIDOPT FIL BP485/40.5
 285 585 nm 380 nm N/A N/A M40.5 x 0.5 bandpass Midwest Optical 380 - 585
MIDOPT FIL BP880/34
 130 930 nm 845 nm N/A N/A M34.5 x 0.5 bandpass Midwest Optical 845 - 930
MIDOPT FIL BP1000/55
 150 1030 nm 930 nm N/A N/A M55 x 0.75 bandpass Midwest Optical 930 - 1030
MIDOPT FIL BP1550/49
 160 1645 nm 1485 nm N/A N/A M49 x 0.75 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP735/43
 90 780 nm 715 nm N/A N/A M43 x 0.75 bandpass Midwest Optical 715 - 780
MIDOPT FIL BP470/39
 85 495 nm 425 nm N/A 39 M39 x 0.5 bandpass Midwest Optical 425 - 495
MIDOPT FIL BP450/62
 60 470 nm 425 nm N/A N/A M62 x 0.75 bandpass Midwest Optical 425 - 470
MIDOPT FIL BP550/75 GLASS
 300 690 nm 405 nm N/A N/A No Filter Thread bandpass Midwest Optical 405 - 690
MIDOPT FIL BP850/R112x1
 160 910 nm 820 nm 112 112 No Filter Thread bandpass Midwest Optical 820 - 910
MIDOPT FIL BP850/R112x3
 160 910 nm 820 nm 112 112 No Filter Thread bandpass Midwest Optical 820 - 910
MIDOPT FIL BP1550/58
 160 1645 nm 1485 nm N/A N/A M58 x 0.75 bandpass Midwest Optical 1485 - 1645
MIDOPT FIL BP470/49.5 GLASS
 85 495 nm 425 nm N/A N/A No Filter Thread bandpass Midwest Optical 425 - 495
MIDOPT FIL BP660/49.5 GLASS
 60 680 nm 640 nm N/A N/A No Filter Thread bandpass Midwest Optical 640 - 680

Need more information?

Contact our experts to get personalized recommendations.

Contact Tech News
