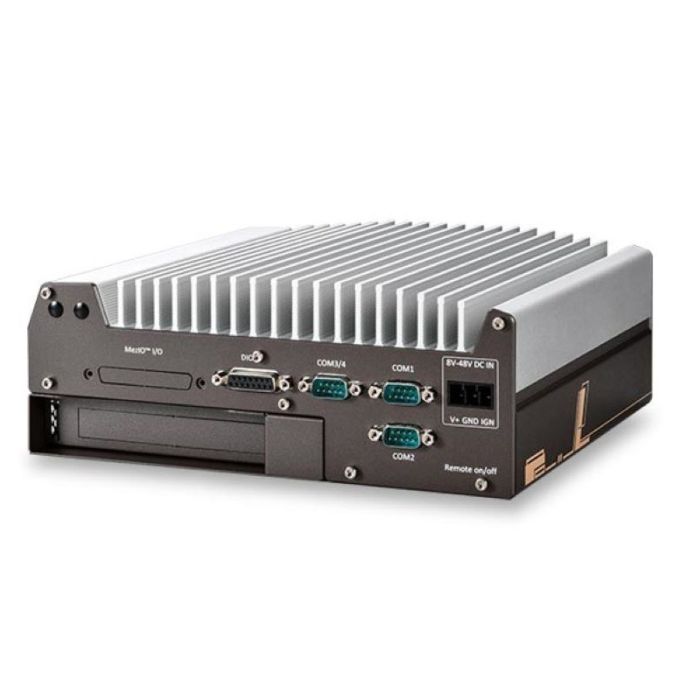

Neousys - Nuvo-11000
The Neousys Nuvo-11000 series of rugged embedded computers is based on the latest Core™ Ultra 200 processors which offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power. Combing a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.
Key Features
- Processor: Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
- Memory: Up to 96 GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)

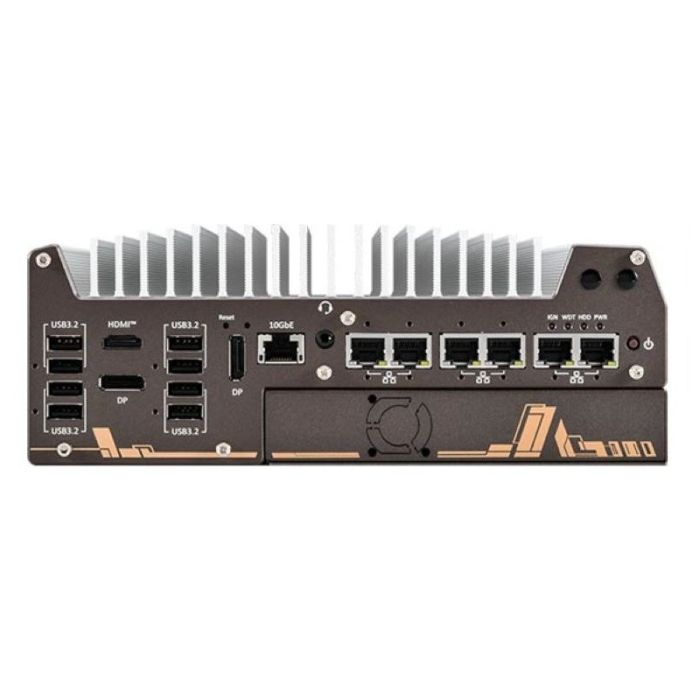

- Interface: Up to 5 x 2.5GbE and 1x GigE ports with optional PoE+
- Up to 8x USB 3.2 Gen2 ports
- Storage: 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD
- 2x internal SATA port for 2.5” HDD/ SSD
- 4-CH isolated DI and 4-CH isolated DO
- 1x optional 10GBASE-T Ethernet
- Expansion Cassette for PCIe add-on card accommodation
- MezIO® interface for easy function expansion
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | PC: Product type | PC: Processor type | PC: RAM (GB) | PC: I/O Interface | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | 240 | 77 | 212 | 96 | 4.400 | |
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | N/A | |
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | N/A | |
| wallmount | Intel Alder Lade Core | N/A | 2x Gigabit Ethernet; USB 2.0; USB 3.1 Gen 2 | Neousys | N/A | N/A | N/A | N/A | N/A |
Why choose Neousys - Nuvo-11000?
High-end processors for demanding vision applications
Intel® Core™ Ultra 200 Series Fanless Embedded Computer with 2.5GbE/ GbE, USB 3.2, 8-CH DIO, optional 10GbE and Expansion Cassette & MezIO® Interface
Wide temperature range operation
The Nuvo-11000 series fanless embedded computer features a patented passive cooling thermal design that can effectively channel heat from the heat sink and truly operate over a wide temperature range from -25°C to 70°C while under 100% CPU load.
Patented expansion cassette
The Nuvo-11000 series inherits Neousys' patented expansion cassette design to provide great versatility by allowing additional installation of PCIe add-on cards.
MezIO Interface for incorporating further I/O functions
The MezIO interface is designed to integrate application-oriented I/O functions into an embedded system. Neousys offers a range of Nuvo-11000 compatible MezIO modules with various I/Os such as RS-232/422/485, isolated DIO and ignition power control. Users can also leverage signals/ power supplied by the MezIO interface to customise their own module. Neousys MezIO provides a cost-effective way to build a tailor-made embedded system for your application.
