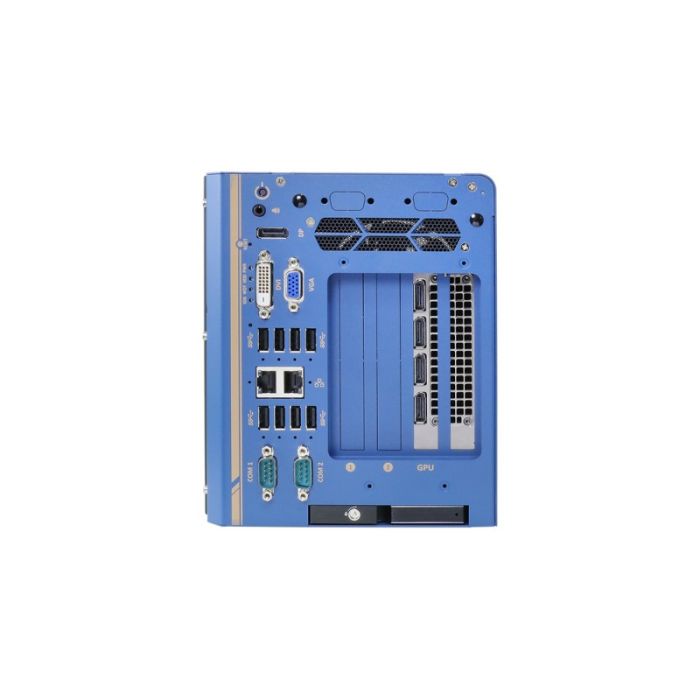

Neousys - Nuvo-8108GC-QD
Industrial-grade edge AI platform specially designed for NVIDIA RTX A6000 and RTX A4500 GPU cards
Key Features
- Processor: Supports Intel Xeon E or 9th/ 8th Gen Core i7/ i5 LGA1151 CPU
- Memory: Up to 128GB ECC/ non-ECC DDR4 2133 (4x SODIMM)
- Graphic card: Supports NVIDIA® RTX A6000/A4500 GPU cards
- Display: 1x VGA, 1x DVI-D, 1x DisplayPort
- Interface GigE: 2x Gigabit Ethernet
- Interface USB: 4x USB 3.1 Gen2 (10 Gbps) , 4x USB 3.1 Gen1 (5 Gbps) , 1x USB 2.0 (internal for dongle use)
- Storage: 1x hot-swappable HDD tray for 2.5" HDD/ SSD, 1x Internal SATA port for 2.5" HDD/ SSD, 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD, 2x full-size mSATA port
- Expansion interfaces: One x16 (8-lanes), one x8 (4-lanes), Gen3 PCIe slots for add-on cards
- Miscellaneous: Patented thermal design for -25°C to 60°C rugged operation; patented damping brackets to withstand 3 Grms vibration
- Power supply: 8~ 48V wide-range DC input with built-in ignition power control
- Dimension: 170.2 mm (W) x 360 mm (D) x 201.8 mm (H)
- Weight: 5.8 Kg
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | PC: Product type | PC: Processor type | PC: RAM (GB) | PC: I/O Interface | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| wallmount | Intel Core i3; Intel Core i5; Intel Core i7; Intel Xeon | 128 | Audio; DisplayPort; DVI-D; Gigabit Ethernet; RS-232; RS-422; RS-485; USB 2.0; USB 3.1 Gen 1; USB 3.1 Gen 2; VGA | Neousys | 360 | 201.8 | 170.2 | 128 | 5.800 |
Why choose Neousys - Nuvo-8108GC-QD?
Rugged edge AI platform specially designed for NVIDIA RTX A6000 and RTX A4500
The GPUs offer tremendous computing power and product longevity, to take GPU-accelerated edge AI applications such as autonomous driving, vision inspection and intelligent video analytics to the next level of reliability and availability.
Proven thermal design prepared for harsh conditions
The Neousys GPU computing platform series features a patented thermal design for true wide temperature operation. The effective heat dissipation design ensures that the Nuvo-8108GC-QD operates reliably at 100% load up to 60°C to prevent CPU/GPU throttling under harsh conditions.
Rugged connectivity with screw-lock mechanisms
The Neousys GPU computing platform series features front-accessible Gigabit Ethernet and USB 3.1 Gen2/ Gen1 ports with screw lock mechanisms to secure cable connections, making it ideal for in-vehicle and harsh industrial environments.
Reliable power design
The power delivery design of Nuvo-8108GC-QD is capable of handling a graphics card power consumption up to 250W for edge AI applications. It supports 8~48V wide-range DC input with built-in ignition power control; making it feasible to be deployed on a vehicle and directly power it via the vehicle’s electrical power system.
Vibration and shockproof to make it rock-steady
Nuvo-8108GC-QD comes with patented damping brackets and it can withstand up to 3 Grms to protect the system from vibration when deployed in an in-vehicle environment. The system is also compliant with the MIL-STD-810G standard.
