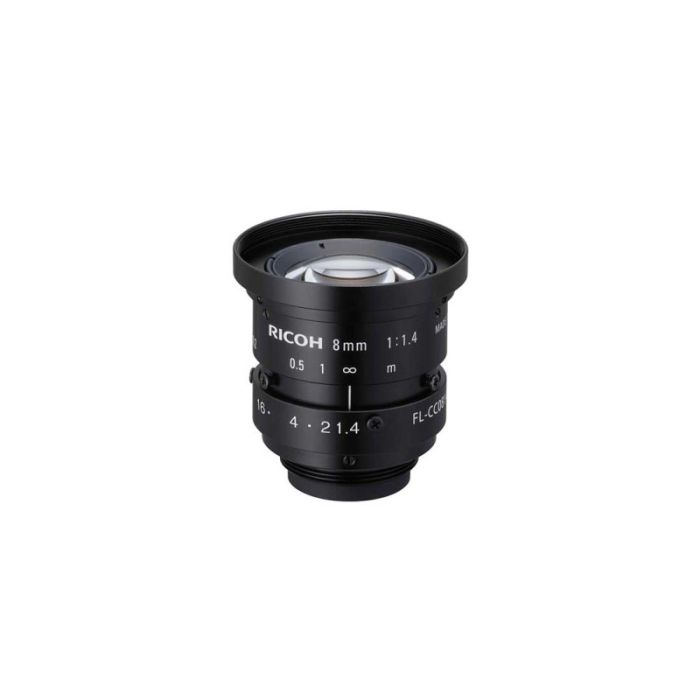

Ricoh - FL-A-2M
The Ricoh FL-2A-M series comprises compact 2 MP C-Mount lenses with short MOD, improved brightness and periphery performance, and ultra-low distortion.
Key Features
- Sensor size: up to 2/3"
- Image Circle: 11mm
- Resolution: 2 MP, supports 5.39µm pixel pitch
- Focal length: 6, 8, 12, 16, 25, 50mm
- Camera mount: C-Mount
- Distortion: <|0.56|% (varies by model)
- Aperture: F1.4 to F16.0 (FL-CC5024A-2M: F2.4-F22)
- Aperture Control: Manual (lock-screw)
- Working Distance: 0.1m to Infinity (FL-CC5024A-2M: 0.3m)
- Focus Control: Manual (lock-screw)
- Wavelength Range: VIS (400-700nm)
- Filter size: M30.5x0.5 (varies by model)
- Length: <59.9mm (varies by model)
- Diameter: <48mm (varies by model)
- Weight: <76g (FL-CC0614A-2M: 149g)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 2/3" | 11 | C-Mount | 5.39 µm | F 2.4 | 300 | Visible | M30.5 x 0.5 | N/A | Optowl | 2.0 | |
| 6 | 2/3" | 11 | C-Mount | 5.39 µm | F 1.4 | 100 | Visible | N/A | N/A | Optowl | 2.0 | |
| 8 | 2/3" | 11 | C-Mount | 5.39 µm | F 1.4 | 100 | Visible | M40.5 x 0.5 | N/A | Optowl | 2.0 | |
| 12 | 2/3" | 11 | C-Mount | 5.39 µm | F 1.4 | 100 | Visible | M27 x 0.5 | N/A | Optowl | 2.0 | |
| 16 | 2/3" | 11 | C-Mount | 5.39 µm | F 1.4 | 100 | Visible | M27 x 0.5 | N/A | Optowl | 2.0 | |
| 25 | 2/3" | 11 | C-Mount | 5.39 µm | F 1.4 | 100 | Visible | M30.5 x 0.5 | N/A | Optowl | 2.0 |
