Schneider Kreuznach - Longpass filters
High quality filters that transmit the longer wavelength range with excellent stability of cut-on wavelengths.
Key Features
- Average transmission 95 %
- Steep slopes
- Wavelength tolerance +/- 1 nm
- Deep blocking/ high OD
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Bandwidth (FWHM) | Cut-off wavelength | Cut-on wavelength | Dimension (height, mm) | Dimension (width, mm) | Filter thread | Filter type | Manufacturer | Useful Range (nm) |
|---|---|---|---|---|---|---|---|---|---|
| N/A | N/A | 430 nm | N/A | N/A | M25.5 x 0.5 | longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 430 nm | N/A | N/A | M27 x 0.5 | longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 430 nm | N/A | N/A | M30.5 x 0.5 | longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 430 nm | N/A | N/A | M40.5 x 0.5 | acrylic longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 765 nm | N/A | N/A | M40.5 x 0.5 | longpass | Schneider Kreuznach | 790 - 1000 | |
| N/A | N/A | 820 nm | N/A | N/A | M25.5 x 0.5 | longpass | Schneider Kreuznach | 840 - 1010 | |
| N/A | N/A | 820 nm | N/A | N/A | M35.5 x 0.5 | longpass | Schneider Kreuznach | 840 - 1010 | |
| N/A | N/A | 430 nm | N/A | N/A | C-Mount | longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 820 nm | N/A | N/A | C-Mount | longpass | Schneider Kreuznach | 840 - 1010 | |
| N/A | N/A | 900 nm | N/A | N/A | M40.5 x 0.5 | longpass | Schneider Kreuznach | 920 - 1100 | |
| N/A | N/A | 430 nm | N/A | N/A | M43 x 0.5 | longpass | Schneider Kreuznach | 445 - 950 | |
| N/A | N/A | 820 nm | N/A | N/A | No Filter Thread | longpass | Schneider Kreuznach | 840 - 1010 | |
| N/A | N/A | 820 nm | N/A | N/A | M30.5 x 0.5 | longpass | Schneider Kreuznach | 840 - 1010 | |
| N/A | N/A | 900 nm | N/A | N/A | C-Mount | longpass | Schneider Kreuznach | 920 - 1100 |
Why choose Schneider Kreuznach - Longpass filters?

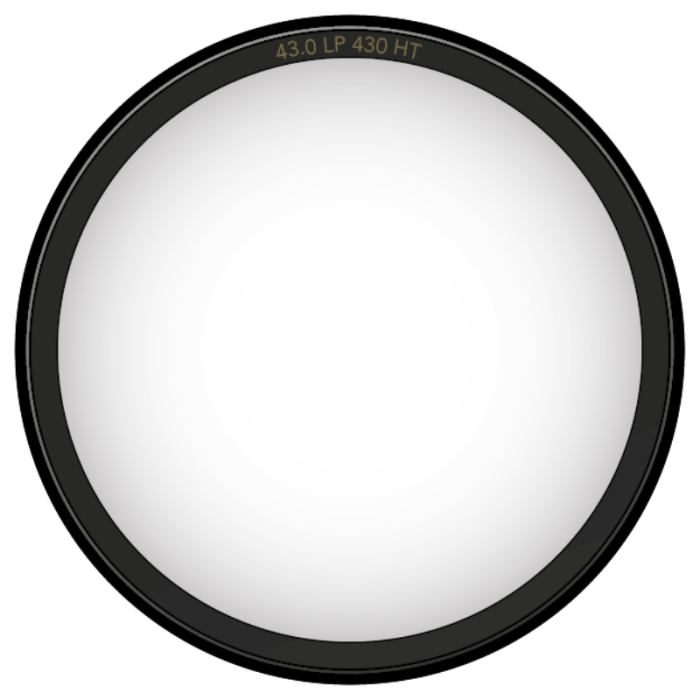

LP 430 HT
- Transmission Range: 445 nm - 950 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 460 HT
- Transmission Range: 475 nm - 980 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 495 HT
- Transmission Range: 515 nm - 900 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 515 HT
- Transmission Range: 540 nm - 900 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 530 HT
- Transmission Range: 550 nm - 900 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 565 HT
- Transmission Range: 585 nm - 950 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 590 HT
- Transmission Range: 610 nm - 900 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 610 HT
- Transmission Range: 630 nm - 950 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 615 HT
- Transmission Range: 400 nm - 600 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 630 HT
- Transmission Range: 650 nm - 950 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 695 HT
- Transmission Range: 715 nm - 1000 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
LP 765 HT
- Transmission Range: 790 nm - 1000 nm
- Transmission (average): 95%
- Blocking: UV-400 nm; Transmission (absolut): >90%
- Coating ULRIR
