Schneider-Kreuznach - CITRINE
2/3" C-mount lenses with a spectral range of 400 nm to 1000 nm
Key Features
- Maximum sensor size: 2/3"
- Interface: C-mount
- Minimum pixel size: 3.5 µm
- Filter thread: M30.5x0.5 (M62x0.75 for the 4.8 mm focal length lens)
- Focal length: 4.8 mm, 8 mm, 12 mm, 17 mm, 23 mm, 35 mm
- Miscellaneous: Ruggedised option available for all types
- Broadband coating: 400 nm to 1000 nm
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

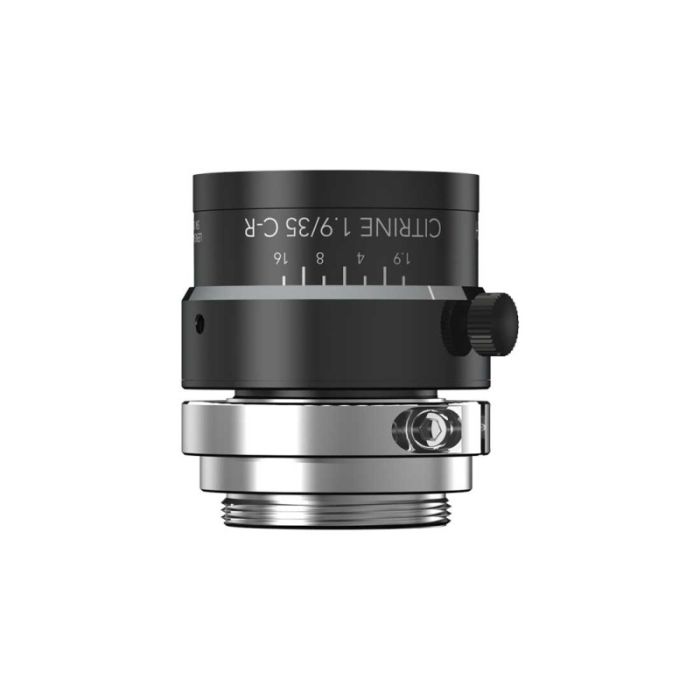

| F 1.9 | C-Mount | M30.5 x 0.5 | 35 | 38.5 | 0.100 | Schneider Kreuznach | 3.5 µm | 246 | 3.0 - 5.0 | 11 | VIS-NIR | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 8 | 37.5 | 0.100 | Schneider Kreuznach | 3.5 µm | 70 | 3.0 - 5.0 | 11 | VIS-NIR | |

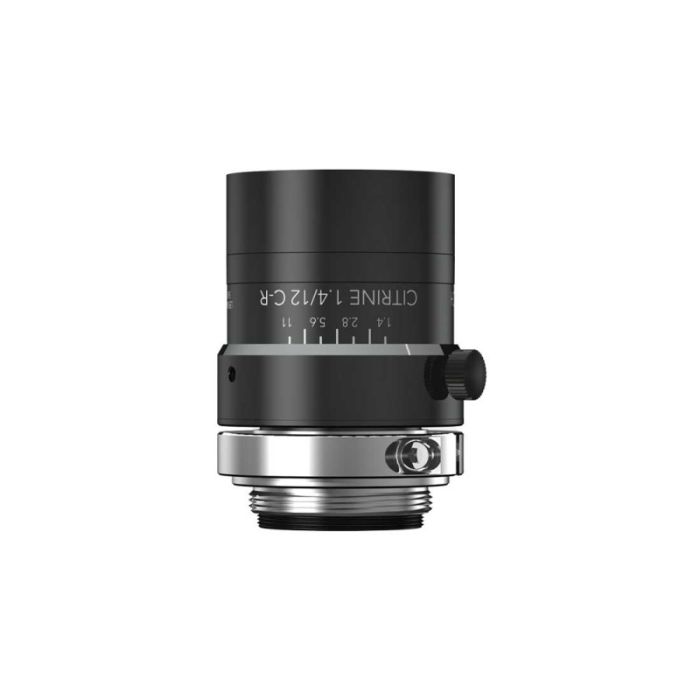

| F 1.4 | C-Mount | M30.5 x 0.5 | 12 | 48.5 | 0.100 | Schneider Kreuznach | 3.5 µm | 12 | 3.0 - 5.0 | 11 | VIS-NIR | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 17 | 37.8 | 0.100 | Schneider Kreuznach | 3.5 µm | 42 | 3.0 - 5.0 | 11 | VIS-NIR | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 23 | 40.4 | 0.100 | Schneider Kreuznach | 3.5 µm | 82 | 3.0 - 5.0 | 11 | VIS-NIR | |

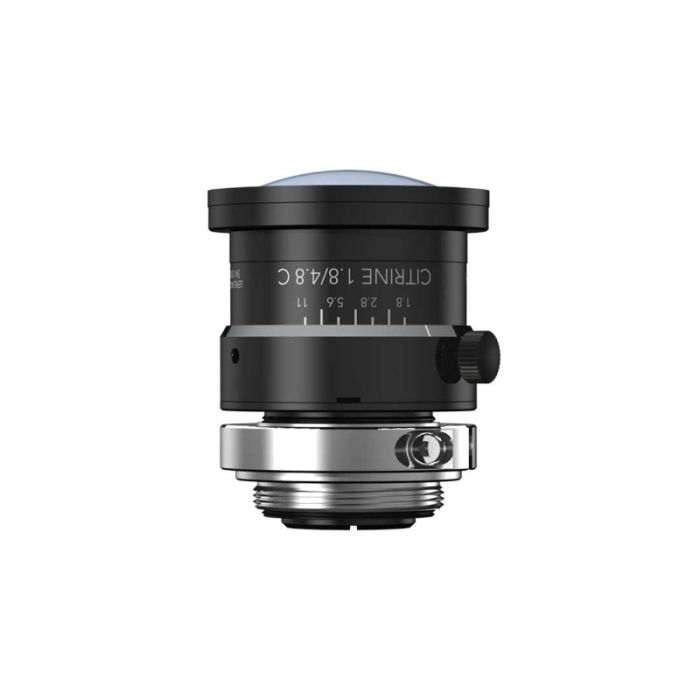

| F 1.8 | C-Mount | M62 x 0.75 | 4.8 | 47.6 | 0.100 | Schneider Kreuznach | 3.5 µm | 34 | 3.0 - 5.0 | 11 | VIS-NIR |
