Smart Vision Lights - LXE300
High-intensity light with built-in driver, analog control & IP65 – daisy-chain up to 6 units for flexible, robust lighting in industrial setups.
Key Features
- Colour: white, blue, green, red, IR (850 nm) and IR (940 nm)
- Features: direct connect linear light, multi-drive technology
- Dimensions: 305 mm x 52 mm x 42 mm
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| frontlight | bar light | direct | Red | 300 | N/A | N/A | yes | narrow | N/A | 625 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | Blue | 300 | N/A | N/A | yes | narrow | N/A | 470 | 41 | N/A | IP65 | 1 | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | Green | 300 | N/A | N/A | yes | narrow | N/A | 530 | 41 | N/A | IP65 | 1 | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | IR | 300 | N/A | N/A | yes | narrow | N/A | 850 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | IR | 300 | N/A | N/A | yes | narrow | N/A | 940 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | White | 300 | N/A | N/A | yes | narrow | N/A | N/A | 41 | N/A | IP65 | 1 | Smart Vision Lights | 0.660 | |
| dark field; frontlight | bar light | direct | White | 300 | N/A | N/A | yes | line | N/A | N/A | 41 | N/A | IP65 | 1 | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | White | 300 | N/A | N/A | yes | wide | N/A | N/A | 41 | N/A | IP65 | 1 | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | IR | 300 | N/A | N/A | yes | wide | N/A | 850 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | Red | 300 | N/A | N/A | yes | wide | N/A | 625 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | IR | 300 | N/A | N/A | yes | line | N/A | 850 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 | |
| backlight; frontlight | bar light | direct | White | 300 | N/A | N/A | no | wide | N/A | N/A | 41 | Continuous; Overdrive | IP65 | 1 | Smart Vision Lights | 0.660 | |
| frontlight | bar light | direct | Red | 300 | N/A | N/A | yes | wide | N/A | 625 | 41 | N/A | IP65 | 0 (exempt) | Smart Vision Lights | 0.660 |
Why choose Smart Vision Lights - LXE300?

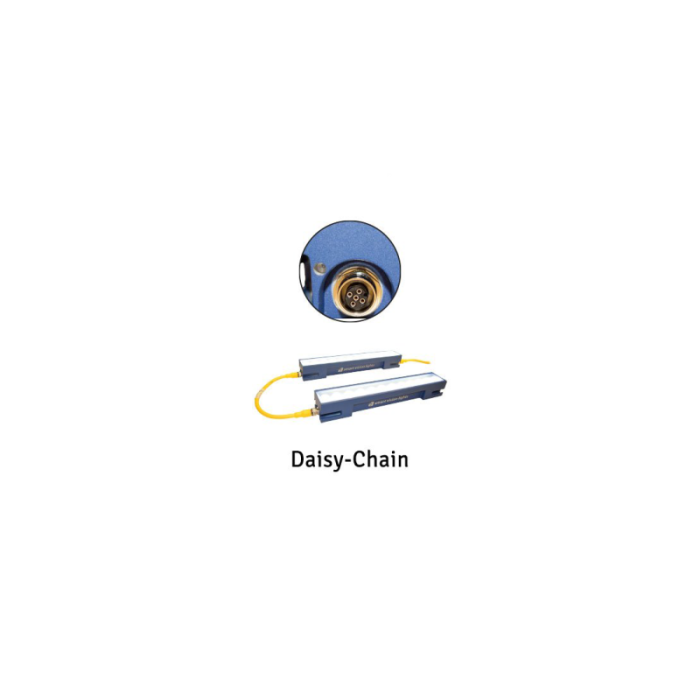

Flexible length by chaining up to 6 modules
The ability to directly connect up to six LXE300 lights allows for creating ultra-long linear lights at a fraction of the cost of traditional monolithic solutions - without any loss in uniformity. Daisy-chaining the lights by means of a cable connection allows the custom positioning of the single bars.
Made for rough industrial environments
The IP65 rating permits use in harsh environment without the need of additional housing. This reduces costs, but also allows a more flexible integration into the machine. The 5 pin M12 connector provides a stable and quick industry-grade connection.
Integrated driver
Built-in multi-drive allows the light to work in continuous operation or overdrive mode. The 1-10V analogue control line gives the user total control over intensity in the continuous mode. The user simply sets the product parameters to the maximum allowed intensity, according to the datasheet. The integrated driver makes it easy to trigger the illumination by using the strobe-out signal of the camera.
Various wavelengths available
The LXE300 Linear Light exists in a number of standard wavelengths: white (6500 K), blue (470 nm), green (530 nm), red (625 nm), IR (850 nm) and IR (940 nm). Additional wavelengths - especially for SWIR - are available upon request.
