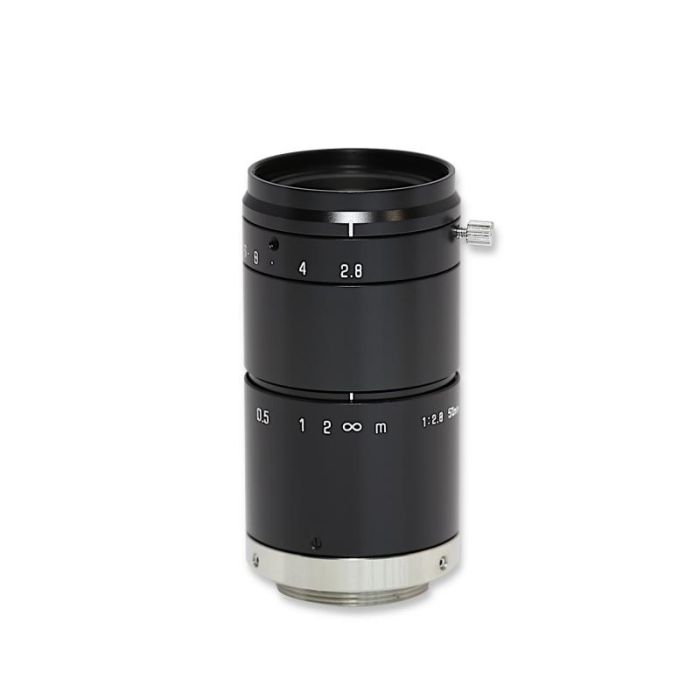

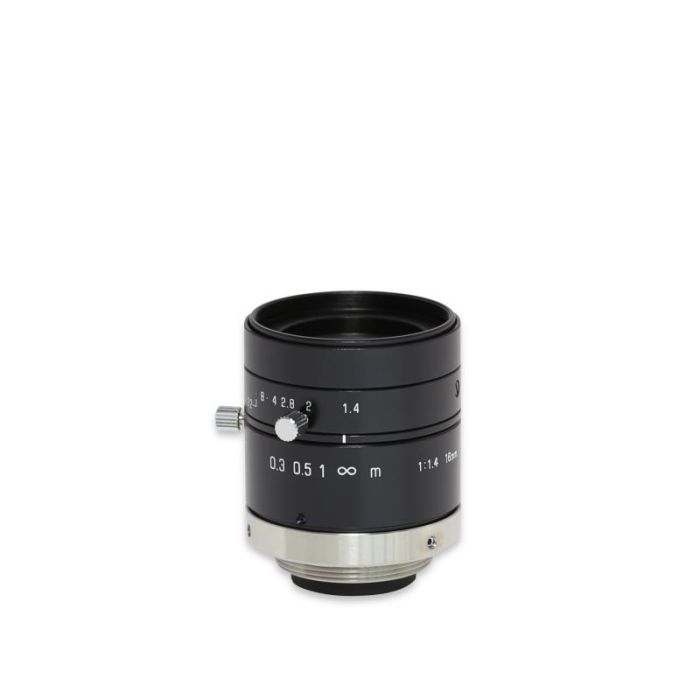

Tamron - 23FM
The 23FM lens series is made for 2/3” image sensors with up to 3 megapixel resolution and a 4.5 µm pixel pitch.
Key Features
- Maximum sensor size: 2/3"
- Minimum pixel size: 4.5 µm
- Camera mount: C-mount
- Focal length: 16, 25 and 50 mm
- Resolution: up to 3 MP
- Miscellaneous: low TV distortion, rugged mechanical design
- Miscellaneous: fixing screws for focus and aperture
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.4 | C-Mount | M30.5 x 0.5 | 16 | 0.150 | Tamron | 4.5 µm | 150 | 3.0 | 2/3" | 11 | Visible | |
| F 1.4 | C-Mount | M30.5 x 0.5 | 25 | 0.150 | Tamron | 4.5 µm | 150 | 3.0 | 2/3" | 11 | Visible | |
| F 2.8 | C-Mount | M30.5 x 0.5 | 50 | 0.200 | Tamron | 4.5 µm | 200 | 3.0 | 2/3" | 11 | Visible |
