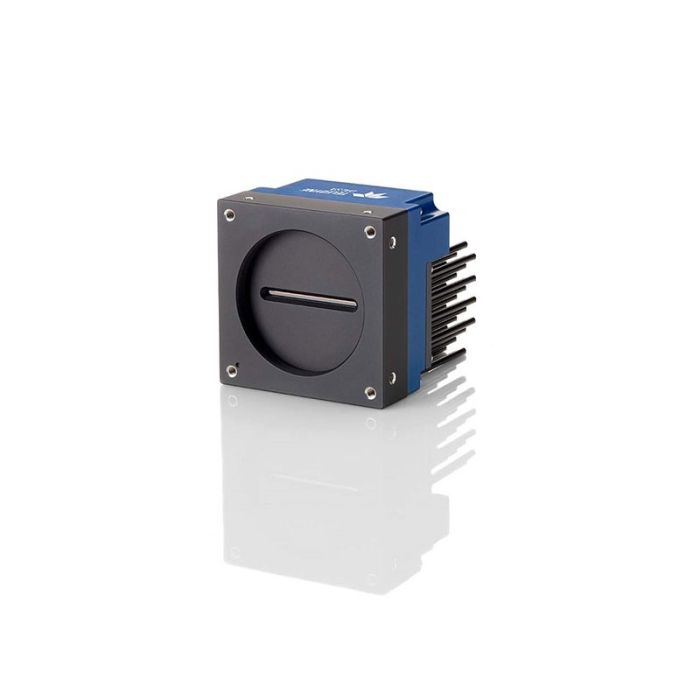

Teledyne DALSA - Linea HS
Advanced high speed, high sensitivity TDI camera for monochrome, HDR, multifield and super resolution imaging
Key Features
- Resolution: 8k, 16k or 32k
- Sensor: highly sensitive monochrome CMOS TDI with 192 (128 + 64) rows
- HDR mode image data is collected from 2 TDI arrays
- Line rate: up to 300 kHz
- Pixel size: 5 µm x 5 µm
- Features: TDI row selection: 64 or 128 rows, multiple AOIs for data reduction, flat field correction, multifield configuration
- Interface: CameraLink HS with direct fibre optic output of CX4 connector
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Wavelength range | Resolution Horizontal (Px) | Max. line freq. (kHz) | Lens mount | Interface | Scan type | Pixel size (µm) | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Sensor type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monochrome; Visible | 16384 | 300 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 97 | 140.5 | CMOS | 1.275 | |
| Monochrome; Visible | 8192 | 300 | M58 x 0.75 | CameraLink HS | TDI | 5 | Teledyne DALSA | 85 | 76 | 76 | CMOS | 0.500 | |
| Colour; Visible | 16384 | 400 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; Visible | 8192 | 40 | M58 x 0.75 | CameraLink HS | TDI | 5 | Teledyne DALSA | 85 | 76 | 76 | CMOS | 0.500 | |
| Monochrome; Visible | 16384 | 400 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA | 78.6 | 97 | 140.5 | CMOS | 1.275 | |
| Monochrome; Visible | 8192 | 280 | M58 x 0.75 | CameraLink HS | TDI | 5 | Teledyne DALSA | 85 | 76 | 76 | CMOS | 0.500 | |
| Monochrome; Visible | 16384 | 143 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; Visible | 13056 | 180 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 97 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; Visible | 32768 | 400 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 85 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; Visible | 13056 | 300 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 97 | 140.5 | CMOS | 1.275 | |
| Monochrome; Visible | 4096 | 300 | M58 x 0.75 | CameraLink HS | TDI | 5 | Teledyne DALSA | 85 | 76 | 76 | CMOS | 0.500 | |
| Monochrome; UV | 16384 | 400 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; UV | 9216 | 400 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; UV | 16384 | 200 | M90 x 1 | CameraLink HS | TDI | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 | |
| Monochrome; Visible | 16384 | 300 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA | 78.6 | 140.5 | 97 | CMOS | 1.200 |
Why choose Teledyne DALSA - Linea HS?
Precise inspection results even with difficult lighting conditions
The high resolution of the Linea HS shows the smallest details in the inspected object. This detail is not even lost in low light conditions due to the high responsitivity of the sensor. For unevenly lit scenes or objects with strong contrast, the camera can be set to the high dynamic range (HDR) mode. With 2 TDI arrays the dark and light areas can be imaged at the same time, thereby improving the inspection time throughput. It ensures that details have good contrast in both bright and dark parts of the image. This requires less effort for illumination setup and data preprocessing, while improving the image quality at the same time.
High data throughput for fast inspection tasks
The Linea HS delivers line rates of up to 300 kHz. The application profits from the bidirectionality, because multiple scans can be executed very quickly. Using the AOI and ROI capability of the Linea HS to only scan the relevant object areas, the amount of data that needs processing can be decreased. This saves CPU time, which in turn can be used to process more image data. As a result, actual inspection times can be reduced, while less CPU power is necessary due to the data reduction already performed within the camera.
High flexibility for different applications
The DALSA Linea HS monochrome offers a choice between 64 or 128 TDI (Time Delay Integration) rows in the main array, so you can adjust the number of lines used according to your current application requirements and light conditions. This makes it easy to react to changing application requirements.
Multiple areas of interest feature
The multi AOI feature allows the creation up to 4 AOIs. This can be useful when inspecting several separated lanes of objects with a single camera, just by ignoring the image area between these lanes. Acquiring only the relevant image content means a reduction of data to process. This relieves the actual image processing stage and gives room for either faster computation or allows for less powerful hardware systems. Faster transferring also offers the possibility to use more economic cabling configurations.
Multiple regions of interest (ROI) for flat field correction
Flat field correction (FFC) can be used to correct high intensity variations caused by either illumination or lensing. The device provides up to 4 regions within the pixel line to be specified for flat field correction. A well calibrated image improves and simplifies the image processing. It requires less complex image processing and therefore saves development time.
