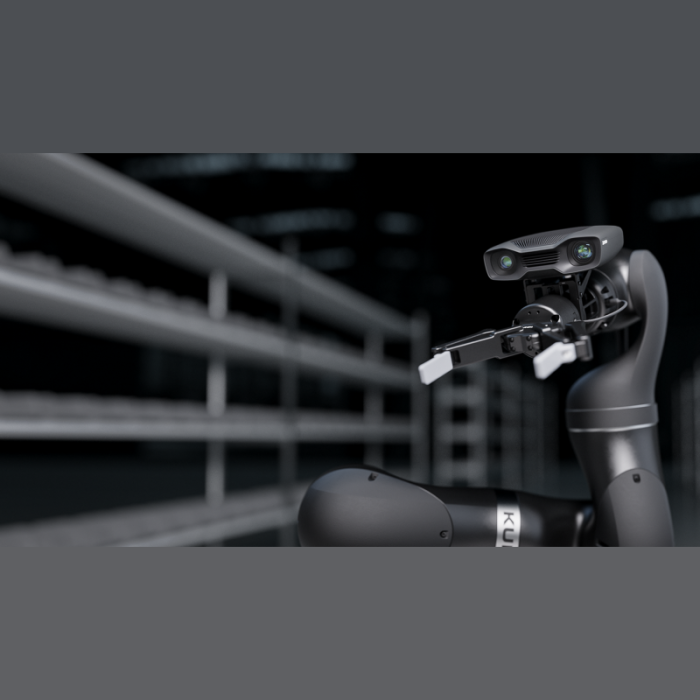

Zivid - Two
The second-generation colour 3D cameras from Zivid overcome limitations in image quality, trueness, and speed for better object recognition, accurate parts manipulation and short cycle times in logistics and manufacturing.
Key Features
- Field of View: from 514 mm x 321 mm up to 1426 mm x 894 mm
- Working distance: from 500 to 1400 mm
- Spatial resolution: 0.39 mm at 700 mm working distance
- Point precision: typically 60 µm at 700 mm working distance
- 3D technology: Structured light
- Resolution: 1944 x 1200 pixel
- Point cloud output: 3D (XYZ) + Colour (RGB) + SNR (Signal to Noise ratio) for each pixel
- Shutter: 1/600 s to 1/10 s
- Minimum acquisition time: 60 ms
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | LED risk group | Lens mount | Manufacturer | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 122 | 56 | 169 | 1944 | Gigabit Ethernet | 2 | None | Zivid | 3.45 | digital fringe projection | N/A | 7.88 | 0.880 | |
| 122 | 56 | 169 | 1944 | Gigabit Ethernet | 2 | None | Zivid | 3.45 | digital fringe projection | N/A | 7.88 | 0.880 |
Why choose Zivid - Two?
Image challenging objects
May your objects be shiny, reflective, cylindrical, very dark, or all at once: Zivid Two comes with artifact reduction technology (ART) and 3D high-dynamic range (HDR) imaging to enable you to see the whole scene with one 3D colour point cloud.
3D colour with white LED projector
You can output colour images, which gives you the advantage to segment your data also based on colour information. Additionally, the data acquisition time is independent of the object colours. Where for example a red laser on a blue object requires huge integration times, with the white LED projector of the Zivid Two the integration time is independent of the colour of your objects.
Unrivalled accuracy
The dimension trueness comes with an error of less than 0.2% (mean) and less than 0.1% (standard deviation). These values are improvable with Zivids new in-field calibration. Your advantage: even the most demanding pick and place or random bin picking applications are possible to solve with Zivid Two.
High speed for quick picking
Most picking applications have a direct relation of the return on invest to the cycling time of the vision system. Zivid improved the capture time down to less than 100 ms, improving your robot efficiency significantly.
