TELEDYNE MICRO CALIBIR IR-640-25MM
SKU#:
65623

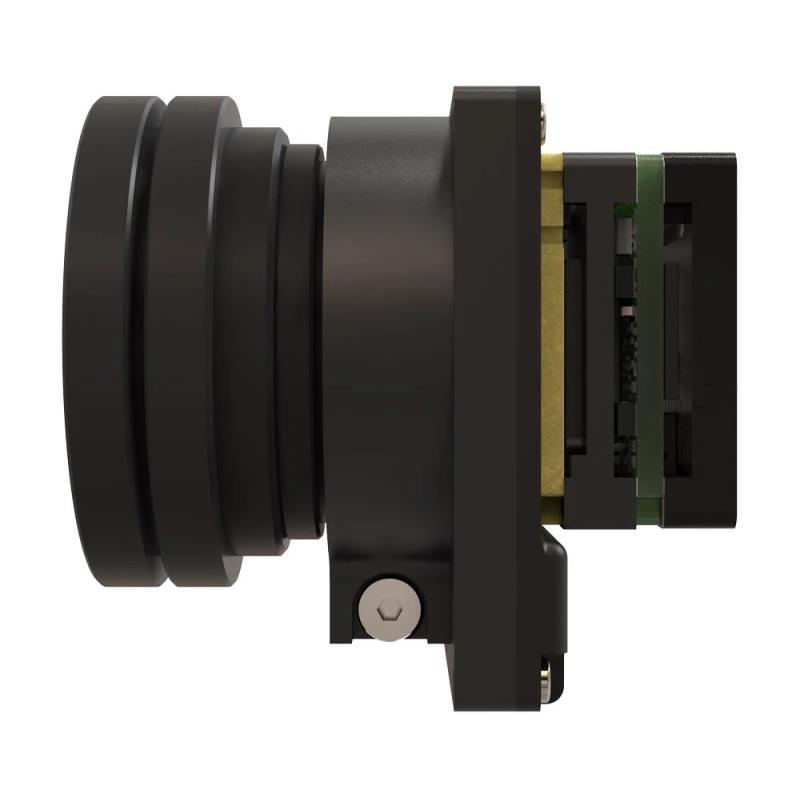

MicroCalibir - High-Performance Thermal Imaging in an Ultra-Compact Core.
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Teledyne DALSA - MicroCalibir
List Price
Your Discount
Your Price
€3,219.00
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Wavelength range | LWIR |
| Resolution (MP) | 0.3 |
| Frame rate (Hz) | 60 |
| Lens mount | M24 x 0.5 |
| Interface | MIPI CSI-2 |
| Interface configuration | MIPI CSI-2 |
| Sensor model | Teledyne DALSA |
| Manufacturer | Teledyne DALSA |
| Active sensor size (horizontal, mm) | 7.68 |
| Active sensor size (vertical, mm) | 5.76 |
| Bit depth | N/A |
| Certificates | REACH, RoHS, WEEE |
| Connector a: video | MIPI CSI-2 |
| Connector b: power | MIPI CSI-2 |
| Dimension (depth, mm) | 12.9 |
| Dimension (height, mm) | 21 |
| Dimension (width, mm) | 21 |
| Export regulations | If you export this item outside the EU you have to apply for an export licence according to EC term no. 428/2009 at your |
| Filter | no |
| Resolution Horizontal (Px) | 640 |
| Housing | OEM module |
| Note 1 | EFL (mm) 25 / FOV (°) 17.1 x 13.0 |
| Numbers of connectors (Video) | 1 |
| Operating temperature (°C) | -40 - 80 |
| Pixel size (µm) | 12 |
| Power consumption (W) | 1.2 |
| Power supply voltage (VDC) | 3.3 - 5 |
| Scan type | area |
| Sensor configuration | Single sensor |
| Sensor format | 1/2" |
| Sensor size diagonal (mm) | 9.6 |
| Sensor type | µ bolometer |
| Shutter type | N/A |
| Software CameraSuite | no |
| Software driver CVB | no |
| Storage temperature (°C) | -40 - 80 |
| Resolution Vertical (Px) | 480 |
| Weight (kg) | 0.020 |
- Ultra-compact: Only 21 × 21 mm in core format – ideal for space-constrained integrations
- High image quality: VGA and QVGA resolution with 12 µm pixels at up to 60 Hz
- Excellent sensitivity: NETD < 50 mK
- Flexible integration: USB 2.0, CSI-2/CSI-DSI and parallel interfaces
- Versatile optics: Lens options ranging from approximately 10° to 80° HFOV
- Integrated image enhancement: Smart noise reduction and contrast enhancement
- Customizable by design: Custom LUTs, overlays, external triggers and tailored versions available
- Professional-grade compliance: NDAA compliant
- Versatile applications: Optimized for UAVs, security, OEM products and mobile systems
