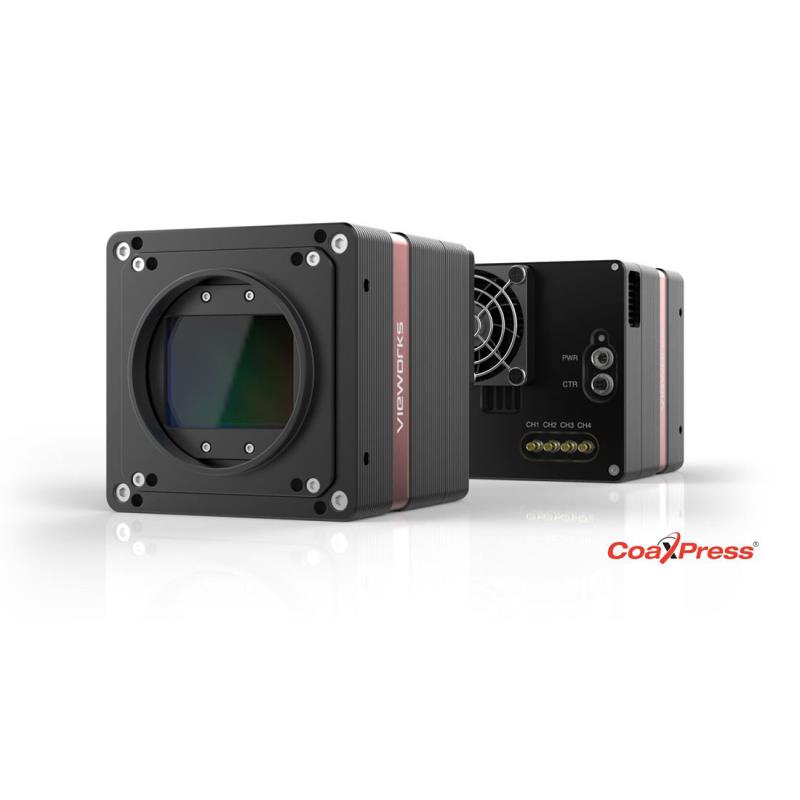

VIEWORKS VNP-604MX-M6H00-M72
SKU#:
48545
Pixel shift camera with thermoelectric Peltier cooling (TEC).
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Vieworks - VNP
List Price
Your Discount
Your Price
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Wavelength range | Monochrome, Visible |
| Resolution (MP) | 604 |
| Resolution Horizontal (Px) | 28384 |
| Resolution Vertical (Px) | 21280 |
| Frame rate (Hz) | 6.2 |
| Lens mount | M72 x 0.75 |
| Interface | CoaXPress |
| Sensor model | IMX411 |
| Sensor type | CMOS |
| Scan type | area |
| Pixel size (µm) | 3.76 |
| Sensor format | Large format |
| Sensor size diagonal (mm) | 66.7 |
| Shutter type | Rolling shutter |
| Dimension (width, mm) | 110 |
| Dimension (height, mm) | 110 |
| Dimension (depth, mm) | 134 |
| Housing | standard |
| Weight (kg) | 2.500 |
| Manufacturer | Vieworks |
| Active sensor size (horizontal, mm) | 53.36 |
| Active sensor size (vertical, mm) | 40.01 |
| Bit depth | 12 |
| Connector a: video | 4x DIN 1.0/2.3 |
| Connector b: power | Hirose 6-pin |
| Connector c: I/O | 4-pin connector |
| Flange focal distance | 19.52 |
| Interface configuration | 4x CXP-6 |
| Operating temperature (°C) | 0 - 40 |
| Output formats | Mono10, Mono12, Mono8 |
| Power consumption (W) | 31 |
| Power supply voltage (VDC) | 11 - 24 |
| Sensor configuration | Single sensor |
| Storage temperature (°C) | -40 - 70 |
- Sensor: Sony monochrome and color CMOS sensor
- Resolution: up to 604 megapixel
- Features: nano stage pixel shift mechanism, improved fill factor, flat field correction, field upgradable firmware, pixel defect correction, allows long time exposure for increased sensitivity
- Lens mount: M72, customized mounts available upon request
- Interface: CoaXPress
- Cooling: thermoelectric peltier cooling keeping temperature 20° C below ambient
