VIEWORKS VP-101MX-C9H00-M72
SKU#:
43383
High-performance camera with thermoelectric Peltier cooling (TEC)

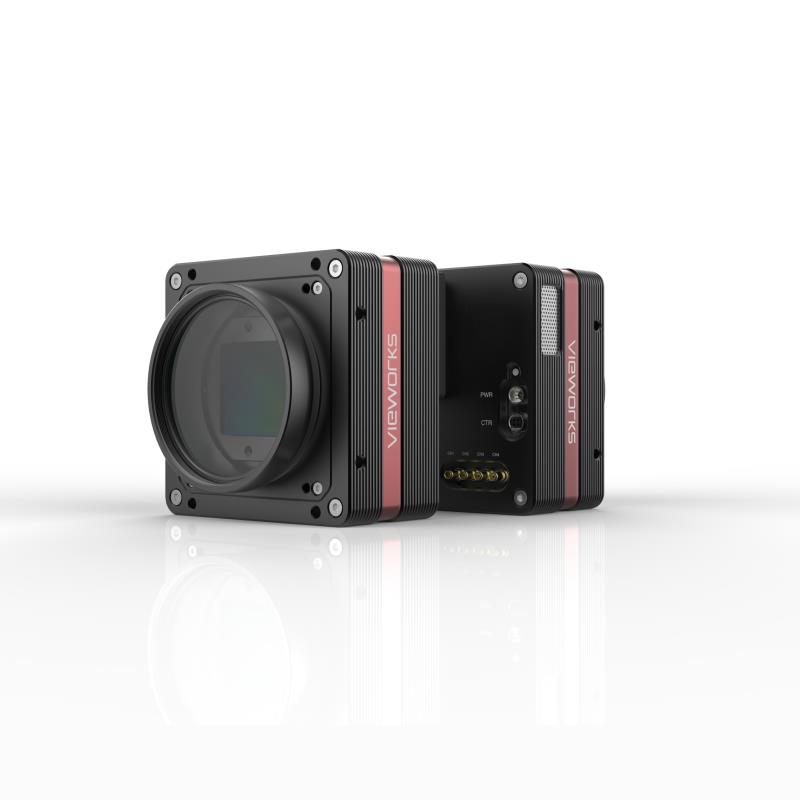

Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Vieworks - VP
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Active sensor size (horizontal, mm) | 43.8 |
| Active sensor size (vertical, mm) | 32.87 |
| Bit depth | 10, 12, 8 |
| Connector a: video | 4x DIN 1.0/2.3 |
| Connector b: power | Hirose 6-pin |
| Connector c: I/O | Hirose 4-pin |
| Dimension (depth, mm) | 88 |
| Dimension (height, mm) | 100 |
| Dimension (width, mm) | 100 |
| Frame rate (Hz) | 8.7 |
| Resolution Horizontal (Px) | 11656 |
| Housing | standard |
| Interface | CoaXPress |
| Interface configuration | 4x CXP-6 |
| Lens mount | M72 x 0.75 |
| Note 1 | thermoelectric peltier (TEC) cooled |
| Operating temperature (°C) | 0 - 40 |
| Pixel size (µm) | 3.76 |
| Power consumption (W) | 26 |
| Power supply voltage (VDC) | 11 - 24 |
| Resolution (MP) | 101.8 |
| Scan type | area |
| Sensor configuration | Single sensor |
| Sensor format | Large format |
| Sensor model | IMX411 |
| Sensor size diagonal (mm) | 55 |
| Sensor type | CMOS |
| Shutter type | Rolling shutter |
| Software CameraSuite | no |
| Software driver CVB | no |
| Wavelength range | Colour, Visible |
| Storage temperature (°C) | -40 - 70 |
| Resolution Vertical (Px) | 8742 |
| Weight (kg) | 1.100 |
- Sensor: from ON Semiconductor, Sony, GPixel and AMS CMOS sensors, monochrome or colour
- Bit depth: 8, 10 or 12 bit data output
- Features: user-defined LUT, flat field correction, field upgradeable firmware, defect pixel correction
- Lens: M72 and F-mount
- Interface: CameraLink, CoaXPress
- Cooling: thermoelectric Peltier cooling maintains temperature at 20°C below ambient, allowing long exposure times for increased sensitivity
