NEOUSYS NUVO-11XXX
SKU#:
62585

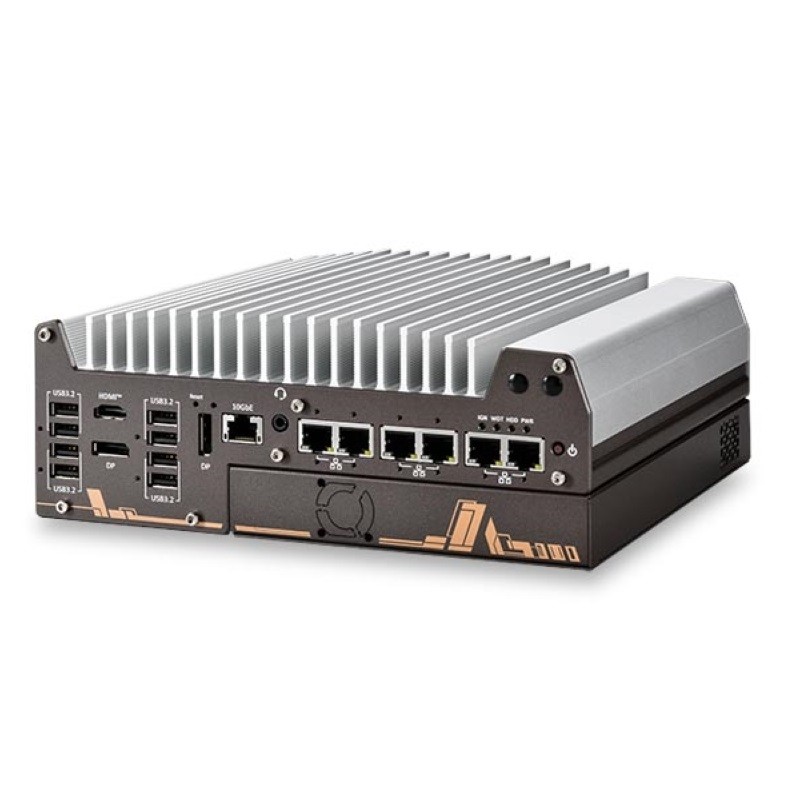

Intel® Core™ Ultra 200 Series Fanless Embedded Computer with 2.5GbE/ GbE, USB 3.2, 8-CH DIO, optional 10GbE and Expansion Cassette & MezIO® Interface
Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Neousys - Nuvo-11000
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Certificates | CE, FCC |
| Dimension (depth, mm) | 225 |
| Dimension (height, mm) | 90 |
| Dimension (width, mm) | 240 |
| Licensing type | N/A |
| Operating system | Several Systems |
| Operating temperature (°C) | -25 - 70 |
| PC: Graphics card | Intel Xe LPG |
| PC: Graphics card type | dedicated, integrated |
| PC: Graphics memory (GB) | 5 |
| PC: Internal Expansion Bus | mini PCIe |
| PC: I/O Interface | Audio, DisplayPort, Gigabit Ethernet, PoE+, RS-232, RS-422, RS-485, USB 2.0, USB 3.2 Gen1 Typ A, USB 3.2 Gen2 Typ A |
| PC: Proc. clock frequency basic (GHz) | 3.2 |
| PC: Proc. clock frequency max. (GHz) | 4.2 |
| PC: Processor core | 24 |
| PC: Processor type | Intel Core Ultra 5, Intel Core Ultra 7, Intel Core Ultra 9 |
| PC: Product type | compact |
| PC: Properties | Extreme-rugged |
| PC: RAM (GB) | 32 |
| PC: RAM max. (GB) | 96 |
| PC: RAM type | DDR5 |
| PC: Storage capacity (GB) | N/A |
| PC: Storage interface | M.2, mSATA full-size, SATA |
| Power supply voltage (VDC) | 8 - 48 |
| Weight (kg) | 3.580 |
- Processor: Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
- Memory: Up to 96 GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots)
- Interface: Up to 5 x 2.5GbE and 1x GigE ports with optional PoE+
- Up to 8x USB 3.2 Gen2 ports
- Storage: 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD
- 2x internal SATA port for 2.5” HDD/ SSD
- 4-CH isolated DI and 4-CH isolated DO
- 1x optional 10GBASE-T Ethernet
- Expansion Cassette for PCIe add-on card accommodation
- MezIO® interface for easy function expansion
