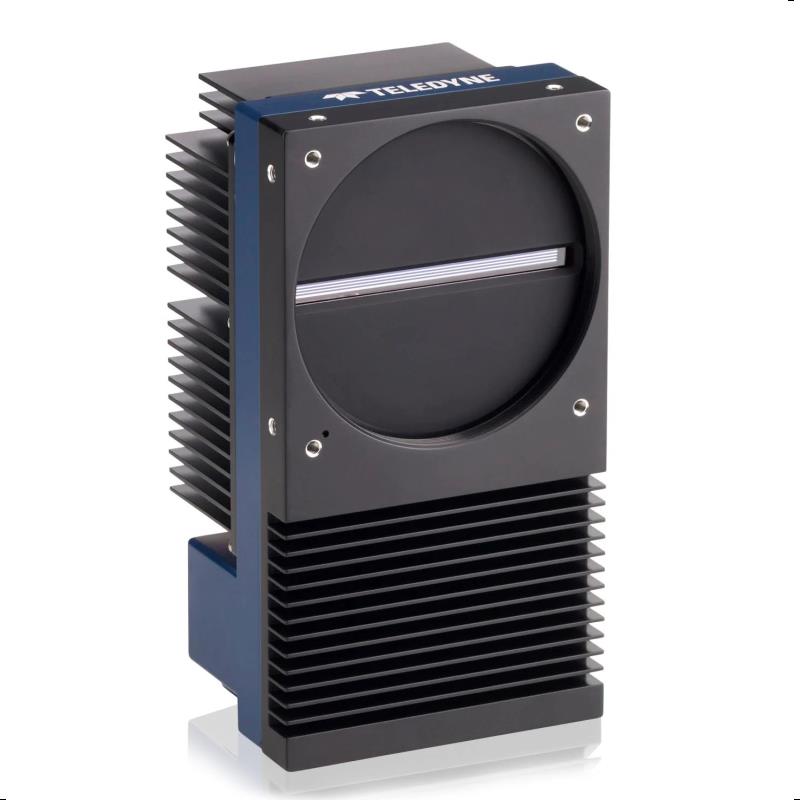

DALSA LINEA HS2-HM-08K100H-00-B
SKU#:
65123
Advanced high speed, high sensitivity TDI camera
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Teledyne DALSA - Linea HS2
List Price
Your Discount
Your Price
€16,309.00
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Backfocus Distance | 12 |
| Bit depth | 10, 8 |
| Dimension (depth, mm) | 73.5 |
| Dimension (height, mm) | 150 |
| Dimension (width, mm) | 76 |
| Resolution Horizontal (Px) | 8192 |
| Interface | CameraLink HS |
| Interface configuration | CLHS CX4 |
| Lens mount | M58 x 0.75 |
| Max. line freq. (kHz) | 1000 |
| Pixel size (µm) | 5 |
| Scan type | TDI |
| Sensor configuration | 128+128+32 Stage TDI |
| Sensor type | CMOS |
| Wavelength range | Monochrome, NIR, UV, VIS-SWIR, Visible |
| Weight (kg) | 0.940 |
- Highly sensitive CMOS TDI technology
- Available in monochrome 8K or 16K pixel resolution
- Up to 1 MHz line rate for ultra-high-speed imaging
- Low noise performance for clear, precise image capture
- Bidirectionality support for flexible inspection operation
- Robust Camera Link HS interface for high-speed data transfer
- CX4 connector for secure industrial connectivity
- Active Optical Cables for EMI immunity and reliable long-distance transmission
- Smart lens shading correction for uniform image quality
- Horizontal and vertical binning for enhanced flexibility and sensitivity
- Multi-array configurations for higher dynamic range or increased responsivity
- Multiple areas of interest for application-specific imaging optimization
- Look-up tables and pre-defined user configurations for simplified setup and operation
