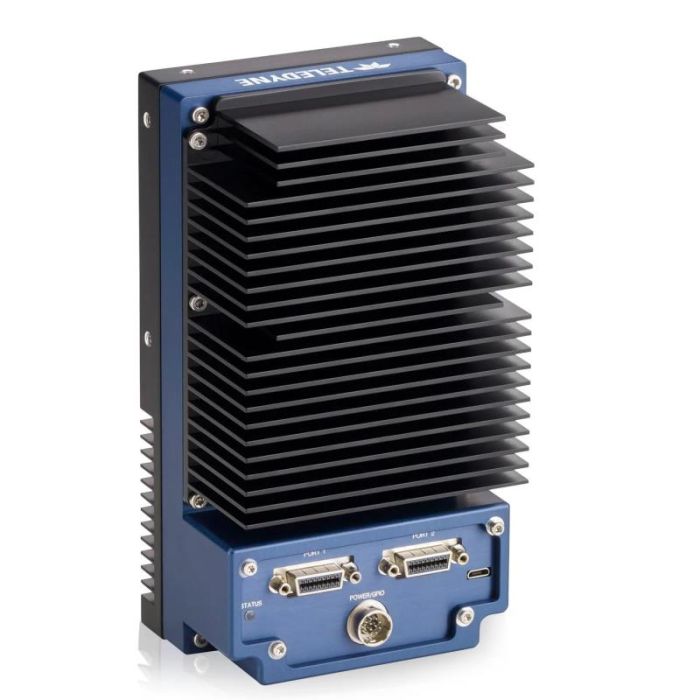

Teledyne DALSA - Linea HS2
The Teledyne DALSA Linea HS2 series combines highly sensitive CMOS TDI technology with ultra-high-speed performance for advanced line scan inspection. Available in monochrome 8K and 16K resolutions with line rates up to 1 MHz, it is designed to capture sharp, reliable images in demanding low-light and high-throughput environments. With powerful programmability, robust Camera Link HS connectivity, and flexible image optimization features, Linea HS2 is built for precise and efficient industrial inspection.
Key Features
- Highly sensitive CMOS TDI technology
- Available in monochrome 8K or 16K pixel resolution
- Up to 1 MHz line rate for ultra-high-speed imaging
- Low noise performance for clear, precise image capture
- Bidirectionality support for flexible inspection operation
- Robust Camera Link HS interface for high-speed data transfer
- CX4 connector for secure industrial connectivity
- Active Optical Cables for EMI immunity and reliable long-distance transmission
- Smart lens shading correction for uniform image quality
- Horizontal and vertical binning for enhanced flexibility and sensitivity
- Multi-array configurations for higher dynamic range or increased responsivity
- Multiple areas of interest for application-specific imaging optimization
- Look-up tables and pre-defined user configurations for simplified setup and operation
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Lens mount | Manufacturer | Max. line freq. (kHz) | Pixel size (µm) | Scan type | Sensor type | Wavelength range | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 77 | 180 | 97 | 16384 | CameraLink HS | M90 x 1 | Teledyne DALSA | 1000 | 5 | TDI | N/A | Monochrome; NIR; UV; VIS-NIR; Visible | 1.480 | |
| 73.5 | 150 | 76 | 8192 | CameraLink HS | M58 x 0.75 | Teledyne DALSA | 1000 | 5 | TDI | CMOS | Monochrome; NIR; UV; VIS-SWIR; Visible | 0.940 | |
| 77 | 180 | 97 | 16384 | CameraLink HS | M90 x 1 | Teledyne DALSA | 1000 | 5 | TDI | N/A | Monochrome; NIR; UV; VIS-NIR; Visible | 1.480 |
Why choose Teledyne DALSA - Linea HS2?
Superior Low Light Sensitivity
The Linea HS2 series uses highly sensitive CMOS TDI technology to deliver strong performance in low-light inspection conditions. This allows the system to capture clear, consistent images without relying on excessive illumination. Customers benefit from improved defect detection, reduced lighting demands, and more stable inspection results.
Extreme High Speed Performance
With line rates of up to 1 MHz, Linea HS2 is built for applications where every fraction of a second matters. It supports reliable imaging of fast-moving webs and materials without sacrificing image quality. Customers benefit from higher production throughput, faster inspection cycles, and reduced risk of missed defects.
Flexible Resolution Configuration Options
The series is available in monochrome 8K and 16K resolutions to match different application requirements. This flexibility makes it suitable for both detailed inspection tasks and broader high-speed imaging processes. Customers benefit from a better fit for their technical needs, optimized performance, and investment efficiency.
Reliable Long Distance Connectivity
Linea HS2 features a robust Camera Link HS interface with CX4 connectivity and Active Optical Cables for EMI immunity and dependable long-distance data transmission. Integrated error detection further enhances data integrity in challenging industrial environments. Customers benefit from stable system performance, fewer transmission issues, and more reliable operation across large installations.
Advanced Setup Optimization Tools
The camera series includes smart features such as lens shading correction, multiple areas of interest, test patterns, diagnostics, and pre-defined user configurations. These tools simplify setup, alignment, and ongoing optimization for a wide range of inspection tasks. Customers benefit from faster integration, easier operation, and reduced setup time on the production floor.
