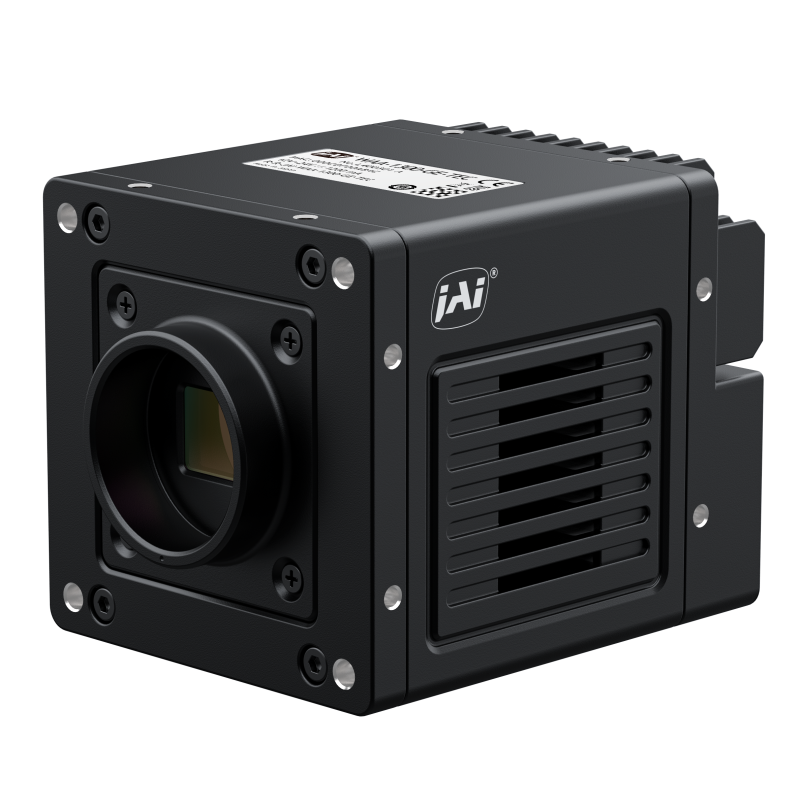

JAI WAA-1300-GE-TEC
SKU#:
64401
High-performance InGaAs SWIR area scan camera.
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
JAI - Wave WAA
List Price
Your Discount
Your Price
€12,500.00
Product not available in your country
Price & Availability on Request
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Wavelength range | SWIR |
| Resolution (MP) | 1.3 |
| Frame rate (Hz) | 90 |
| Lens mount | C-Mount |
| Interface | Gigabit Ethernet |
| Interface configuration | 1 GigE, GigE Vision |
| Sensor model | IMX990 |
| Manufacturer | JAI |
| Active sensor size (horizontal, mm) | 6.4 |
| Active sensor size (vertical, mm) | 7.68 |
| Bit depth | 10, 12, 14, 8 |
| Certificates | CE, FCC, RoHS |
| Connector a: video | RJ45 (H) |
| Connector b: power | Hirose 12-pin |
| Connector c: I/O | Hirose 12-pin |
| Dimension (depth, mm) | 80.5 |
| Dimension (height, mm) | 50 |
| Dimension (width, mm) | 50 |
| Export regulations | yes |
| Flange focal distance | 17.526 |
| Resolution Horizontal (Px) | 1280 |
| Housing | standard |
| Numbers of connectors (Video) | 1 |
| Operating temperature (°C) | -20 - 55 |
| Output formats | Mono10, Mono12, Mono14, Mono8 |
| Pixel size (µm) | 5 |
| Power consumption (W) | 6.5 |
| Power supply voltage (VDC) | 12 - 24 |
| Scan type | area |
| Sensor format | 1/2" |
| Sensor size diagonal (mm) | 8.2 |
| Sensor type | InGaAs |
| Shutter type | Global shutter |
| Software CameraSuite | yes |
| Storage temperature (°C) | -40 - 60 |
| Resolution Vertical (Px) | 1024 |
| Weight (kg) | 0.400 |
- Sensor: InGaAs (IMX990)
- Spectral range: 400-1700 nm (Visible + SWIR)
- Resolution: 1.3 MP (1280 × 1024)
- Optical format: 1/2"
- Pixel size: 5.0 × 5.0 µm
- Frame rate: Up to 90 fps
- Shutter type: Global shutter
- ROI: Yes
- Video output: Mono 8/10/12-bit
- Gain: 0–42 dB
- Cooling: Integrated single-stage TEC
- Interface: Gigabit Ethernet (1000BASE-T) (GigE Vision)
- Lens mount: C-Mount
- ISP functions: FFC, DPC, black level, gamma control, LUT, denoise
- Power consumption: 6.5 W
- Operating temperature: -20°C to +55°C
- Dimensions (H × W × L): 60.0 × 60.0 × 80.5 mm
- Weight: 400 g
