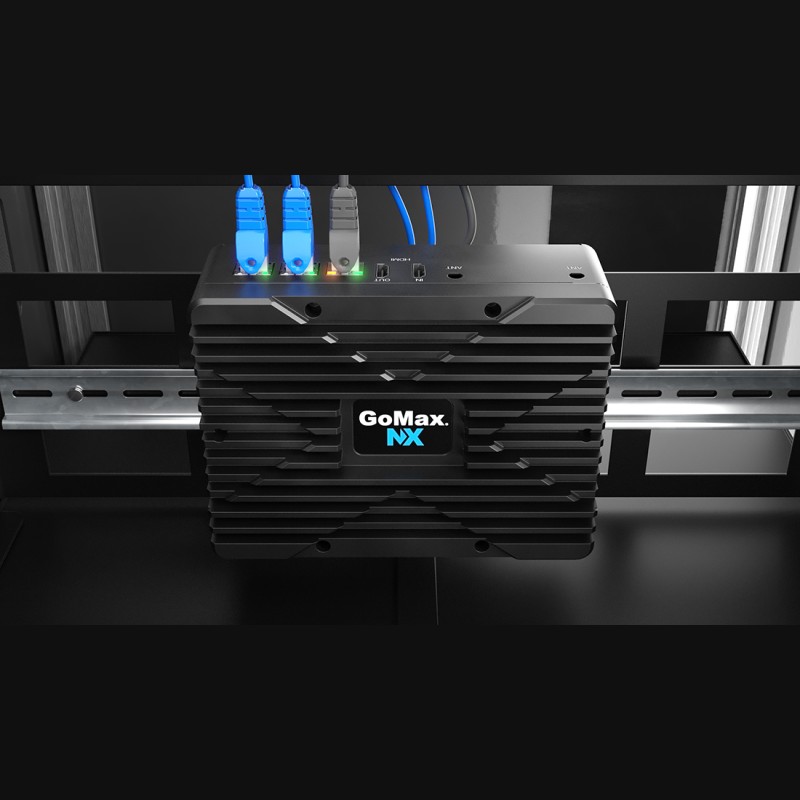

LMI GOMAX ORIN TYPE F
SKU#:
59651
Smart Vision Accelerator
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
LMI - GoMax
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Certificates | CE, RoHS |
| Dimension (depth, mm) | 75 |
| Dimension (height, mm) | 180 |
| Dimension (width, mm) | 136 |
| Licensing type | N/A |
| Operating system | Windows |
| Operating temperature (°C) | -15 - 60 |
| PC: I/O Interface | 5x Gigabit Ethernet |
| PC: Processor type | NVIDIA Jetson Orin NX |
| PC: Product type | ultra-compact |
| PC: RAM (GB) | 16 |
| PC: RAM max. (GB) | 16 |
| PC: RAM type | DDR5 |
| PC: Storage capacity (GB) | 128 |
| PC: Storage interface | N/A |
| Power supply voltage (VDC) | 12 - 24 |
| Weight (kg) | 2.500 |
- NVIDIA Module: Jetson ORIN NX & Jetson AGX Orin
- CPU: 8-core (Orin NX) & 12-core (AGX Orin) NVIDIA Arm® Cortex®-A78AE v8.2 64-bit
- GPU: NVIDIA Ampere architecture with up to 1792 384 CUDA Cores 56 Tensor cores
- Memory: 16 GB (Orin NX) & 32 GB (AGX Orin) LPDDR5
- IO ports: up to 5x Ethernet (GigE)
- Weight (kg): 2.9
- Operating Temperature: -15° - 55 °C
