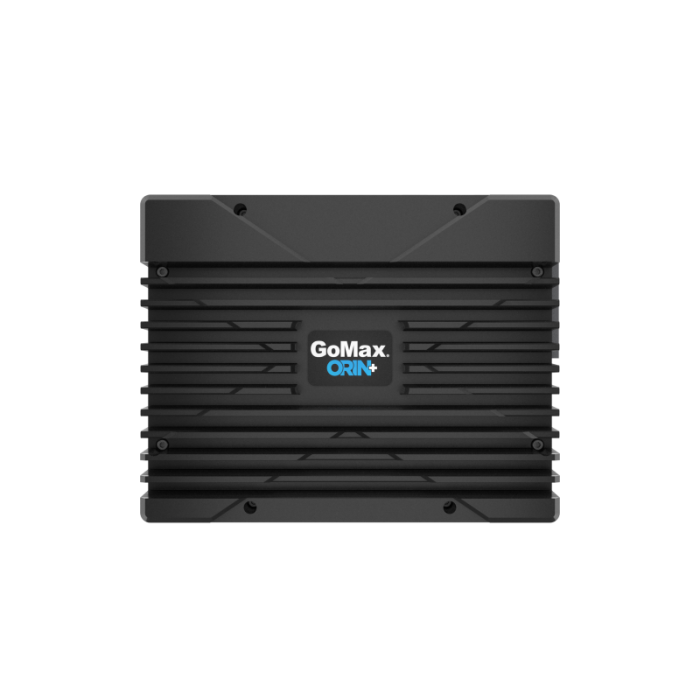

LMI - GoMax
The GoMax ORIN smart 3D vision accelerators provide high level of performance to support increasingly demanding machine vision inspection requirements.
Key Features
- NVIDIA Module: Jetson ORIN NX & Jetson AGX Orin
- CPU: 8-core (Orin NX) & 12-core (AGX Orin) NVIDIA Arm® Cortex®-A78AE v8.2 64-bit
- GPU: NVIDIA Ampere architecture with up to 1792 384 CUDA Cores 56 Tensor cores
- Memory: 16 GB (Orin NX) & 32 GB (AGX Orin) LPDDR5
- IO ports: up to 5x Ethernet (GigE)
- Weight (kg): 2.9
- Operating Temperature: -15° - 55 °C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | PC: Product type | PC: Processor type | PC: RAM (GB) | PC: I/O Interface | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| ultra-compact | NVIDIA Jetson Orin NX | 16 | 5x Gigabit Ethernet | LMI Technologies | 75 | 180 | 136 | 16 | 2.500 | |
| ultra-compact | NVIDIA Jetson AGX Orin | 32 | 4x Gigabit Ethernet | LMI Technologies | 74 | 210 | 164 | 32 | 2.900 |
Why choose LMI - GoMax?
Plug. Play. Accelerate.
The simple GoMax NX hardware solution connects to Gocator, allowing you to speed up any Gocator 3D smart sensor model with ease.
Huge data processing power without a PC
GoMax NX accelerates Gocator 3D sensors by taking over a portion of the sensor’s data processing, and PLC/robot communication—eliminating the need for a PC.
Embedded NVIDIA Jetson Xavier NX
GoMax NX provides massive computing power with its embedded NVIDIA Jetson Xavier NX module's GPU and 6 core NVIDIA Carmel ARM 64-bit processor - all in a compact, ruggedised case.
