NEOUSYS SEMIL-1714J
SKU#:
51869

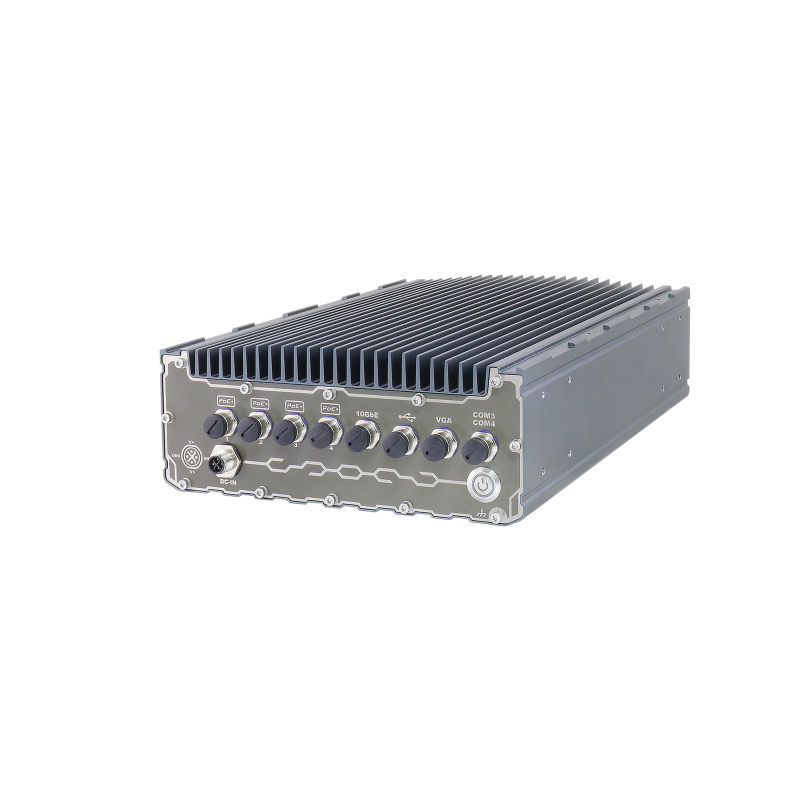

Half-rack rugged fanless and IP67 waterproof computer with M12 connectors
Note: Actual product may vary from image!
You can find downloads in the corresponding product series:
Neousys - SEMIL-1700
Contact us
Request prices
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Dimension (depth, mm) | 310 |
| Dimension (height, mm) | 90.5 |
| Dimension (width, mm) | 220 |
| Operating system | Several Systems |
| Operating temperature (°C) | -40 - 70 |
| PC: Graphics card type | integrated |
| PC: Internal Expansion Bus | mini PCIe |
| PC: I/O Interface | Gigabit Ethernet, PoE+, RS-232, USB 2.0, VGA |
| PC: Processor type | Intel Core i3, Intel Core i5, Intel Core i7, Intel Xeon |
| PC: Product type | compact |
| PC: Properties | Extreme-rugged, Uninterruptible power supply (UPS), Waterproof |
| PC: RAM (GB) | 64 |
| PC: RAM max. (GB) | 64 |
| PC: Storage capacity (GB) | N/A |
| PC: Storage interface | M.2, mSATA full-size, SATA |
| Power supply voltage (VDC) | 8 - 48 |
| Weight (kg) | 6.000 |
- Processor: Intel Xeon E or 9th/ 8th-Gen Core i7/ i5/ i3 CPU
- Memory: up to 64 GB
- Interface GigE: 8x Gigabit PoE+ (Power over Ethernet)
- Interface USB: 2x USB 2.0 (M12 A-coded); 1x USB 2.0 (internal)
- Storage: 2x Internal SATA port; 2x full-size mSATA port; 1x M.2 2280 M key socket (PCIe Gen3 x4)
- Display: 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
- Mounting: rack or wall-mount
- Housing: IP67 waterproof 2U 19" chassis
- Operating temperature: -40°C to 70 °C operation
- Miscellaneous: 2x 3-wires RS-232 ports COM1 & COM2; EN-50155, CE/FCC Class A, according to EN 55032 & EN 55024 certified
- Power: 8V to 48V DC input; built-in ignition power control
- Dimension: 220 mm (W) x 310 mm (D) x 90.5 mm (H)
- Weight: 5.8 - 6.2 kg
