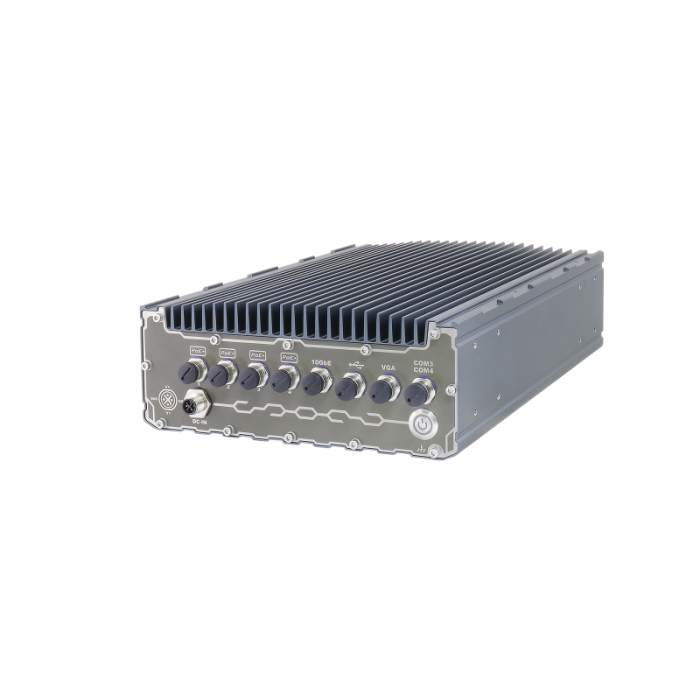

Neousys - SEMIL-1700
Half-rack rugged fanless and IP67 waterproof computer supporting Intel Xeon E or 9th/ 8th-Gen Core Processor with M12 connectors.
Key Features
- Processor: Intel Xeon E or 9th/ 8th-Gen Core i7/ i5/ i3 CPU
- Memory: up to 64 GB
- Interface GigE: 8x Gigabit PoE+ (Power over Ethernet)
- Interface USB: 2x USB 2.0 (M12 A-coded); 1x USB 2.0 (internal)
- Storage: 2x Internal SATA port; 2x full-size mSATA port; 1x M.2 2280 M key socket (PCIe Gen3 x4)
- Display: 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
- Mounting: rack or wall-mount
- Housing: IP67 waterproof 2U 19" chassis
- Operating temperature: -40°C to 70 °C operation
- Miscellaneous: 2x 3-wires RS-232 ports COM1 & COM2; EN-50155, CE/FCC Class A, according to EN 55032 & EN 55024 certified
- Power: 8V to 48V DC input; built-in ignition power control
- Dimension: 220 mm (W) x 310 mm (D) x 90.5 mm (H)
- Weight: 5.8 - 6.2 kg
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Manufacturer | PC: I/O Interface | PC: Processor type | PC: Product type | PC: RAM (GB) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 310 | 90.5 | 220 | Neousys | Gigabit Ethernet; PoE+; RS-232; USB 2.0; VGA | Intel Core i3; Intel Core i5; Intel Core i7; Intel Xeon | compact | 64 | 64 | 5.800 | |
| 310 | 90.5 | 220 | Neousys | Gigabit Ethernet; PoE+; RS-232; USB 2.0; VGA | Intel Core i3; Intel Core i5; Intel Core i7; Intel Xeon | compact | 64 | 64 | 6.000 |
Why choose Neousys - SEMIL-1700?
IP67-rated waterproof and dustproof design
IP67 waterproof capability is achieved via specialised moulded o-rings and enclosed in stainless steel and aluminium chassis for corrosion resistance to counteract moisture and salinity.

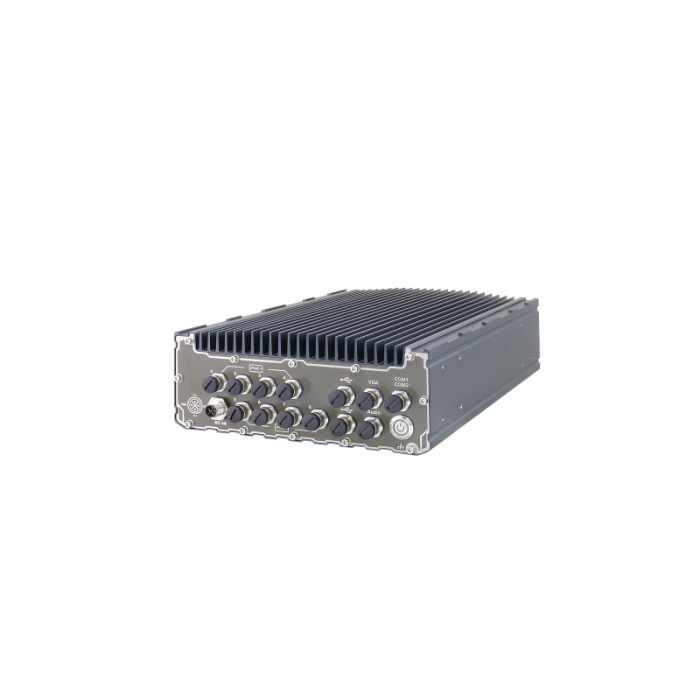

M12 connectors to offer rugged cable connectivity
In addition to the ultra-ruggedised enclosure, the system is equipped with reliable and robust M12 connectors. The M12 cable solutions are extremely cost-effective over military standard connectors and yet much stronger and reliable than most commercial cable connections on the market today.
Wide-range DC input with built-in ignition power control
The 1700 provides a 8~48V wide-range DC input. Along with built-in ignition control, it is feasible to deploy it on a vehicle and directly power it via the car's power system while complying with EN 50155 and MIL-STD-810G.
Patented 2U half-rack 19" chassis for rack or wall-mount
SEMIL systems feature other characteristics that make them the ideal computer platform to be deployed into volatile conditions, such as being standard 2U 19" half-rack/ full-rack form factors; having unique brackets for flexible rack or wall-mount.
Built-in SuperCAP UPS to prevent data loss
SEMIL-1711J is equipped with Neousys' patented SuperCAP-based UPS containing 2500 watt-second stored energy to sustain and safely shut down the system during unforeseen power outages. It is the perfect solution for data protection and applications in unstable power environments.
Patented SuperCAP UPS ensures the system continues to operate in an event of an unforeseen power outage and effectively prevents data loss while featuring greater reliability and longevity over traditional battery UPS.
