Allied Vision - Goldeye

The compact cameras with their active thermo electric cooling sensors provide low-noise image quality, even with very long exposure times. Comprehensive I/O control and a particularly robust housing predestine the Goldeye series for use in industrial applications.

Key Features

  • Frame rate: up to 344 fps
  • Responsitivity: 0.4 – 2.2 µm (depending on model)
  • Features: gain/offset correction (NUC/non-uniformity correction) for each pixel, defect pixel correction (DPC), fixed pattern noise correction (FPNC)
  • Lens mount: C-mount, F-Mount, M42
  • Acquisition mode: continuous or triggered
  • Interface: GigE Vision or CameraLink
  • Software: compatible with Common Vision Blox
  • Protection: high damage threshold against intense illumination
  • Miscellaneous: available with Peltier cooling TEC1 or TEC2, additional external cooling (COOL), without cooling (TECLESS)

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
To
Product Name Wavelength range Resolution (MP) Resolution Horizontal (Px) Resolution Vertical (Px) Frame rate (Hz) Lens mount Interface Sensor model Sensor type Scan type Pixel size (µm) Sensor format Sensor size diagonal (mm) Shutter type Dimension (width, mm) Dimension (height, mm) Dimension (depth, mm) Housing Weight (kg) Manufacturer
AV GOLDEYE CL-008 SWIR TEC1 F-MOUNT
 SWIR 0.1 320 256 344 Nikon F-Mount CameraLink InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.370 Allied Vision
AV GOLDEYE G-032 SWIR COOL TEC2 C-MNT
 SWIR 0.3 636 508 100 C-Mount Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.810 Allied Vision
AV GOLDEYE G-032 SWIR COOL TEC2 F-MNT
 SWIR 0.3 636 508 100 Nikon F-Mount Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.860 Allied Vision
AV GOLDEYE G-032 SWIR COOL TEC2 M42
 SWIR 0.3 636 508 100 M42 x 1 Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.830 Allied Vision
AV GOLDEYE G-032 SWIR TEC1 C-MOUNT
 SWIR 0.3 636 508 100 C-Mount Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.360 Allied Vision
AV GOLDEYE G-032 SWIR TEC1 F-MOUNT
 SWIR 0.3 636 508 100 Nikon F-Mount Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.410 Allied Vision
AV GOLDEYE G-032 SWIR TEC1 M42-MOUNT
 SWIR 0.3 636 508 100 M42 x 1 Gigabit Ethernet InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.390 Allied Vision
AV GOLDEYE G-033 SWIR TEC1 C-MOUNT
 SWIR 0.3 640 512 301 C-Mount Gigabit Ethernet InGaAs InGaAs area 15 1" 12.29 Global shutter/Prog scan 80 80 90 TEC1 0.810 Allied Vision
AV GOLDEYE G-033 SWIR TEC1 F-MOUNT
 SWIR 0.3 640 512 301 Nikon F-Mount Gigabit Ethernet InGaAs InGaAs area 15 1" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.410 Allied Vision
AV GOLDEYE G-033 SWIR TEC1 M42-MOUNT
 SWIR 0.3 640 512 301 M42 x 1 Gigabit Ethernet InGaAs InGaAs area 15 1" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.390 Allied Vision
AV GOLDEYE G-008 SWIR TEC1 C-MOUNT
 SWIR 0.1 320 256 344 C-Mount Gigabit Ethernet InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.340 Allied Vision
AV GOLDEYE G-008 SWIR TEC1 M42-MOUNT
 SWIR 0.1 320 256 344 M42 x 1 Gigabit Ethernet InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.360 Allied Vision
AV GOLDEYE CL-008 SWIR TEC1 C-MOUNT
 SWIR 0.1 320 256 344 C-Mount CameraLink InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.320 Allied Vision
AV GOLDEYE G-008 SWIR TEC1 F-MOUNT
 SWIR 0.1 320 256 344 Nikon F-Mount Gigabit Ethernet InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.390 Allied Vision
AV GOLDEYE CL-033 SWIR TEC1 C-MOUNT
 SWIR 0.3 640 512 301 C-Mount CameraLink InGaAs InGaAs area 15 4/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.350 Allied Vision
AV GOLDEYE CL-008 SWIR TEC1 M42-MOUNT
 SWIR 0.1 320 256 344 M42 x 1 CameraLink InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 0.340 Allied Vision
AV GOLDEYE CL-032 SWIR TEC1 C-MOUNT
 SWIR 0.3 636 508 100 C-Mount CameraLink InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.340 Allied Vision
AV GOLDEYE CL-032 SWIR TEC1 F-MOUNT
 SWIR 0.3 636 508 100 Nikon F-Mount CameraLink InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.400 Allied Vision
AV GOLDEYE CL-032 SWIR TEC1 M42-MOUNT
 SWIR 0.3 636 508 100 M42 x 1 CameraLink InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 55 55 78 TEC1 0.360 Allied Vision
AV GOLDEYE CL-033 SWIR TEC1 F-MOUNT
 SWIR 0.3 640 512 301 Nikon F-Mount CameraLink InGaAs InGaAs area 15 N/A 12.29 Global shutter/Prog scan 55 55 78 TEC1 N/A Allied Vision
AV GOLDEYE CL-033 SWIR TEC1 M42-MOUNT
 SWIR 0.3 640 512 301 M42 x 1 CameraLink InGaAs InGaAs area 15 N/A 12.29 Global shutter/Prog scan 55 55 78 TEC1 N/A Allied Vision
AV GOLDEYE CL-032 SWIR COOLTEC2 C-MNT
 SWIR 0.3 636 508 100 C-Mount CameraLink InGaAs InGaAs area 25 4/3" 20.35 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.810 Allied Vision
AV GOLDEYE G-033 SWIR TECLESS C-MOUNT
 SWIR 0.3 640 512 301 C-Mount Gigabit Ethernet InGaAs InGaAs area 15 1" 12.29 Global shutter/Prog scan 55 55 78 TecLess 0.370 Allied Vision
AV GOLDEYE CL-033 SWIR TECLESS C-MOUNT
 SWIR 0.3 640 512 301 C-Mount CameraLink InGaAs InGaAs area 15 1" 12.29 Global shutter/Prog scan 55 55 78 TecLess 0.350 Allied Vision
AV GOLDEYE G-008 SWIR COOL TEC1 C-MNT
 SWIR 0.1 320 256 344 C-Mount Gigabit Ethernet InGaAs InGaAs area 30 1" 12.29 Global shutter/Prog scan 55 55 78 TEC1 with Fan 0.340 Allied Vision
AV GOLDEYE CL-008 SWIR COOL TEC1 C-MO
 SWIR 0.1 320 256 344 C-Mount CameraLink InGaAs InGaAs area 30 2/3" 12.29 Global shutter/Prog scan 55 55 78 TEC1 with Fan 0.760 Allied Vision
AV GOLDEYE G-034 SWIR TEC1 C-MOUNT
 SWIR 0.3 636 508 303 C-Mount Gigabit Ethernet InGaAs InGaAs area 15 Large format 12.21 Global shutter/Prog scan 55 55 78 TEC1 0.370 Allied Vision

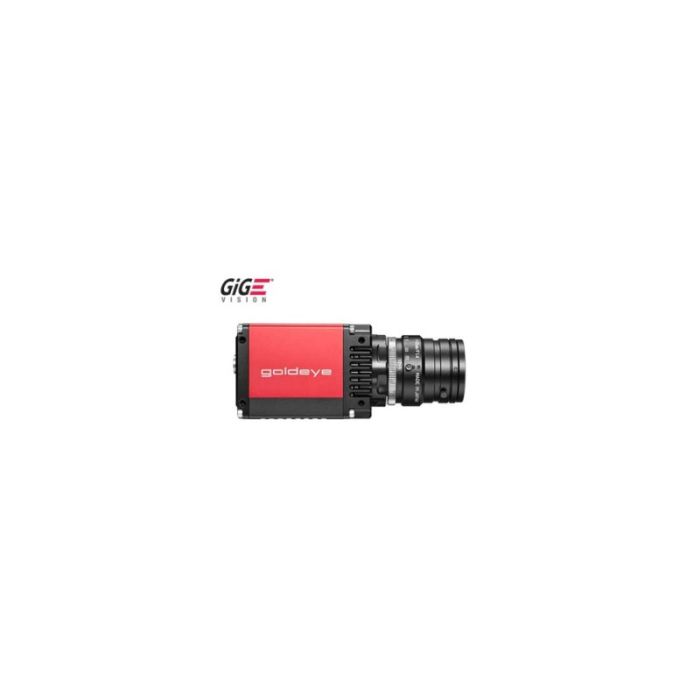

AV GOLDEYE G-130 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 1.3 1280 1024 94 C-Mount Gigabit Ethernet IMX990 InGaAs area 5 1/2" 8.2 Global shutter 55 55 78 TEC1 0.345 Allied Vision
AV GOLDEYE G-030 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 0.3 656 520 234 C-Mount Gigabit Ethernet IMX991 InGaAs area 5 1/4" 4.2 Global shutter 55 55 78 TEC1 0.345 Allied Vision
AV GOLDEYE CL-130 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 1.3 1280 1024 94 C-Mount CameraLink IMX990 InGaAs area 5 1/2" 8.2 Global shutter 55 55 78 TEC1 0.345 Allied Vision
AV GOLDEYE CL-034 SWIR TEC1 C-MOUNT
 SWIR 0.3 636 508 303 C-Mount CameraLink InGaAs InGaAs area 15 Large format 12.21 Global shutter/Prog scan 55 55 78 TEC1 0.350 Allied Vision
AV GOLDEYE CL-030 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 0.3 656 520 234 C-Mount CameraLink IMX991 InGaAs area 5 1/4" 4.2 Global shutter 55 55 78 TEC1 0.345 Allied Vision
AV GOLDEYE G-008 XSWIR 1.9 TEC2 C-MNT
 SWIR; XSWIR 1.9 0.1 320 256 344 C-Mount Gigabit Ethernet InGaAs InGaAs area 30 Large format 12.29 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.740 Allied Vision
AV GOLDEYE G-008 XSWIR 2.2 TEC2 C-MNT
 SWIR; XSWIR 2.2 0.1 320 256 344 C-Mount Gigabit Ethernet InGaAs InGaAs area 30 Large format 12.29 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.740 Allied Vision
AV GOLDEYE CL-008 XSWIR 1.9 TEC2 C-MNT
 SWIR; XSWIR 1.9 0.1 320 256 344 C-Mount CameraLink InGaAs InGaAs area 30 Large format 12.29 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.740 Allied Vision
AV GOLDEYE CL-008 XSWIR 2.2 TEC2 C-MNT
 SWIR; XSWIR 2.2 0.1 320 256 344 C-Mount CameraLink InGaAs InGaAs area 30 Large format 12.29 Global shutter/Prog scan 80 80 90 TEC2 with Fan 0.740 Allied Vision
AV GOLDEYE PRO G5-530 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 5.3 2592 2056 115 C-Mount Gigabit Ethernet IMX992 InGaAs area 3.45 1/1.4" 11.41 Global shutter 55 55 78 TEC1 0.350 Allied Vision
AV GOLDEYE PRO G5-320 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 3.2 2080 1544 159 C-Mount Gigabit Ethernet IMX993 InGaAs area 3.45 1/1.8" 8.9 Global shutter 55 55 78 TEC1 0.350 Allied Vision
AV GOLDEYE PRO G5-130 VSWIR TEC1
 Monochrome; SWIR; VIS-SWIR 1.3 1280 1024 135 C-Mount Gigabit Ethernet IMX990 InGaAs area 5 1/2" 8.2 Global shutter 55 55 78 TEC1 0.345 Allied Vision

Why choose Allied Vision - Goldeye?

Excellent image quality

The Goldeye has been designed to produce an excellent image with very low noise by incorporating 14-bit image processing and numerous onboard image correction features. Coupled with the thermoelectric cooling system this achieves outstanding, low-noise image quality that is constant, independent of the ambient temperature.

Wide coverage of wavelengths

The camera can be supplied with a 0.9 μm to 1.7 μm sensitivity range or an optional VisNIR version from 0.4 μm to 1.7 μm for extended flexibility.

Detection of material properties invisible to the human eye

Operating in the sensitive in the NIR/SWIR spectral range from 900 nm – 1700 nm, these cameras open up numerous possibilities for machine vision solutions. With their simple integration design, they are the perfect choice for industrial and scientific applications beyond the visible spectrum.

Cooling and connection options to fit various applications

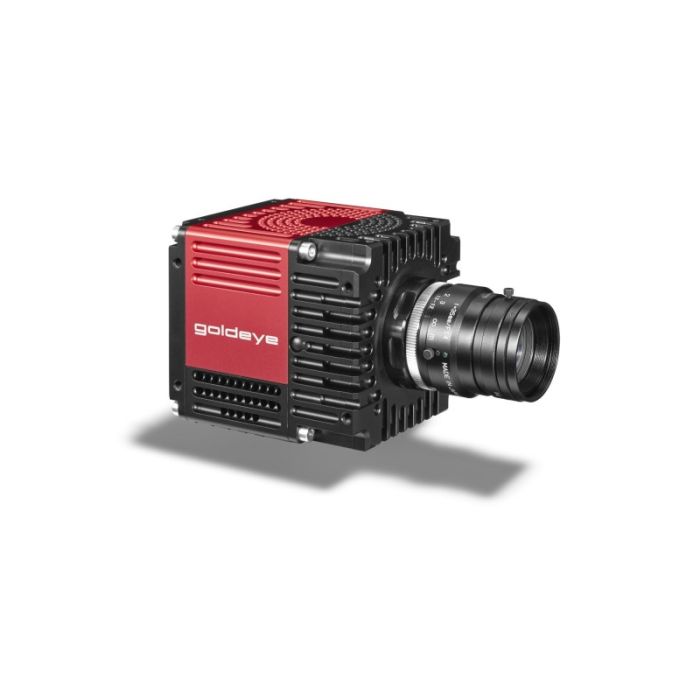

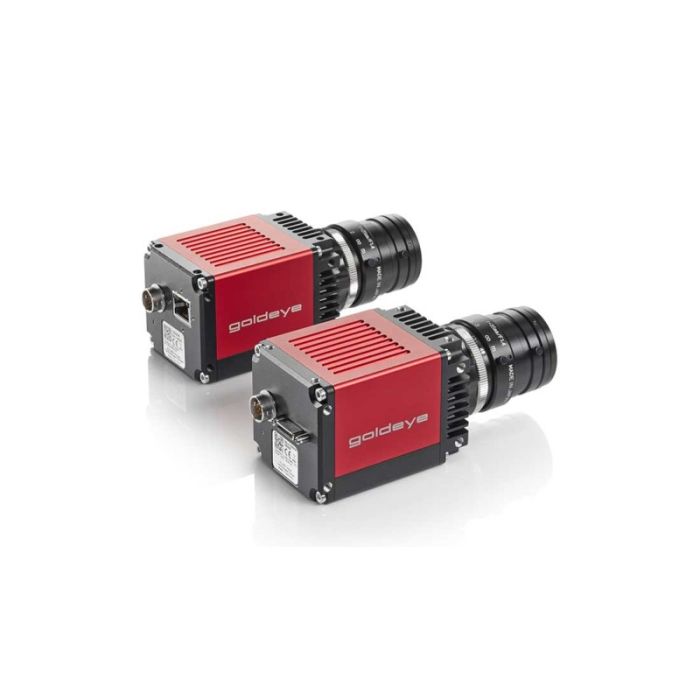

The Goldeye is available with two industrial connection options - GigE Vision or CameraLink. Depending on the application requirements, there is a choice between two variants of Peltier cooling (TEC1 or TEC2) as well as a model with additional external cooling function (COOL). The COOL version uses a nitrogen-filled cooling chamber that allows the sensor temperature to cool down until 60 Kelvin. The increased sensor cooling suppresses dark current noise in particular and thus enables very long exposure times of up to 10 seconds for SWIR cameras. This property is particularly relevant in demanding inspection applications in both scientific and industrial environments.
