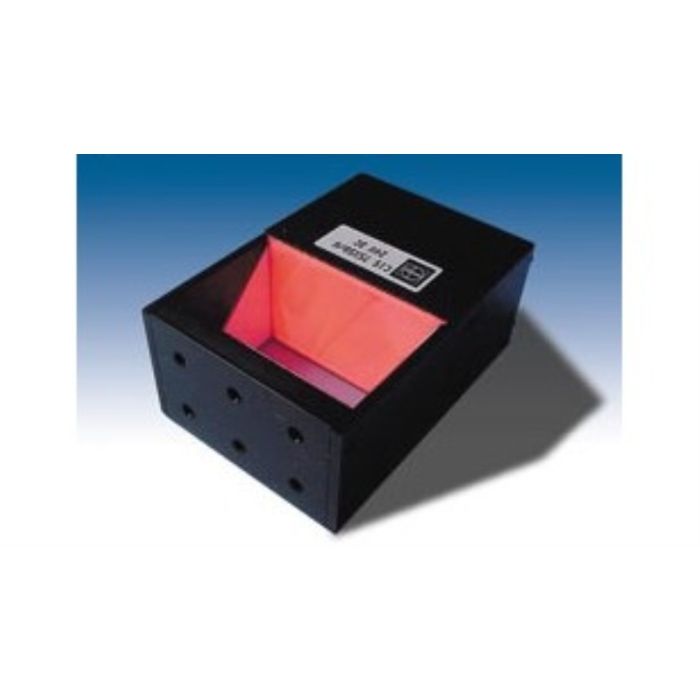

CIS - FiberOptic
Compact, robust LED modules with extremely uniform illumination, available in red, infrared or white, as well as in a range of housing sizes.
Key Features
- Colour: white, red or IR (850 nm)
- Power supply: 24 VDC
- Operating temperature: 0 °C to 40 °C
- Dimensions: 25 x 25 mm, 50 x 50 mm, 75 x 70 mm, 75 x 75 mm, 100 x 100 mm or 150 x 150 mm
- Protection: glass protection against dust, passive cooling (25 x 25 models), IP67 rated connector
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| frontlight | coaxial illumination | diffused | Red | 100 | N/A | N/A | no | not specified | N/A | 630 | 100 | N/A | N/A | N/A | FiberOptic | 1.300 | |
| frontlight | coaxial illumination | diffused | White | 100 | N/A | N/A | no | not specified | N/A | N/A | 100 | N/A | N/A | N/A | FiberOptic | 1.300 | |
| frontlight | coaxial illumination | diffused | Red | 150 | N/A | N/A | no | not specified | N/A | 630 | 150 | N/A | N/A | N/A | FiberOptic | N/A | |
| frontlight | coaxial illumination | diffused | White | 150 | N/A | N/A | no | not specified | N/A | N/A | 150 | N/A | N/A | N/A | FiberOptic | N/A | |
| frontlight | coaxial illumination | diffused | Red | 25 | N/A | N/A | no | not specified | N/A | 630 | 25 | N/A | N/A | N/A | FiberOptic | 0.070 | |
| frontlight | coaxial illumination | diffused | White | 25 | N/A | N/A | no | not specified | N/A | N/A | 25 | N/A | N/A | N/A | FiberOptic | 0.070 | |
| frontlight | coaxial illumination | diffused | IR | 50 | N/A | N/A | no | not specified | N/A | 875 | 50 | N/A | N/A | N/A | FiberOptic | 0.330 | |
| frontlight | coaxial illumination | diffused | Red | 50 | N/A | N/A | no | not specified | N/A | 630 | 50 | N/A | N/A | N/A | FiberOptic | 0.330 | |
| frontlight | coaxial illumination | diffused | White | 50 | N/A | N/A | no | not specified | N/A | N/A | 50 | N/A | N/A | N/A | FiberOptic | 0.330 | |
| frontlight | coaxial illumination | diffused | Red | 75 | N/A | N/A | no | not specified | N/A | 630 | 75 | N/A | N/A | N/A | FiberOptic | 0.720 | |
| frontlight | coaxial illumination | diffused | White | 75 | N/A | N/A | no | not specified | N/A | N/A | 75 | N/A | N/A | N/A | FiberOptic | 0.720 | |
| frontlight | coaxial illumination | diffused | IR | 100 | N/A | N/A | no | not specified | N/A | 875 | 100 | N/A | N/A | N/A | FiberOptic | 1.300 | |
| frontlight | coaxial illumination | diffused | IR | 150 | N/A | N/A | no | not specified | N/A | 875 | 150 | N/A | N/A | N/A | FiberOptic | N/A | |
| frontlight | coaxial illumination | diffused | IR | 75 | N/A | N/A | no | not specified | N/A | 875 | 75 | N/A | N/A | N/A | FiberOptic | 0.720 | |
| frontlight | coaxial illumination | diffused | IR | 25 | N/A | N/A | no | not specified | N/A | 875 | 25 | N/A | N/A | N/A | FiberOptic | 0.070 | |
| frontlight | coaxial illumination | diffused | Red | 50 | N/A | N/A | no | not specified | DSUB9 | 1670 | 50 | N/A | N/A | N/A | FiberOptic | 0.330 |
Why choose CIS - FiberOptic?
High-end coaxial design
Placed between the camera and the object, the CIS light provides a very homogeneous light as the rays are parallel to the optical axis between the camera and the object.
Available in a variety of sizes and colours
The illumination is available in a number of different sizes to cover a wide range of applications. They can be supplied in the following sizes: 25 x 25 mm, 50 x 50 mm, 75 x 50 mm, 75 x 75 mm, 100 x 100 mm and 150 x 150 mm. CIS lights are available in several wavelengths: white (6500 K), red (623 nm) and IR (875 nm).
Extra protection
The device features an additional protective glass on the top to prevent dust on the half-mirror from blurring the image. The 25 x 25 mm model is passively cooled to minimise moving parts, making it more suitable for harsh and dirty conditions.
