Fujinon - HF-XA-5M
5 megapixel lenses with 2/3" to 1.1" image circles
Key Features
- Sensor: 2/3" to 1.1"
- Pixel size: 3.45 µm
- Focal length: 6 mm to 50 mm
- Aperture: F1.6 to 2.4
- Minimum object distance (MOD): 100 mm to 200 mm
- Filter thread: M25.5 x 0.5 to M37.5 x 0.5
- Camera mount: C-mount
- Miscellaneous: Focus and aperture fixable
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

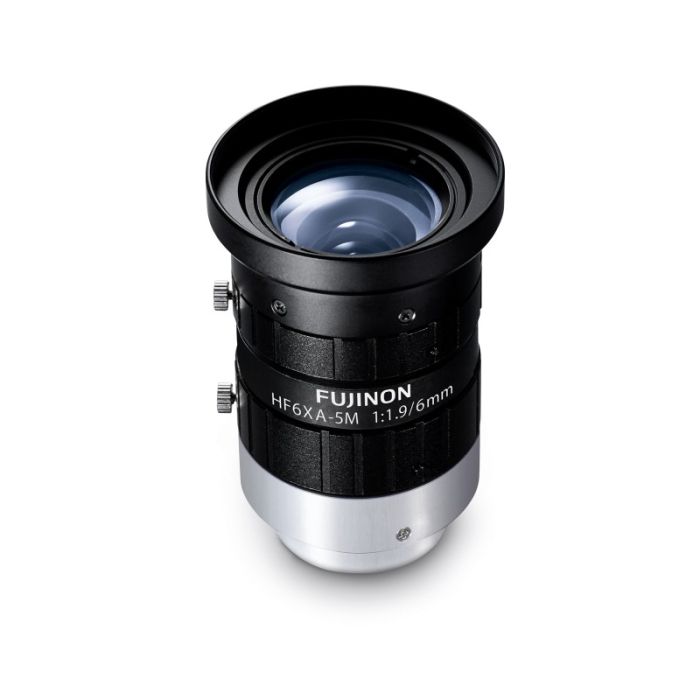

| F 1.9 | C-Mount | M37.5 x 0.5 | 6 | N/A | FUJINON | 3.45 µm | 100 | 3.45 | 2/3" | 11 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 8 | N/A | FUJINON | 3.45 µm | 100 | 3.45 | 2/3" | 11 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 12 | N/A | FUJINON | 3.45 µm | 100 | 3.45 | 2/3" | 11 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 16 | N/A | FUJINON | 3.45 µm | 100 | 3.45 | 1/1.2" | 13.3 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 25 | N/A | FUJINON | 3.45 µm | 100 | 3.45 | 1/1.2" | 13.3 | Visible | |
| F 1.9 | C-Mount | M25.5 x 0.5 | 35 | N/A | FUJINON | 3.45 µm | 200 | 3.45 | 1/1.2" | 13.3 | Visible | |

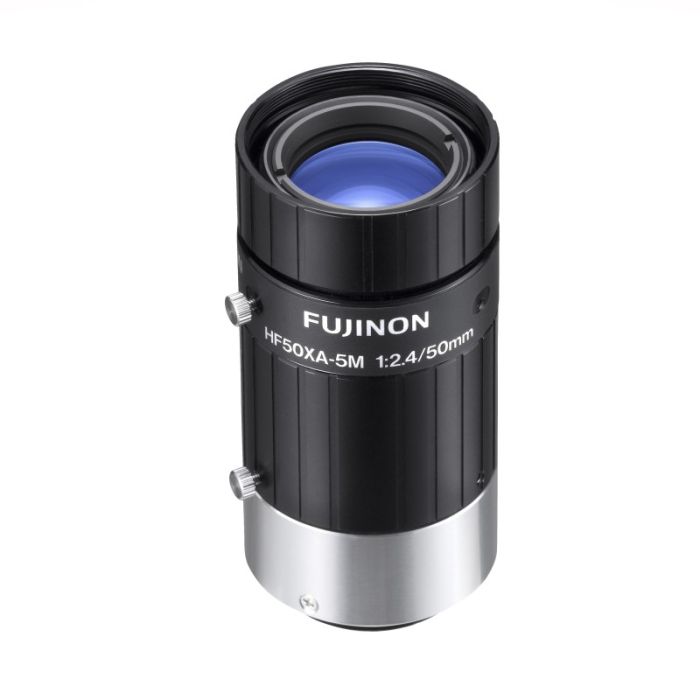

| F 2.4 | C-Mount | M30.5 x 0.5 | 50 | N/A | FUJINON | 3.45 µm | 200 | 3.45 | 1.1" | 17.6 | Visible |
Why choose Fujinon - HF-XA-5M?
Large image circle up to 1,1"
The 1.1" image circle enables numerous camera combinations with current sensors from Sony, AMS or Gpixel.
High resolution of the smallest details
Thanks to their excellent MTF, the lenses are well suited for camera sensors with a pixel size of only 3.45 µm.
Constant high resolution at various working distances
The lenses maintain high image quality from the centre to the edges and deliver crisp images even at varying working distances and aperture settings.
Anti Shock & Vibration Design
Fujifilm's Anti Shock & Vibration technology enables reliable operation in harsh conditions.
