JAI - Apex

Experience unparalleled image quality with 3 chip color cameras with compact RGB prism for C-mount lenses, with the choice of GigE Vision, USB3 Vision, or CameraLink interface

Key Features

  • Resolution: 3x 1,6 3x 3,2 or 3x 5,1 megapixel
  • Bit depth: 24 or 30 bit RGB output with integrated RGB to HSI, XYZ, sRGB and Adobe RGB colour space conversions
  • Features: ROI, chromatic shading reduction, pre-set or variable partial scan, vertical binning for higher sensitivity and frame rate, knee function, white balance, pre-set shutter, individually programmable shutter/exposure/gain for R, G, and B
  • Lens mount: C-mount
  • I/O: edge pre-select and pulse width control trigger modes
  • Interface: GigE Vision, USB3 Vision, CameraLink and CoaxPress
  • Protection: excellent shock and vibration resistance

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

To
To
To
To
To
Product Name Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Frame rate (Hz) Resolution Horizontal (Px) Housing Interface Interface configuration Lens mount Manufacturer Pixel size (µm) Resolution (MP) Scan type Sensor format Sensor model Sensor size diagonal (mm) Sensor type Shutter type Wavelength range Weight (kg)

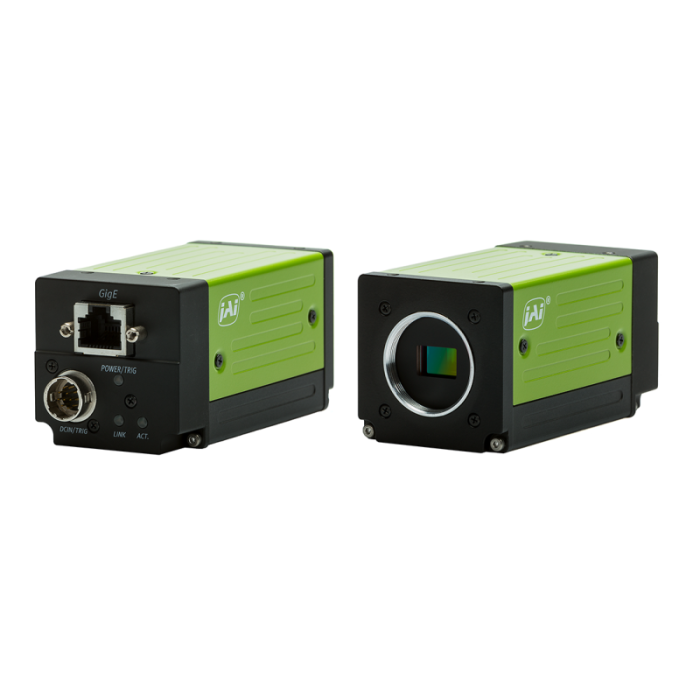

JAI AP-3200T-PGE
 84 44 44 12 2065 standard Gigabit Ethernet 1 GigE; GigE Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.200
JAI AP-3200T-USB
 74 44 44 38 2065 standard USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.180
JAI AP-1600T-USB
 74 44 44 78 1456 standard USB USB3 Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-PMCL
 74 44 44 55 2065 standard CameraLink CameraLink Base C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.170
JAI AP-1600T-PGE
 84 44 44 24 1456 standard Gigabit Ethernet 1 GigE; GigE Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.200
JAI AP-1600T-PMCL
 74 44 44 126 1456 standard CameraLink CameraLink Base C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.170
JAI AP-1600T-USB-NF
 74 44 44 78 1456 medical white housing USB USB3 Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter/Prog scan Colour; Visible 0.170
JAI AP-1600T-USB-NF-LS
 74 44 44 78 1456 standard USB USB3 Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-USB-NF
 74 44 44 38 2065 medical white housing USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter/Prog scan Colour; Visible 0.170
JAI AP-3200T-USB-LS
 74 44 44 38 2064 medical white housing USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-USB-NF-LS
 74 44 44 38 2064 standard USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-10GE
 86.5 62 62 12 2065 standard Gigabit Ethernet 10 GigE; GigE Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter/Prog scan Colour; Visible 0.270
JAI AP-1600T-USB-LSX
 74 44 44 78 1456 medical white housing USB USB3 Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.170
JAI AP-1600T-USB-NF-LSX
 74 44 44 78 1456 medical white housing USB USB3 Vision C-Mount JAI 3.45 1.6 area 1/2.9" IMX273 6.27 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-USB-LSX
 74 44 44 38 2065 medical white housing USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.170
JAI AP-3200T-USB-NF-LSX
 74 44 44 38 2065 medical white housing USB USB3 Vision C-Mount JAI 3.45 3.2 area 1/1.8" IMX265 8.89 CMOS Global shutter Colour; Visible 0.170
JAI AP-5100T-5GE
 74 54 54 32 2472 standard Gigabit Ethernet 5 GigE; GigE Vision C-Mount JAI 2.74 5.1 area N/A IMX548 8.82 N/A Global shutter Colour N/A
JAI AP-5100T-MCL
 74 54 54 55 2472 standard CameraLink CameraLink Base; CameraLink Full; CameraLink Medium C-Mount JAI 2.74 5.1 area N/A IMX548 8.82 CMOS Global shutter Colour N/A
JAI AP-5100T-CXPA
 74 54 54 75 2472 standard CoaXPress 1x CXP-12; 1x CXP-3; 1x CXP-6 C-Mount JAI 2.74 5.1 area N/A IMX548 8.82 CMOS Global shutter Colour N/A
