Schneider-Kreuznach - JADE
Ultra-high resolution lens series for 25 MP cameras with a chip size of 1.2" and optimised for Sony Pregius S - Generation 4 image sensors
Key Features
- Maximum image size: 1.2"
- Focal length: 12, 16, 25, 35, 50 mm
- Lens mount: C-mount
- Resolution: 25 Megapixel
- Miscellaneous: Fixing screws for focus and aperture
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 2.8 - F 16 | C-Mount | M30.5 x 0.5 | 25 | 0.200 | Schneider Kreuznach | 2.7 µm | 246 | 20 | 1.2" | 21.4 | VIS-NIR | |

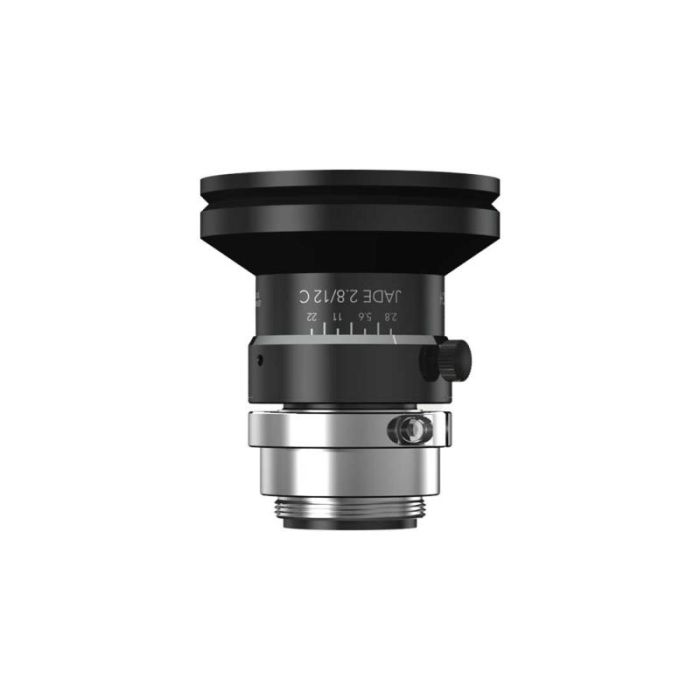

| F 2.8 | C-Mount | M62 x 0.75 | 12 | 0.050 | Schneider Kreuznach | 2.7 µm | 250 | 24.5 | 1.2" | 21.4 | VIS-NIR | |
| F 2.8 | C-Mount | M37 x 0.75 | 16 | 0.100 | Schneider Kreuznach | 2.4 µm | 150 | 24.5 | 1.2" | 21.4 | VIS-NIR | |
| F 2.8 | C-Mount | M30.5 x 0.5 | 35 | 0.200 | Schneider Kreuznach | 2.7 µm | 175 | 24.5 | 1.2" | 21.4 | VIS-NIR | |
| F 2.8 | C-Mount | M30.5 x 0.5 | 50 | 0.200 | Schneider Kreuznach | 2.7 µm | 270 | 24.5 | 1.2" | 21.4 | VIS-NIR |
Why choose Schneider-Kreuznach - JADE?
Large image circle to match with high-resolution cameras
The large image circle of 19.3 mm allows a perfect match with even the largest 25 MP Sony Pregius S image sensor up to 1.2".
High transmission even in SWIR
The lenses are well colour corrected and offer the Schneider-Kreuznach 400-1000 nm broadband anti-reflection coating. This makes them suitable not only for visible light but also for near-infrared applications.
Very low vignetting
All lenses come with an adjustable locking iris fully opened at F/2.8 and show remarkable high relative illumination towards the sensor edges, even at F/2.8. They connect to the camera with a standard C-mount with locking focus adjustment.
