Schneider-Kreuznach - TOPAZ
High-resolution lens for longer working distances.
Key Features
- Sensor size: up to 1.2"
- Resolution: 12 megapixel
- Pixel pitch: up to 2.5 microns
- Lens mount: C-mount
- Filter thread: M30.5x0.5, M82x0.75, M62x0.75
- MOD: 51-610 mm
- Miscellaneous: various focal lengths available
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

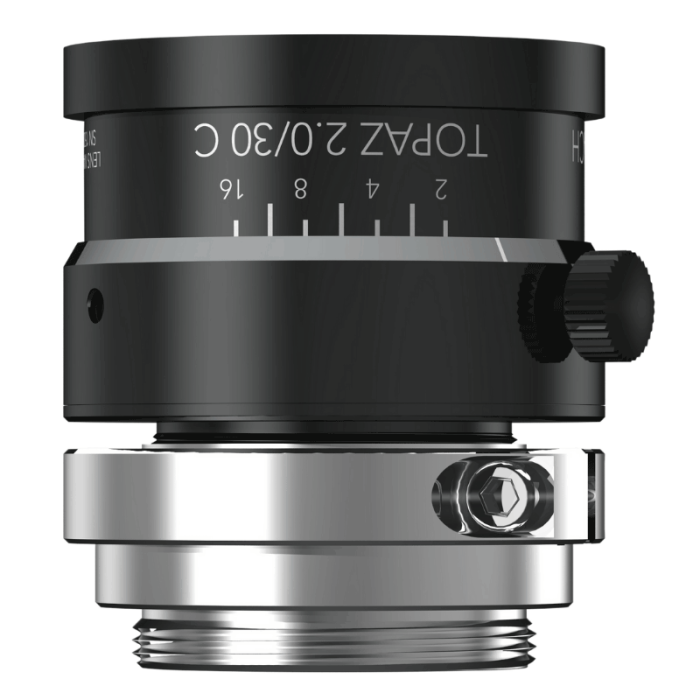

| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 30 | 40.5 | N/A | Schneider Kreuznach | 4.1 µm | 295 | N/A | 21.4 | VIS-NIR | |
| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 38 | 48 | N/A | Schneider Kreuznach | 4.1 µm | 500 | N/A | 21.4 | VIS-NIR | |
| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 50 | 56.6 | N/A | Schneider Kreuznach | 4.1 µm | 505 | N/A | 21.4 | VIS-NIR | |

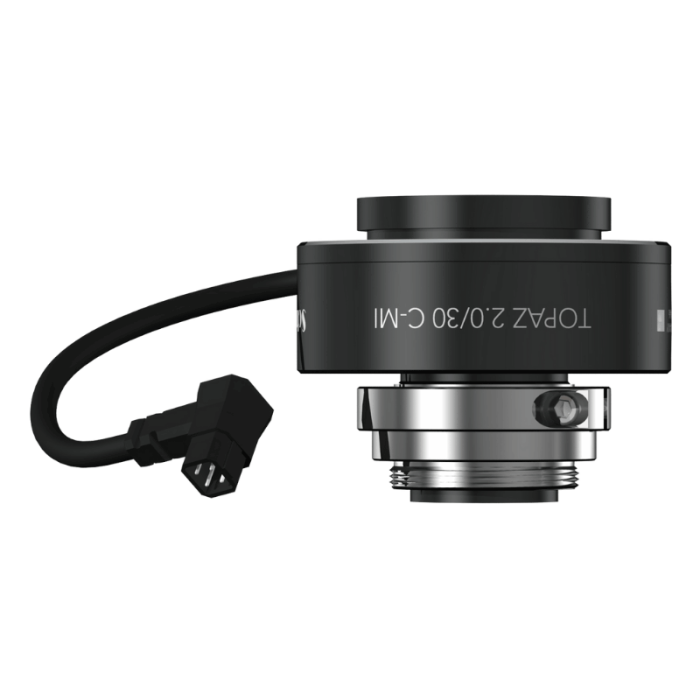

| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 30 | 40.5 | N/A | Schneider Kreuznach | N/A | 295 | N/A | 21.4 | VIS-NIR | |

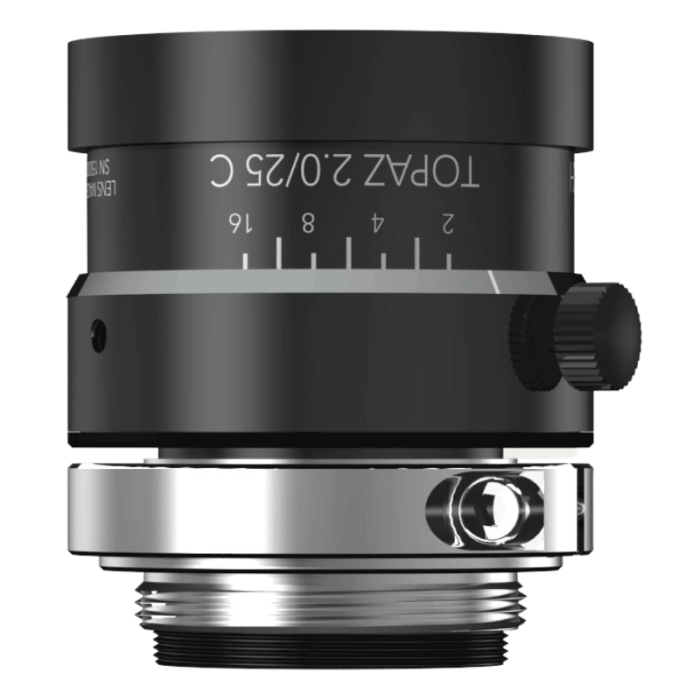

| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 25 | 40.2 | N/A | Schneider Kreuznach | 4.1 µm | 237 | N/A | 21.4 | VIS-NIR | |
| F 2.4 | C-Mount | M82 x 0.75 | 6.5 | 50.2 | N/A | Schneider Kreuznach | 4.1 µm | 51 | 4.0; N/A | 17.6 | VIS-NIR | |

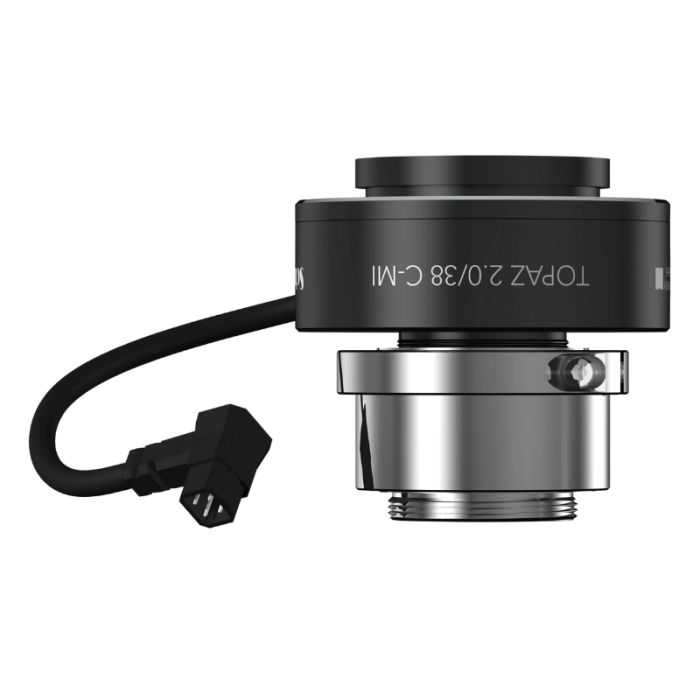

| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 38 | 48 | N/A | Schneider Kreuznach | N/A | 374 | N/A | 21.4 | VIS-NIR | |
| F 2.4 - F 16 | C-Mount | M82 x 0.75 | 6.5 | 50.2 | N/A | Schneider Kreuznach | N/A | 51 | N/A | 17.6 | VIS-NIR | |

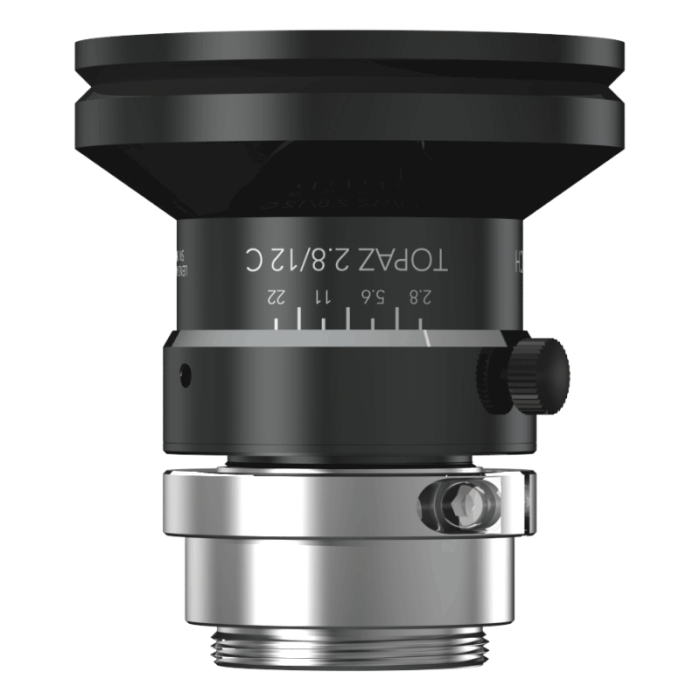

| F 2.8 - F 22 | C-Mount | M62 x 0.75 | 12 | 58 | N/A | Schneider Kreuznach | 4.1 µm | 10 | N/A | 17.6 | VIS-NIR | |
| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 25 | 40.2 | N/A | Schneider Kreuznach | N/A | 237 | N/A | 21.4 | VIS-NIR | |
| F 2 - F 16 | C-Mount | M30.5 x 0.5 | 50 | 56.6 | N/A | Schneider Kreuznach | N/A | 505 | N/A | 21.4 | VIS-NIR |
