Schneider-Kreuznach - TURQUOISE
High-resolution 1" C-mount lenses with special broadband AR coating for use in VIS and NIR range (400 nm - 1000 nm)
Key Features
- Maximum image circle: 16 mm
- Spectral range: 400 nm to 1000 nm (VIS and NIR)
- Focal length: 10 mm, 16 mm, 70 mm
- Initial aperture: F1.8 – F2.2
- Filter thread: M62 x 0.75 (10 mm focal length), M30.5 x 0.5 (16 mm focal length), M40.5 x 0.5 (70 mm focal length)
- Interface: C-mount

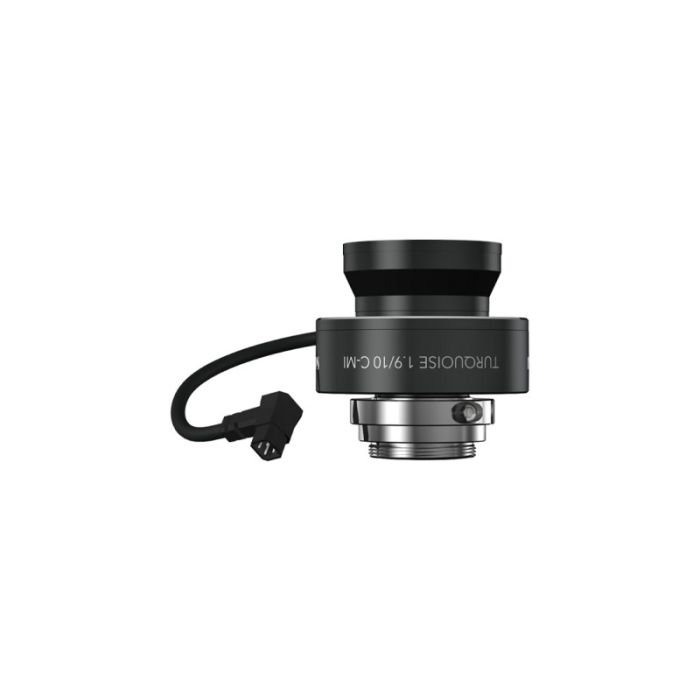

- Miscellaneous: Ruggedised version and motorised iris available
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.8 | C-Mount | M30.5 x 0.5 | 16 | N/A | Schneider Kreuznach | 5.5 µm | 28 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR | |
| F 1.9 | C-Mount | M62 x 0.75 | 10 | N/A | Schneider Kreuznach | 4.1 µm | 89 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR | |
| F 1.9 | C-Mount | M62 x 0.75 | 10 | N/A | Schneider Kreuznach | 3.5 µm | 2 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR | |
| F 1.8 | C-Mount | M30.5 x 0.5 | 16 | N/A | Schneider Kreuznach | 3.5 µm | 20 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR | |
| F 1.8 | C-Mount | M30.5 x 0.5 | 16 | N/A | Schneider Kreuznach | 3.5 µm | 20 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR | |
| F 1.9 | C-Mount | M62 x 0.75 | 10 | N/A | Schneider Kreuznach | 3.5 µm | 2 | 3.0 - 5.0 | 1" | 15.8 | VIS-NIR |
Why choose Schneider-Kreuznach - TURQUOISE?
Ideally suited for demanding applications

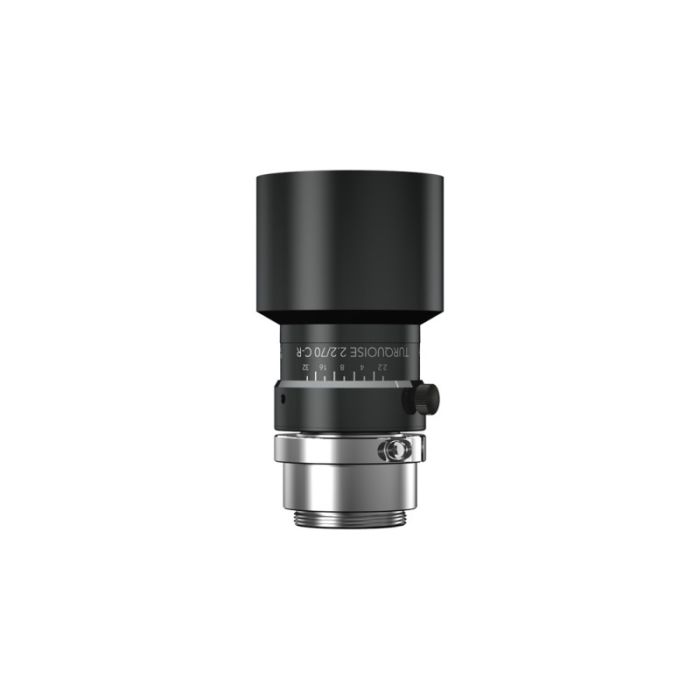

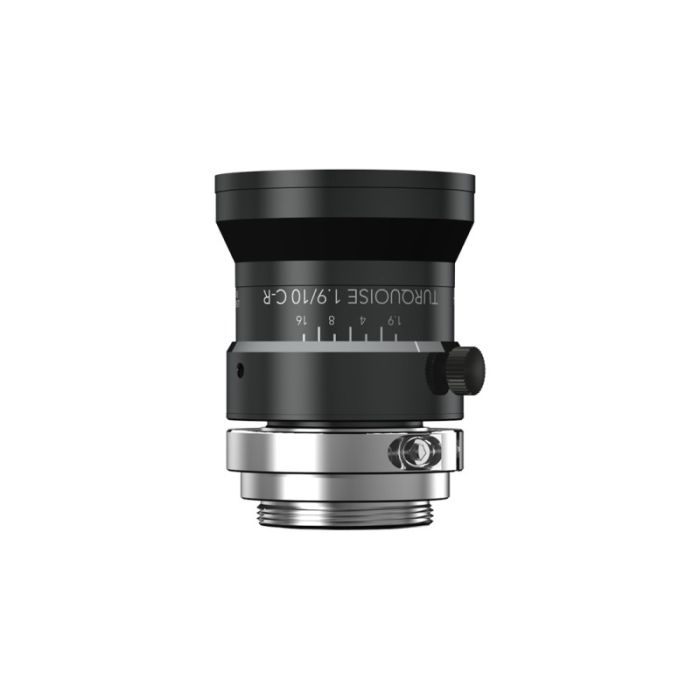

The Schneider-Kreuznach TURQUOISE high-resolution lenses are compact and robust and therefore ideally suited for demanding imaging applications. For extremely harsh environments, we recommend the extra ruggedised version.
Suited for the visible and NIR range
With their special broadband AR coating, the TURQUOISE lenses can be used either in the visible (400 to 700 nm) or in the NIR (700 to 1000 nm) range.
